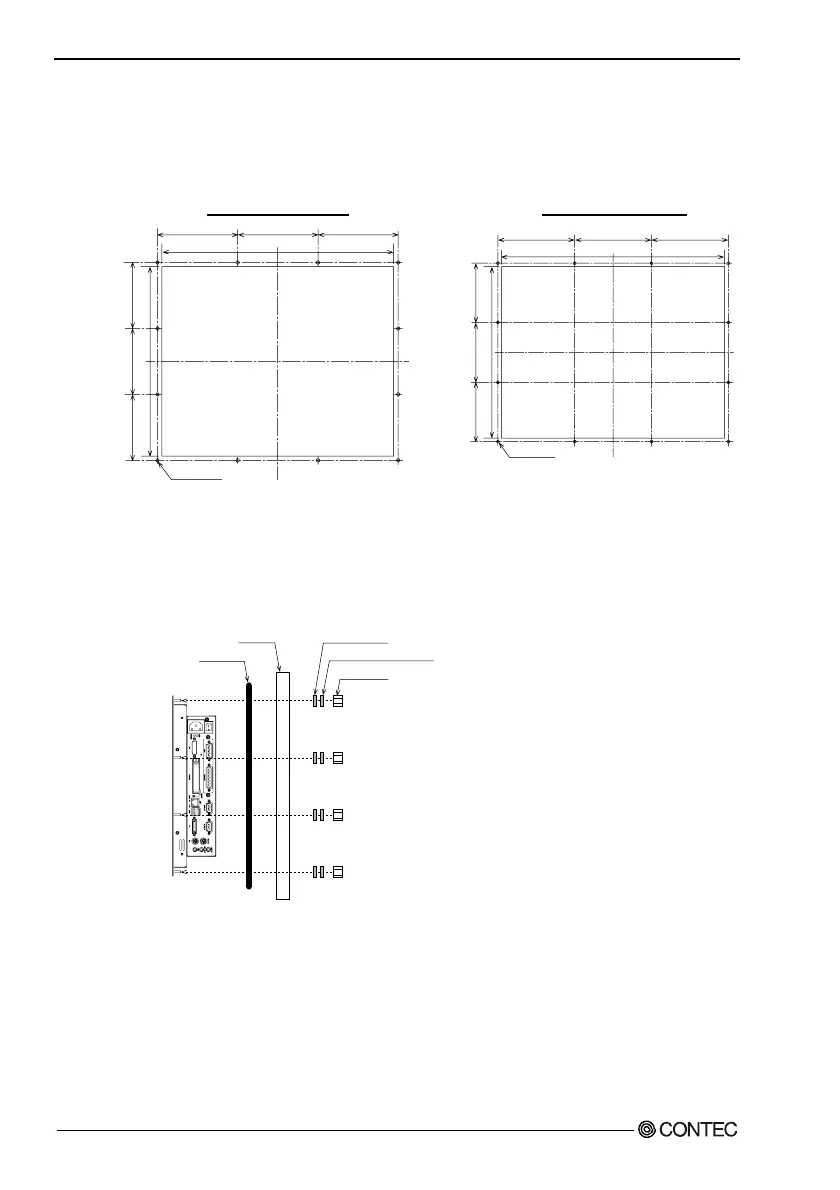

3. Hardware Setup
Installation Procedure
(1) Cut a panel in the following dimensions for installing the main
unit.
[mm]
119 119 119
344
9898
98
281
12
-
φ5
IPC-PT/L630S(PCI)C, CP
137
398
107 106
306
12
-
φ5
137 137
106
IPC-PT/H630X(PCI)C, CP
Figure 3.10. Panel Opening Dimensions
(2) Insert the supplied gasket between the panel and display and
fasten them together with M4 nuts as shown below.
Gasket
Panel
M4 washer
M4 spring washer
M4 nut
Figure 3.11. Assembling Method
28
User’s Manual
