5. Each Component Function
Keyboard Interface
The PANECON-PC is equipped with a keyboard connector named
KB (MINI-DIN 6P).

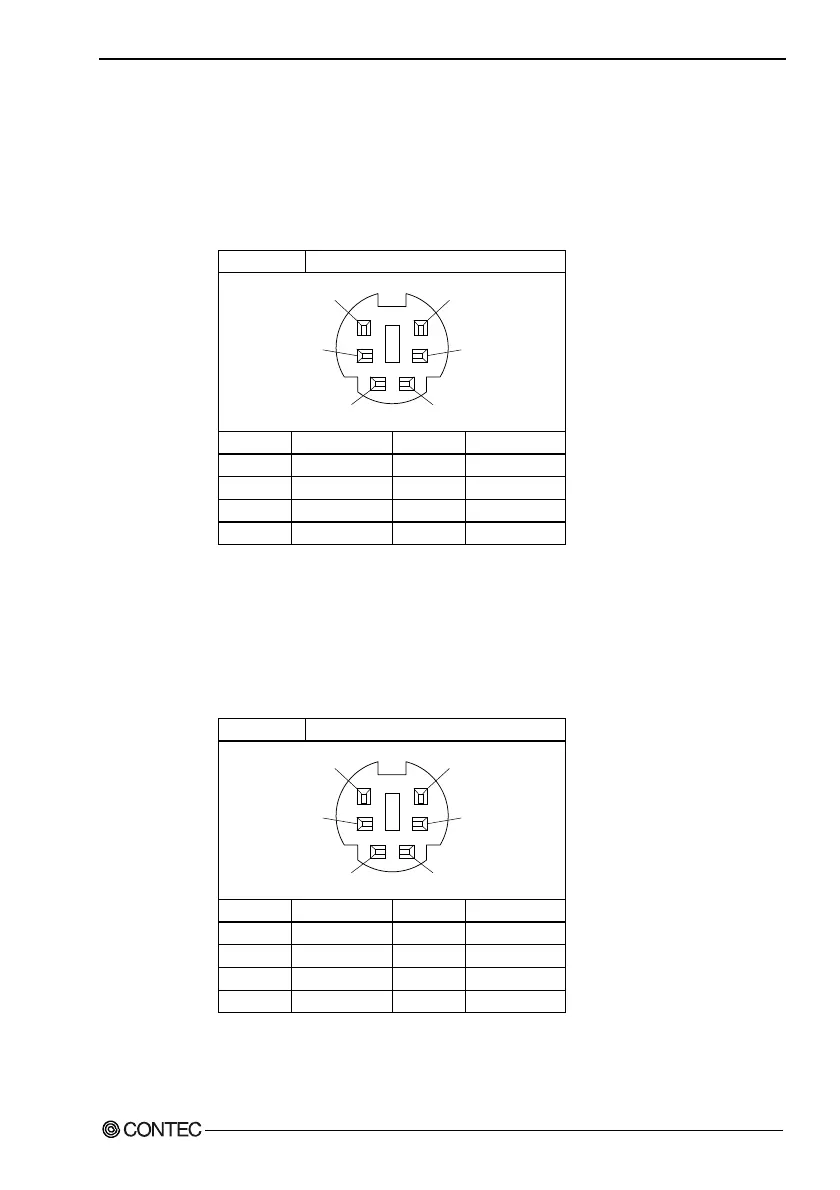

Table 5.2. Keyboard Connector
Connector type Equivalent to the MD-DS12300-14S-14 (JST)
Pin No.
1
2
3
4
Pin No.
5
6
SHIELD
---
Signal
+KBD DATA
N.C.
GND
+5.0V DC
Signal
+KBD CLK
N.C.
GND
6
4
2
1
3
5
Mouse Interface
The PANECON-PC is equipped with a mouse connector named
MOUSE (MINI-DIN 6P).
Table 5.3. Mouse Connector
Connector type Equivalent to the MD-DS12300-14S-14 (JST)
Pin No.
1
2
3
4
Pin No.
5
6
SHIELD
---
Signal
+MOUSE DATA
N.C.
GND
+5.0V DC
Signal
+MOUSE CLK
N.C.
GND
6
4
2
1
3
5
User’s Manual
49
