5. Each Component Function

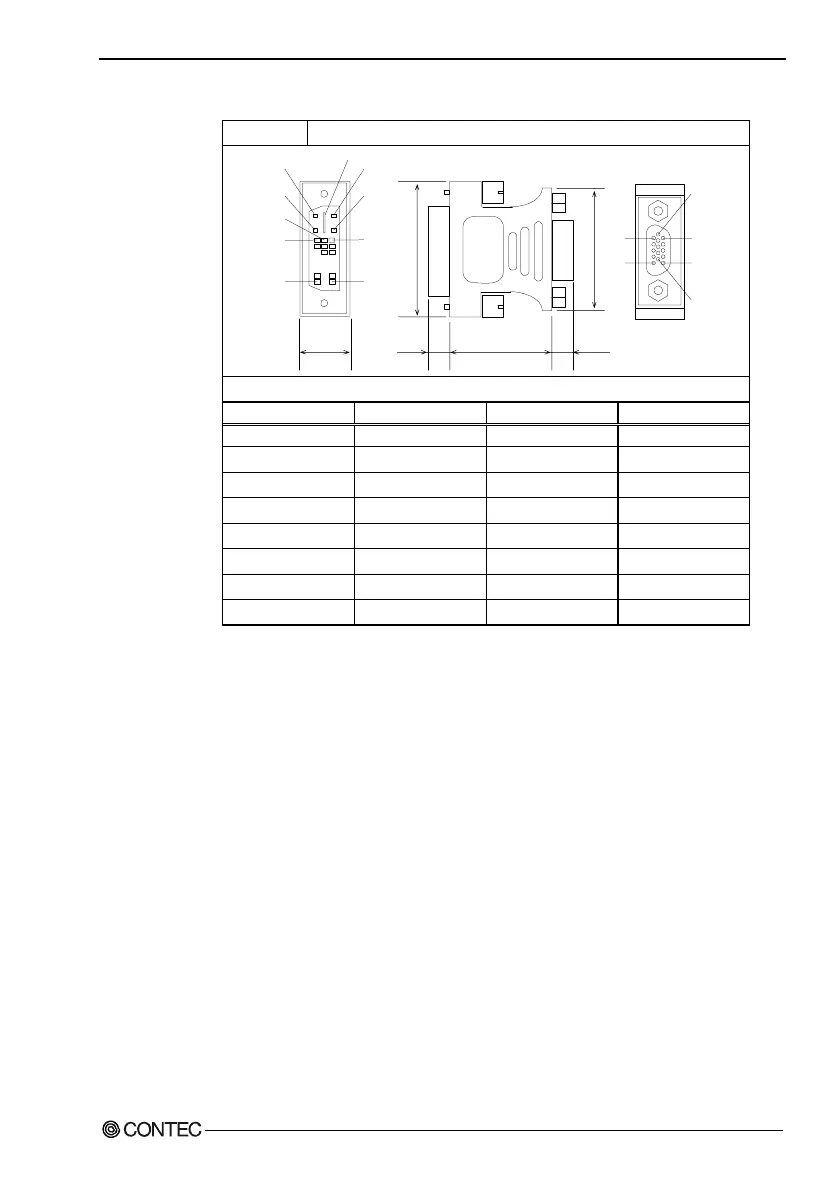

Table 5.17. DVI-Analog RGB conversion adapter
Connector DVI-I 29pin
1
8
17
24
16
C1
C2
C3
C4
C5
5
1
6
10
11
15
15.00
[mm]
6.20 5.80
39.40
30.00
33.00
Analog RGB signals
Pin No. Signal Pin No. Signal
1 RED 9 HPD
2 GREEN 10 GND
3 BLUE 11 N.C.
4 N.C. 12 DDC DATA
5 GND 13 HSYNC
6 GND 14 VSYNC
7 GND 15 DDC CLK
8 GND
Display Driver
Visit the CONTEC web site to download the Display driver
(IPC-SLIB-01) for the OS running on your PANECON-PC.
For the download, see Chapter 7 “List of Options".
User’s Manual
63
