5. Each Component Function
(4) Insert the board into the slot and fasten it with screws.

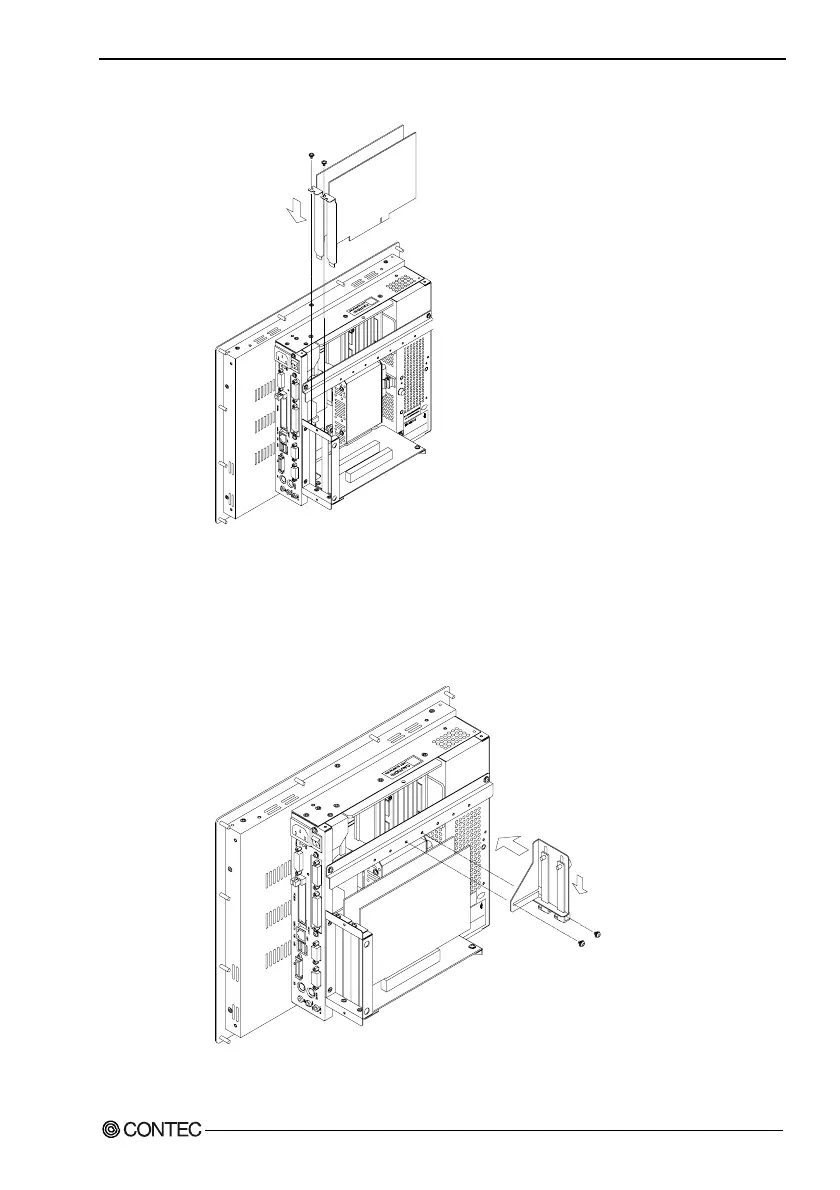

Figure 5.24. Installation of an Expansion Board
(5) Install the PCB brace. It can hold down a board if its height is
at least 68mm.
Figure 5.25. Attaching the PCB Brace
User’s Manual
81
