210 Epsilon EP-P Drive Reference Manual
www.controltechniques.com Revision: A4

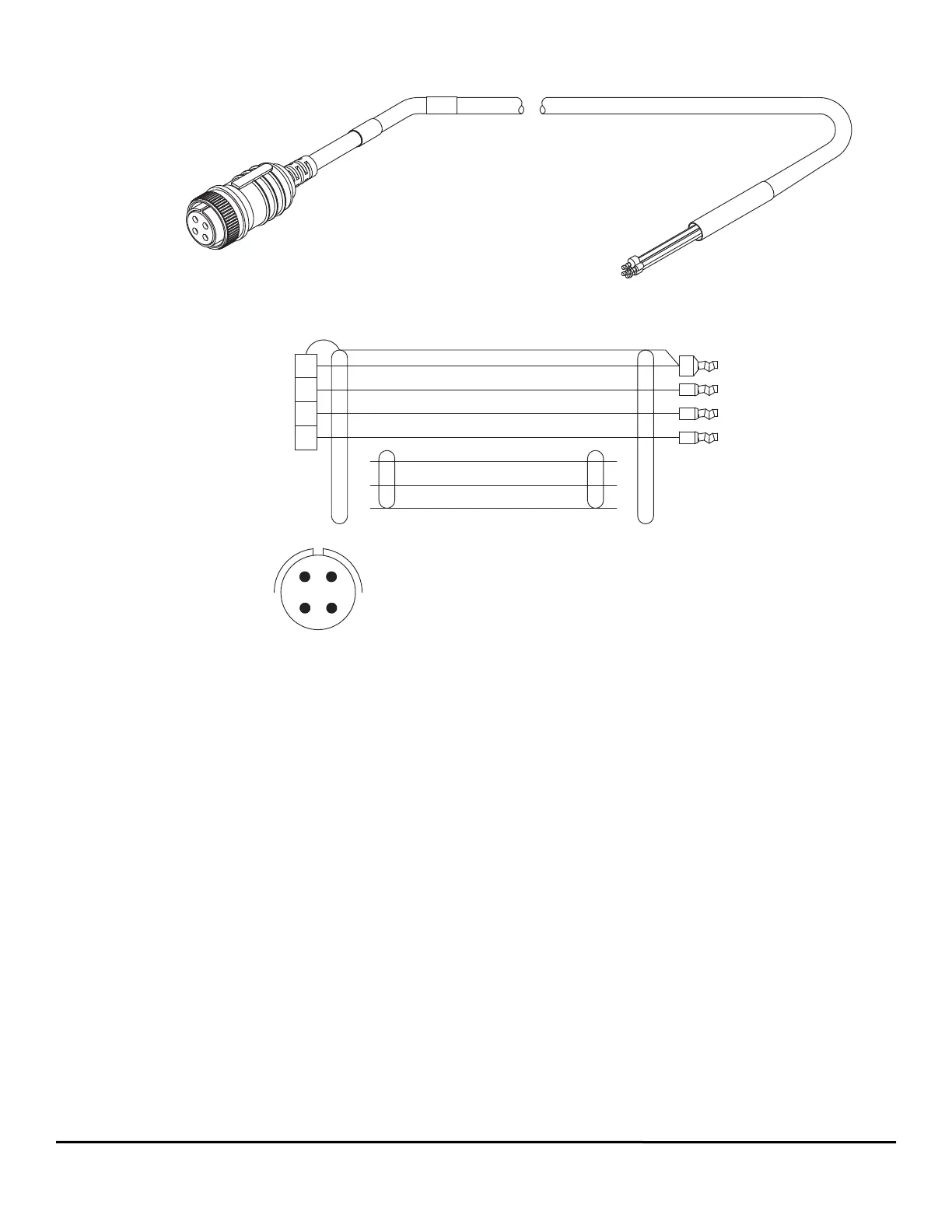

8.3.2 XCMDS
GRN/YEL
BRN
BLK
BLU
B
C
D
A
BRAID SHIELD FORM WIRE
BLU (20 AWG)
BLU/WHT (20 AWG)
Drain Wire
U
V
W
PE/GND
SOLDER SIDE
C
D
B
A
Socket
