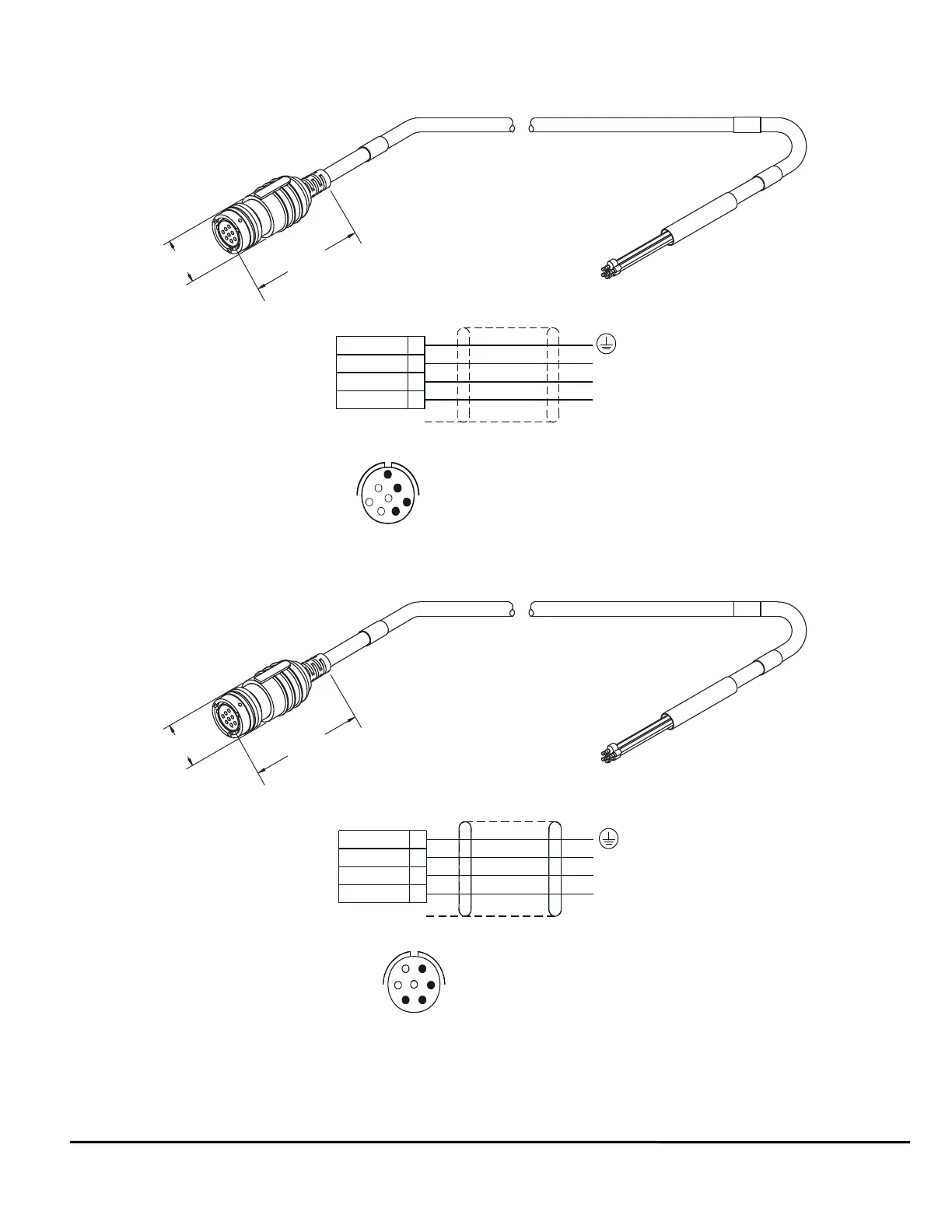

8.4 NT and MG Motors Cables
8.4.1 CMDS
8.4.2 CMMS
3 3/4" MAX.
1 1/2" MAX.
F
C
SOLDER SIDE
E
D
BLK
BLU
A
G
H
B
SHELL
C
B
GRN/YEL
BRN A
D
T
S
R
3 3/4" MAX.
1 1/2" MAX.
C
BLU
SOLDERSIDE
D
E
G
F
C
B
A
SHELL
GRN/YEL
BRN
BLK
A
B
D
T
S
R
