8 Specifications
8.1 Dimensions and Clearances
The following table applies to A and B as shown in Figure 149 below.

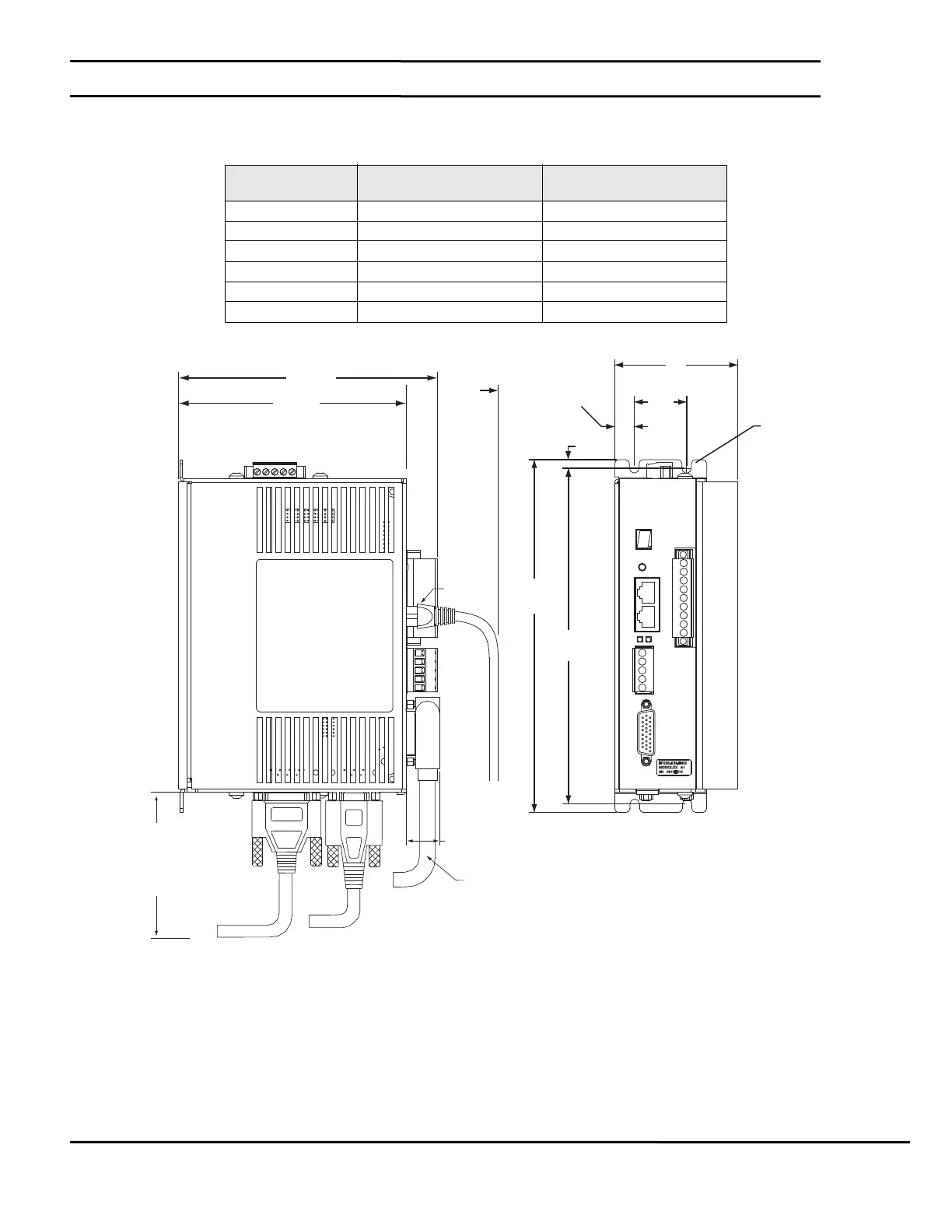

Figure 149: Epsilon EP202 through 206 Drive Dimensions and Clearances
Drive Model
Dimension “A”
(shown in inches/mm)
Dimension “B”
(shown in inches/mm)
EP202-B,-I,-IDN 2.11 [53.59] 0.45 [11.4]
EP204-B,-I,-IDN 2.11 [53.59] 0.45 [11.4]
EP206-B,-I,-IDN 2.82 [71.63] 0.45 [11.4]
EP202-P 2.69 [68.3] 1.03 [26.16]
EP204-P 2.69 [68.3] 1.03 [26.16]
EP206-P 3.40 [86.9] 1.03 [26.16]
1.20
[30.48]
“B”
(4X)Ø.219
[5.56]
5.22
[132.59]
5.94
[150.88]
8.099
[205.72]
.200
[5.08]
7.70
[195.58]
2.5
[63.50]
3.50
[88.0]
Cable
Clearence
“A”
0.75
[19.05]
EIO26 Cable
DDC-RJ45
