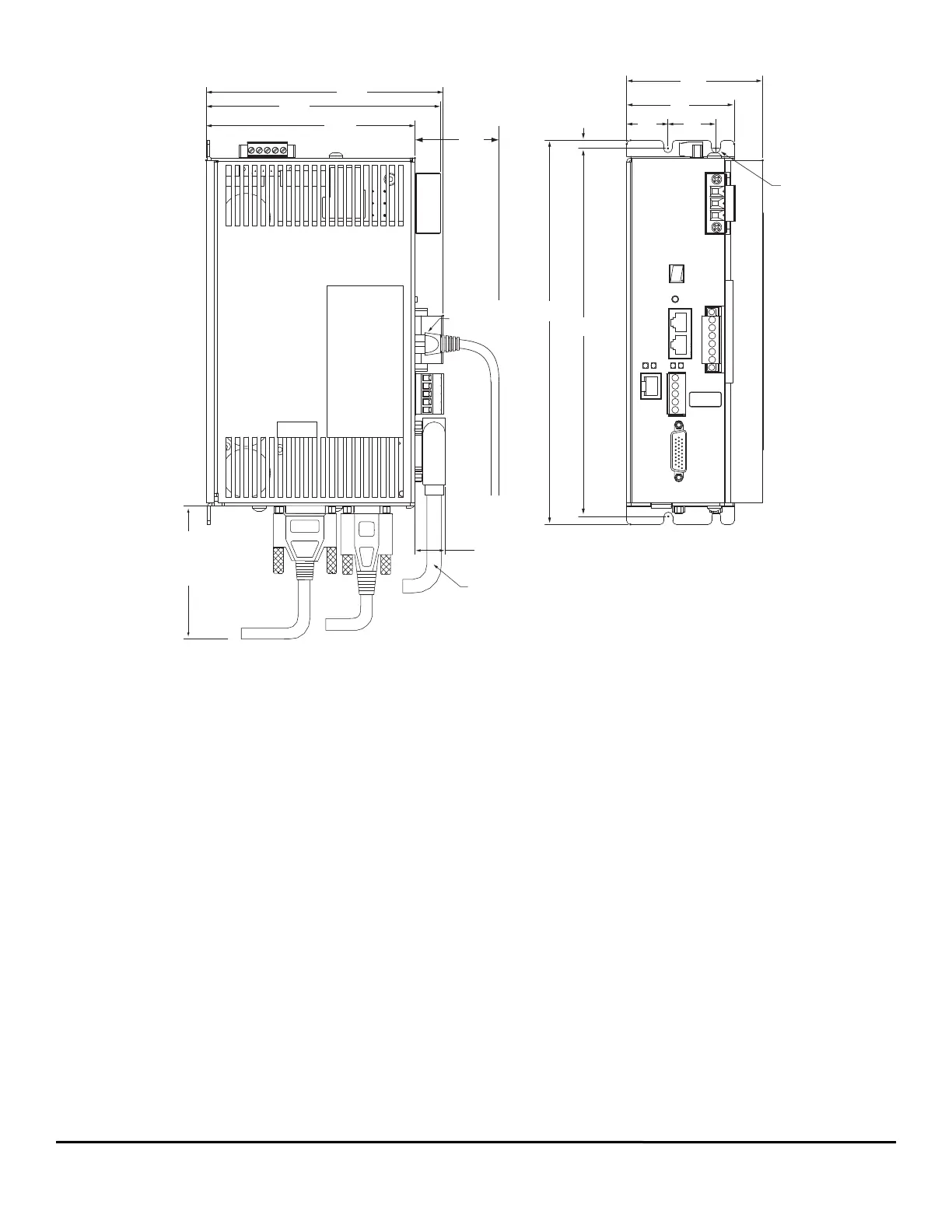

Figure 150: Dimensional Drawing for all Epsilon EP209 Drive
EP209-XXX-XX00
9606XX-XX A1
SN 0610E014
5.23
[132.84]
5.86
[148.85]
5.94
[150.88]
9.60
[243.84]
0.20 [5.08]
9.20
[233.68]
2.69
[68.33]
3.40
[86.36]
1.03
[26.16]
1.20
[30.48]
4X Ø.219
0.75
[19.05]
EIO26 Cable
DDC-RJ45
2.5
[63.50]
3.50
[88.0]
Cable
Clearence
