Epsilon EP-P Drive Reference Manual 207
Revision A4 www.controltechniques.com

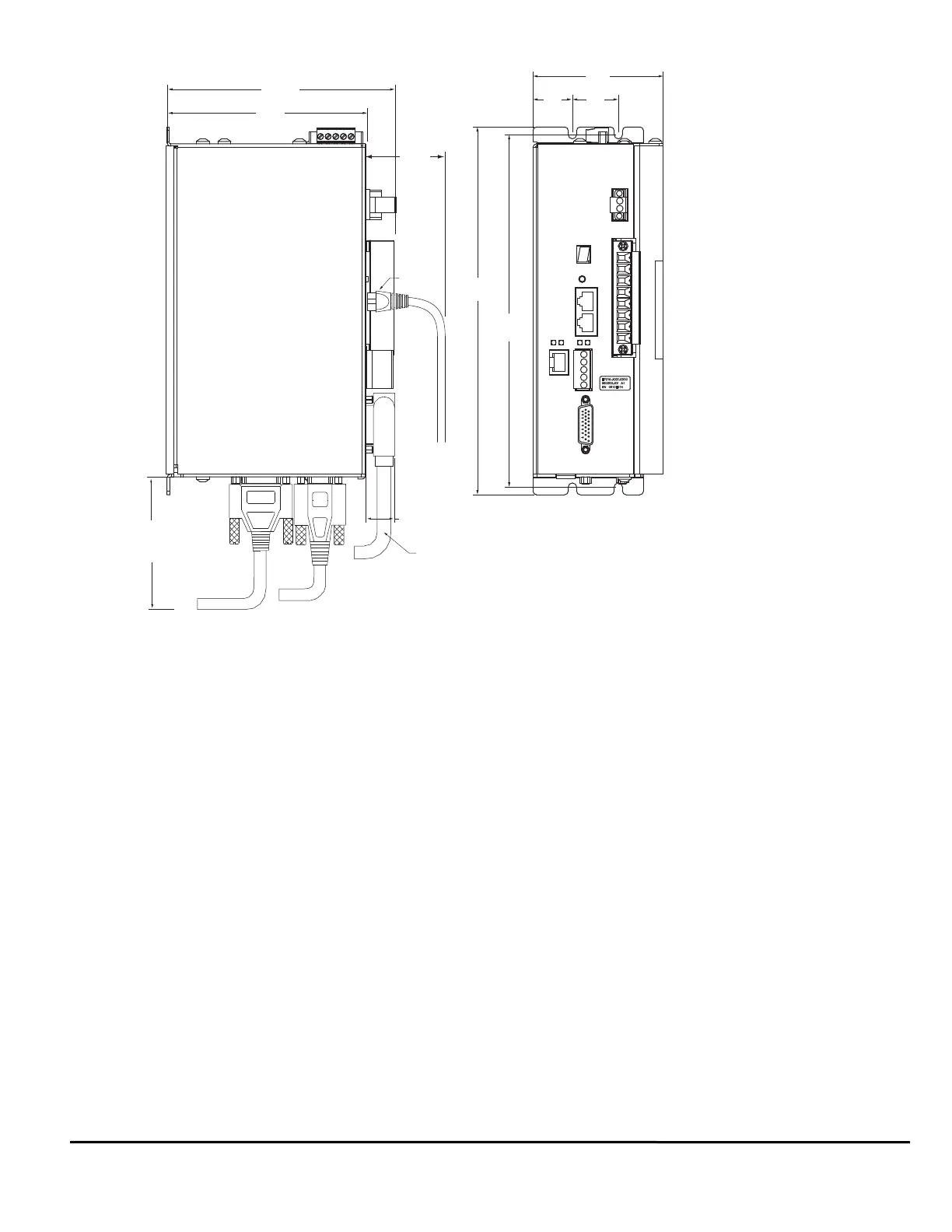

Figure 151: Dimensional Drawings for all Epsilon EP216 Drives
9.60
[243.84]
9.20
[233.68]
3.40
[876.9]
1.03
[26.16]
1.20
[30.48]
5.96
[151.38]
5.23
[132.84]
3.50
[88.0]
Cable
Clearence
2.5
[63.50]
DDC-RJ45
0.75
[19.05]
EIO26 Cable
