waits again for the Input to turn OFF before resuming the count again.

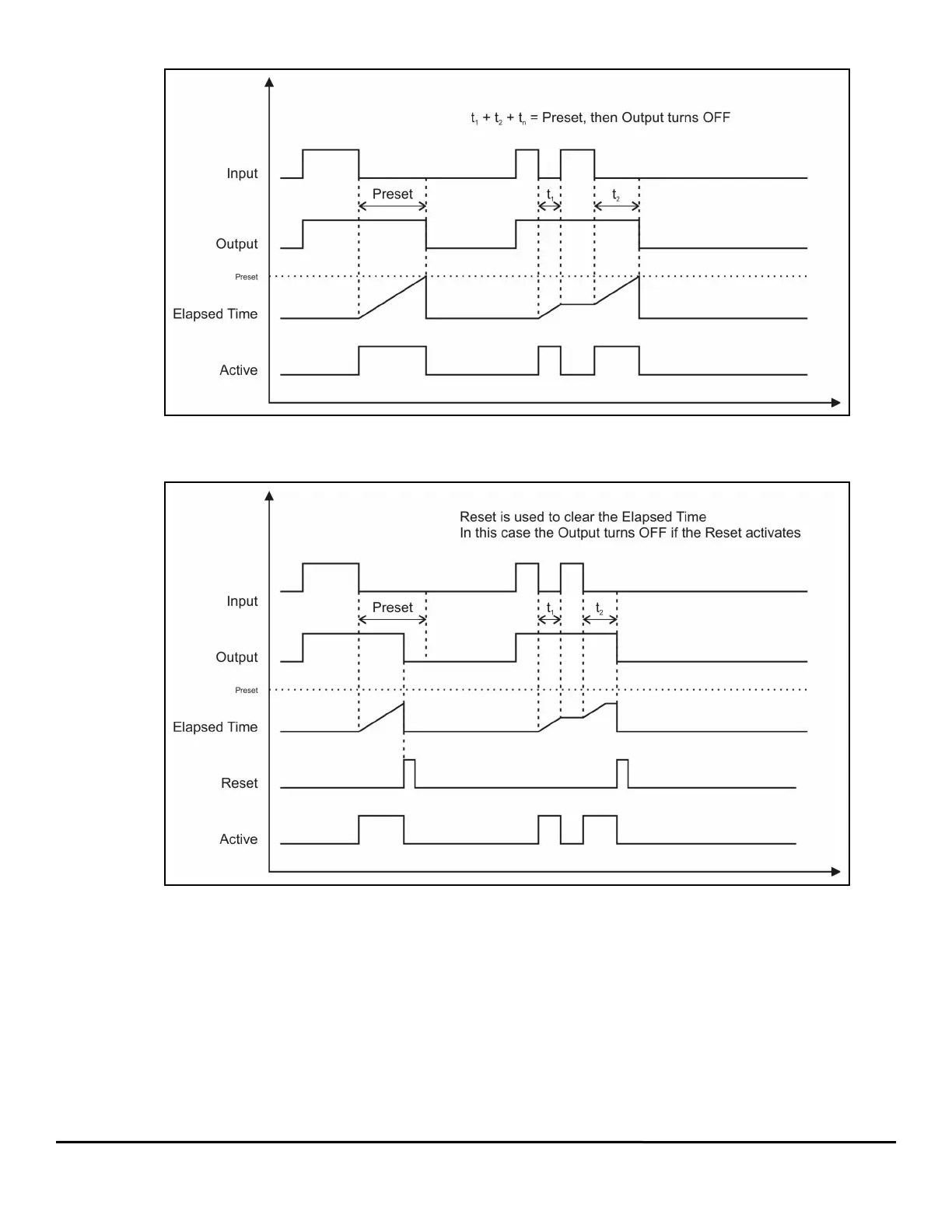

Figure 73: Cumulative OFF Timer - Timing Diagram
Additionally, a Reset signal can be used to clear the cumulative timer and restart it at zero. The figure below shows an example of this.
Figure 74: Cumulative OFF Timer with Reset - Timing Diagram
Watchdog Timer
With this type of timer, when the Enable of the timer activates, the internal clock begins to count. If a rising edge is seen on the Input before the
Preset Time is reached, the Elapsed Time is set to zero and the internal clock again starts counting immediately. The duration that the Input
remains on does not have any effect on the Output. If at any point, the Elapsed Timer reaches Preset time, the Output turns ON. The Output
will remain ON until the Timer Reset is activated. If a rising edge is seen on the Input while the Output is ON, it will be ignored and the Elapsed
Time will NOT be reset.
