Control Techniques Mentor MP User Manual

Parameter
structure
Keypad and
display
Parameter x.00
Parameter description
format
Advanced parameter
descriptions
Serial comms
protocol
Performance
Menu 9
Mentor MP Advanced User Guide 125
Issue Number: 4 www.controltechniques.com

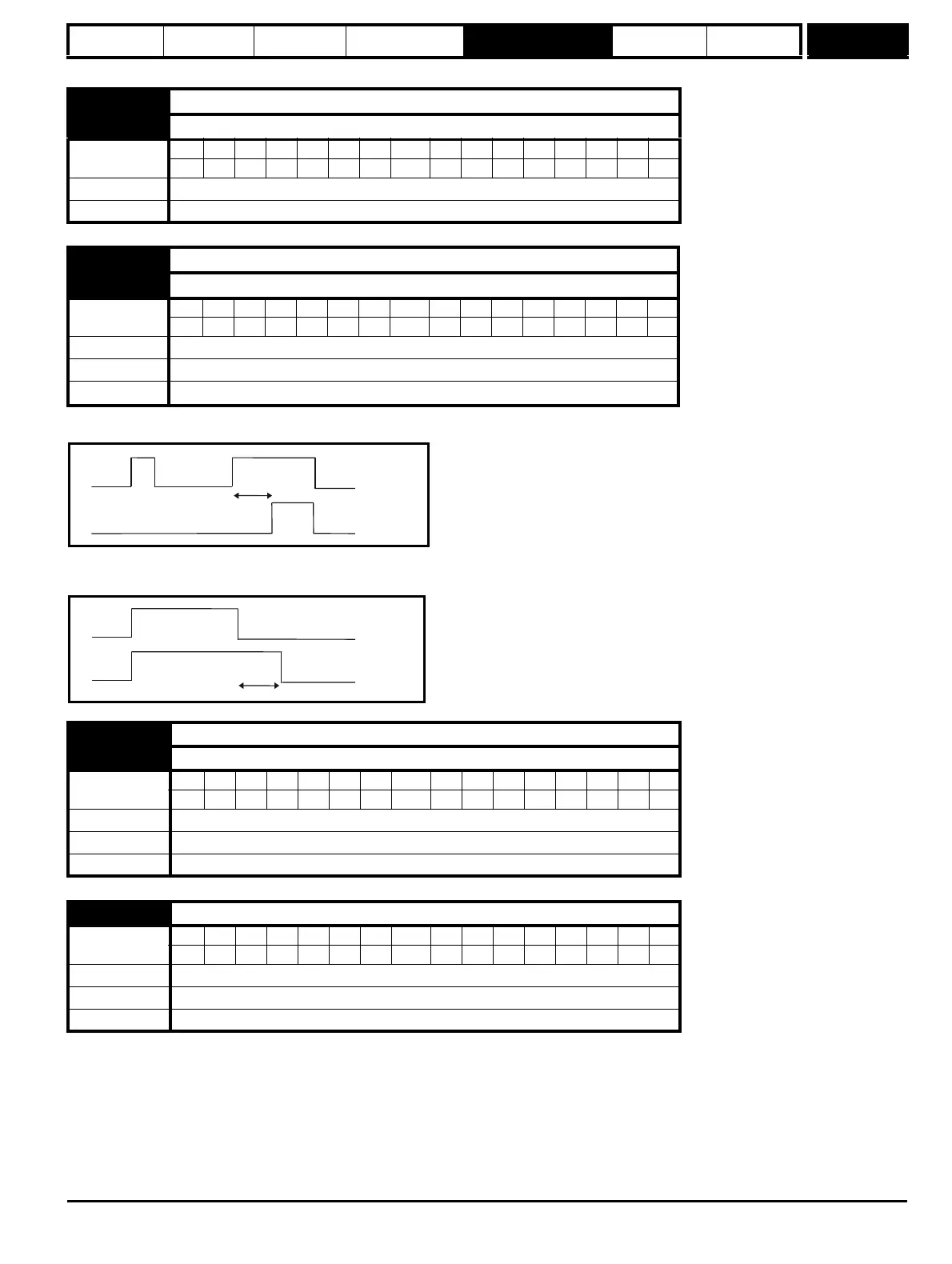

If the delay parameter is positive, the delay ensures that the output does not become active until an active condition has been present at the input for
the delay time as shown below.
If the delay parameter is negative, the delay holds the output active for the delay period after the active condition has been removed as shown below.
Therefore an active input that lasts for 4 ms or more will produce an output that lasts at least as long as the delay time.
The motorized pot modes are given in the following table:
9.08 Logic function 1 output invert
9.18 Logic function 2 output invert
Coding
Bit SP FI DE Txt VM DP ND RA NC NV PT US RW BU PS
111
Default 0
Update rate 4 ms x number of menu 9 or 12 functions active read
9.09 Logic function 1 delay
9.19 Logic function 2 delay
Coding
Bit SP FI DE Txt VM DP ND RA NC NV PT US RW BU PS
111
Range ±25.0 s
Default 0.0
Update rate 4 ms x number of menu 9 or 12 functions active read
9.10 Logic function 1 destination
9.20 Logic function 2 destination
Coding
Bit SP FI DE Txt VM DP ND RA NC NV PT US RW BU PS
1 2 1111
Range Pr 0.00 to Pr 22.99
Default Pr 0.00
Update rate Read on reset
9.21 Motorized pot mode
Coding
Bit SP FI DE Txt VM DP ND RA NC NV PT US RW BU PS
111
Range 0 to 3
Default 2
Update rate Background read
Delay
Input
Output
Delay
Input
Output
