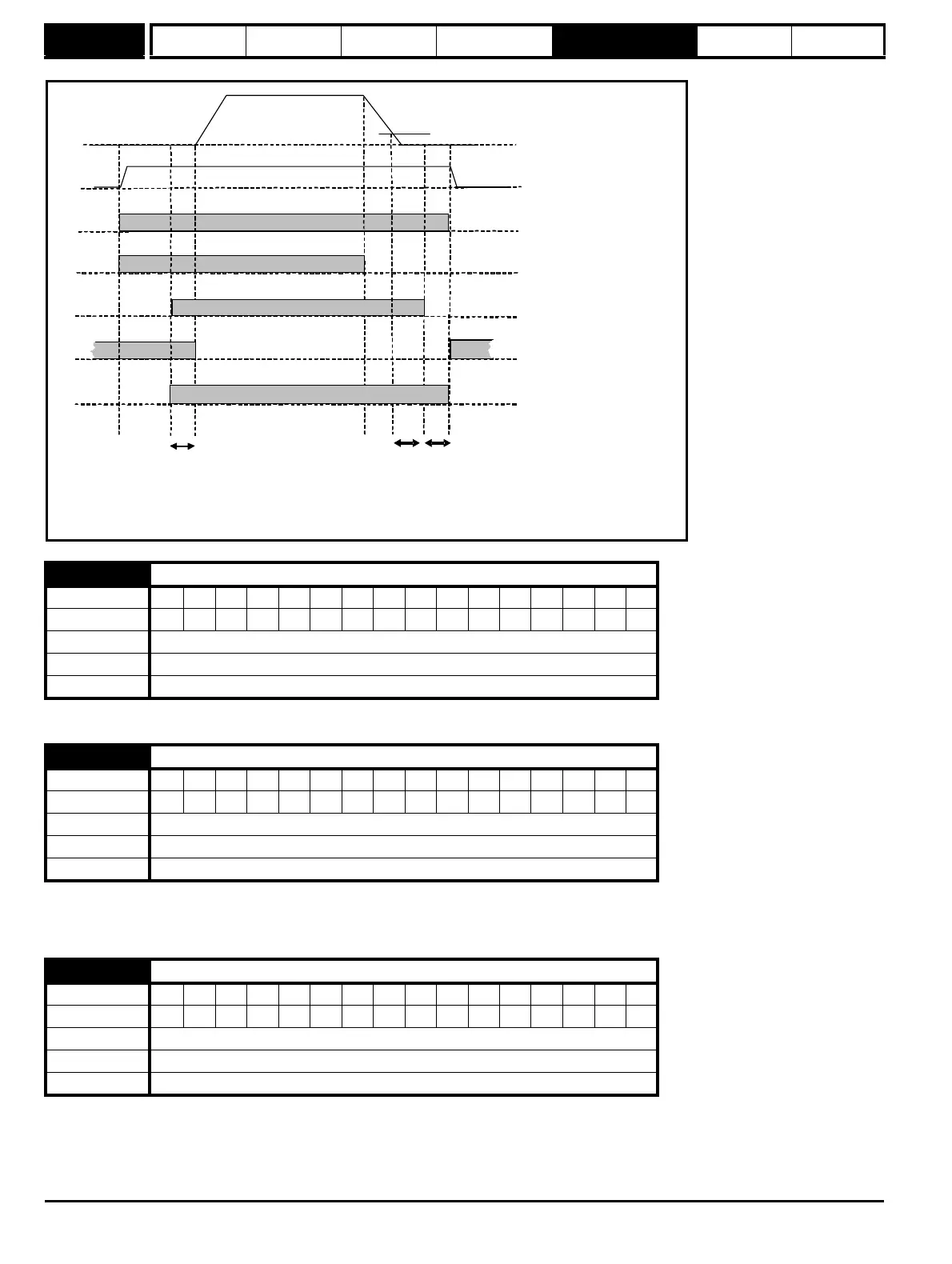

Figure 5-32 Brake sequence
This parameter should be set to a level that is required to hold a load when the brake is released.
When stopping, the drive reference can be removed (i.e. Pr 1.11 = 0), but the brake will remain energized (open), until the motor has remained at a
speed below the brake apply speed for the delay defined by Pr 12.46. The delay prevents rapid activation and de-activation of the brake when fine
control of a motor is required close to zero speed.
See Pr 12.45 for more information.
12.43
Torque proving threshold
Coding Bit SP FI DE Txt VM DP ND RA NC NV PT US RW BU PS
111
Range 0 to 150 %
Default 10
Update rate Background read
12.45
Brake apply speed
Coding Bit SP FI DE Txt VM DP ND RA NC NV PT US RW BU PS
111
Range 0 to 200 rpm
Default 5 rpm
Update rate Background read
12.46
Brake apply speed delay
Coding Bit SP FI DE Txt VM DP ND RA NC NV PT US RW BU PS
111
Range 0.0 to 25.0 s
Default 1.0 s
Update rate Background read
1 2
3 5 4
Pr Motor Speed
3.02
Pr Reference on
1.11
Pr Brake release
12.40
Pr Ramp hold
2.03
Pr Position control mode
13.10
Pr Drive active
10.02
Torque present
1. Wait for armature current and fully fluxed machine
2. Post-brake release delay
3. Wait for speed threshold
4. Wait for brake apply speed delay
5. Brake apply delay
Pr Hold zero speed
6.08
Pr Speed threshold
12.45
Pr 12.47 Pr Pr 12.46 12.48
