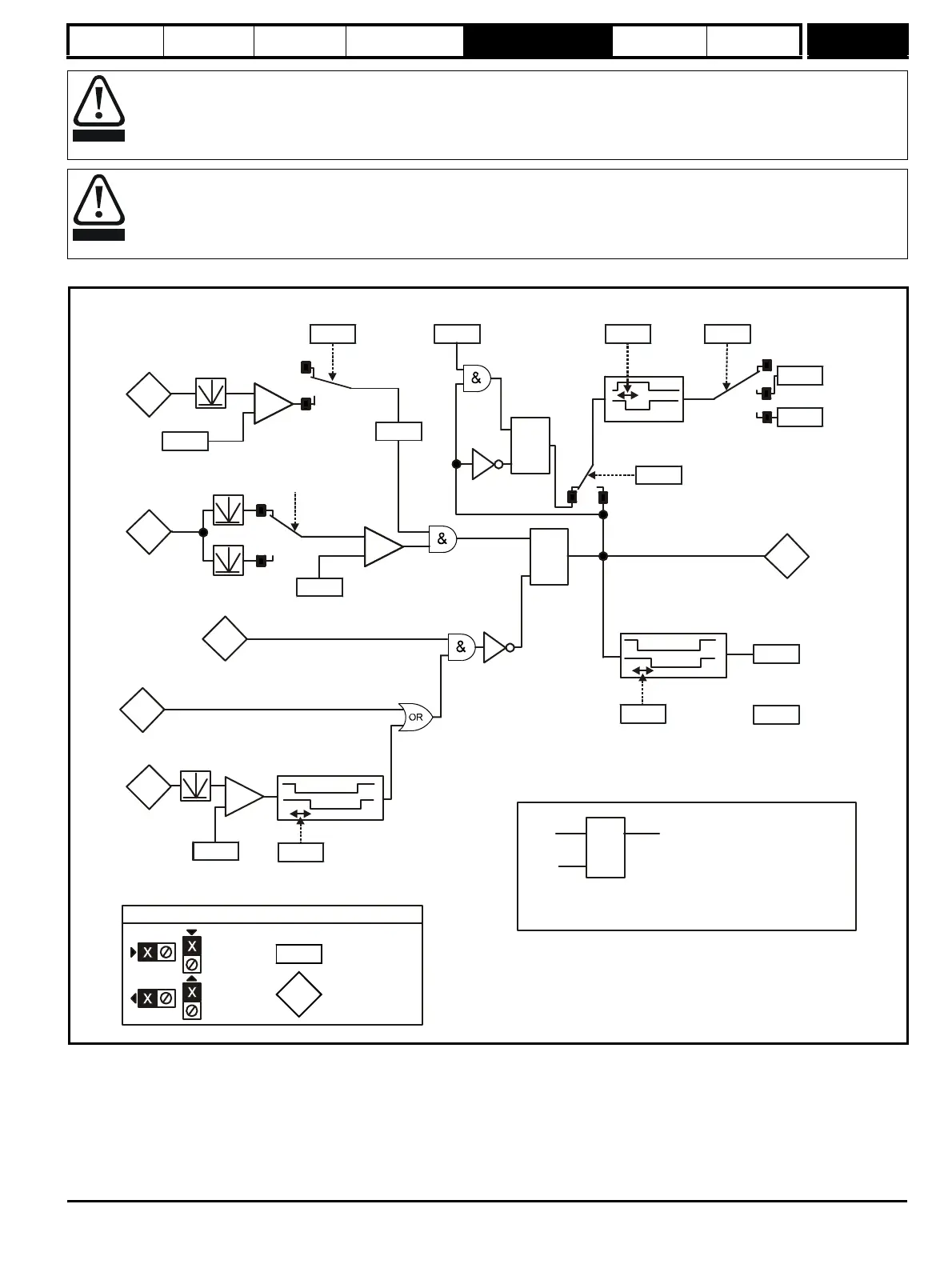

Figure 5-31 Menu 12 Brake control function
The brake control functions are provided to allow well co-ordinated operation of an external brake with the drive. While both hardware and
software are designed to high standards of quality and robustness, they are not intended for use as safety functions, i.e. where a fault or
failure would result in a risk of injury. In any application where the incorrect operation of the brake release mechanism could result in injury,
independent protection devices of proven integrity must also be incorporated.
The control terminal relay can be selected as an output to release a brake. If a drive is set up in this manner and a drive replacement takes
place, prior to programming the drive on initial power up, the brake may be released.When drive terminals are programmed to non default
settings the result of incorrect or delayed programming must be considered. The use of a SMARTCARD in boot mode or an SM-
Applications module can ensure drive parameters are immediately programmed to avoid this situation.
If the reset input is 1 the output is 0
If the reset input is 0 the output latches at 1 if the input is 1
Reference On
4.01
Current magnitude
+
Torque proving
threshold
+
5.54
Flux feedback
External field
Drive Active
Speed feedback
+
Brake apply
speed
Brake apply speed
delay
Brake Release
Jog override
(Menu 6)
Brake apply delay
Brake controller
enable
Brake release source
External brake
released indicator
Tor que
present
Flux present
threshold
Positive torque only
Field Active
(RW)
parameter
Read-only (RO)
parameter
Input
terminals
Output
terminals
The parameters are all shown at their default settings
10.02
1.11
3.02
-
-
-
12.53
12.50
12.54
mode
Hold zero
speed
LATCH
12.51
12.52
To Next Page
