Creo EverSmart - Stage 6 - Automatic Optics Check; Stage 7 - Create Tables

Stage 6 - Automatic Optics Check 55
6.6 Stage 6 - Automatic Optics Check

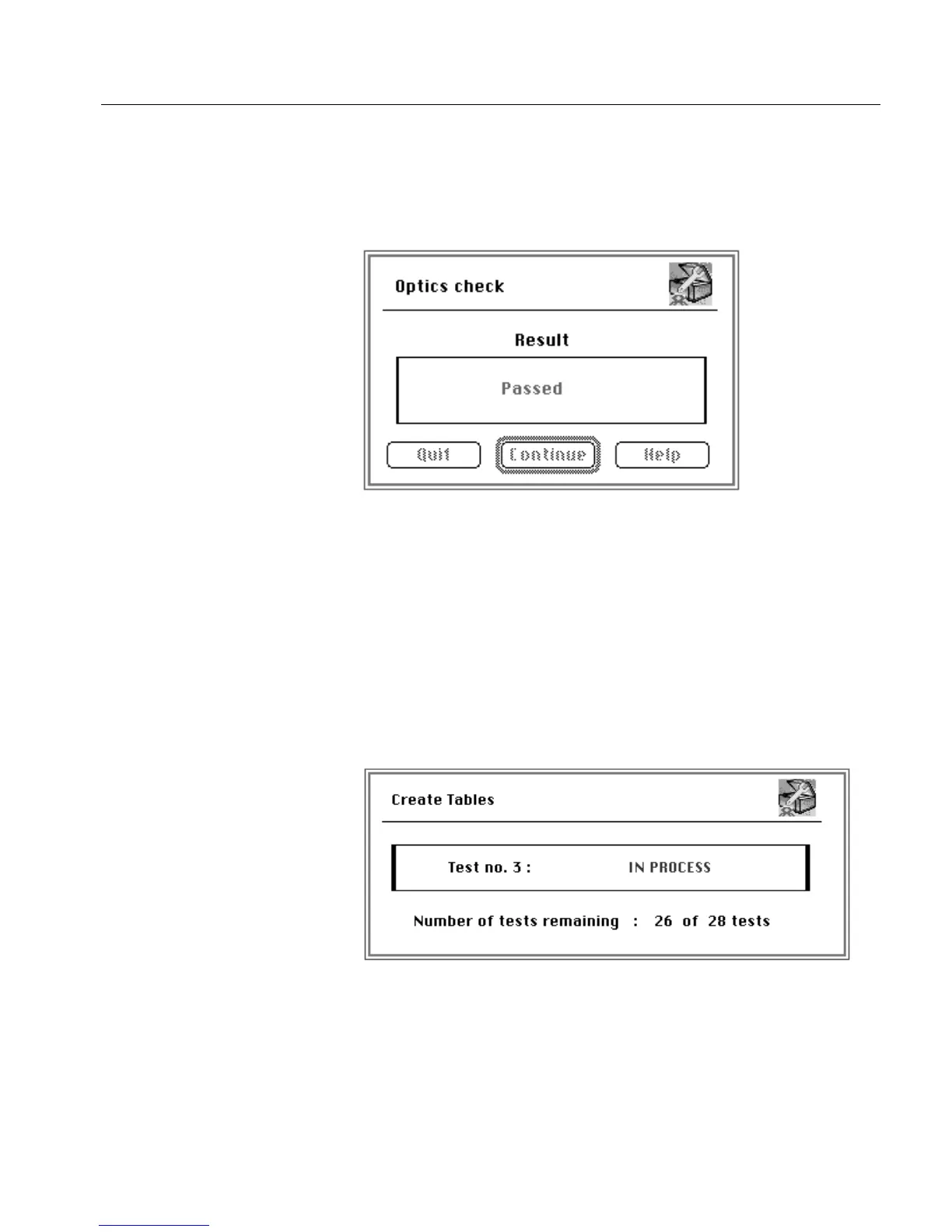

 An automatic Optics check is now performed, and the following
message window is displayed with the test results.
The results can be either Passed or Out of Tolerance.
If the test passes, the application automatically moves on to the
next stage. If the test result is Out of Tolerance, refer to
6.10 Troubleshooting for the Installation & Utilities Program on
page 60.
6.7 Stage 7 - Create Tables
 The Create Tables window is displayed.
