Curtis Instruments 1351 - Figure 2: Mounting and Dimensions (Inches & MM)

2 — INSTALLATION SPECIFICATIONS AND WIRING
Curtis Model 1351 – December 2018
Return to TOC
pg. 4

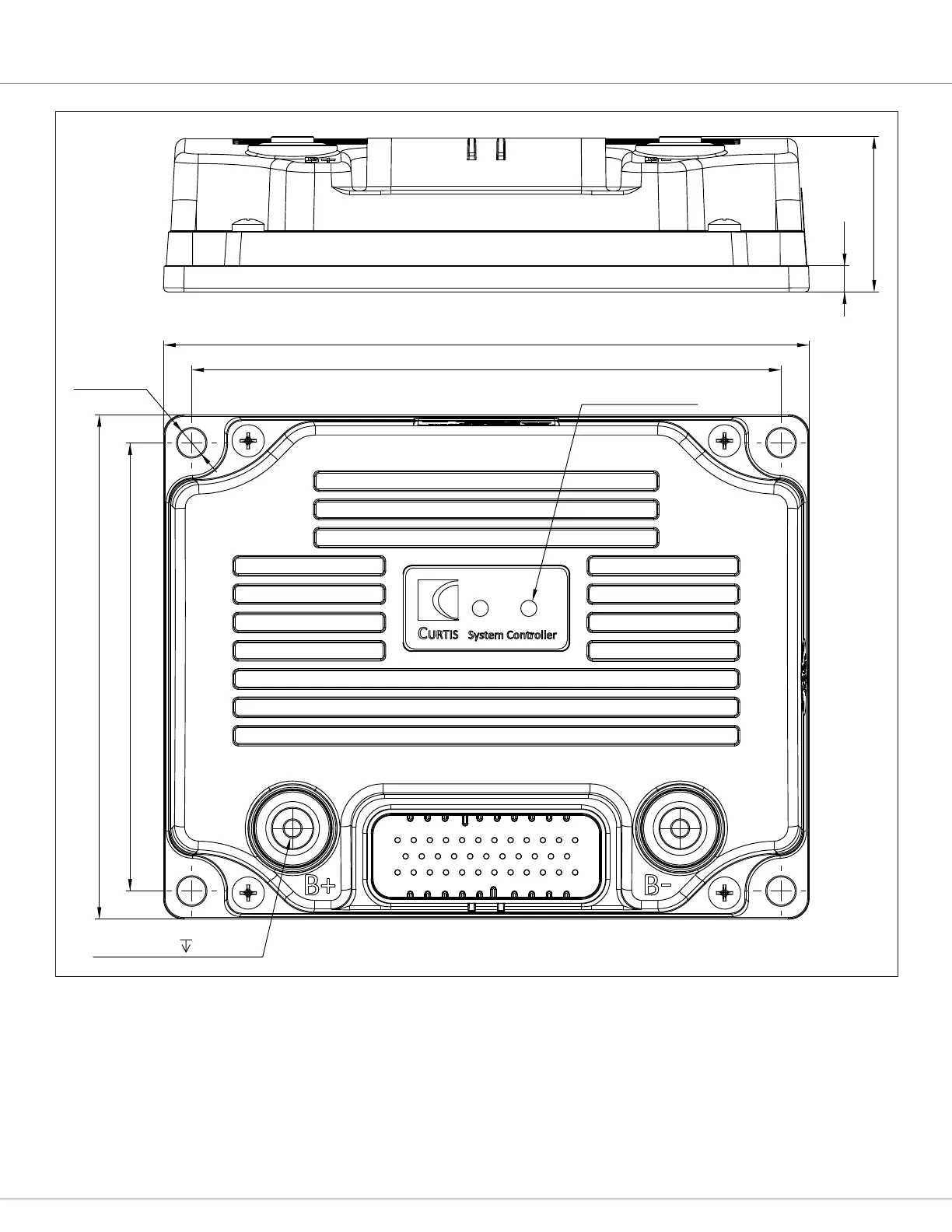

Figure 2
Mounting and dimensions (inches & mm)
125
160
146.0
111.0
4X
Ø
7.0
6.5
(38.5)
2X M5X0.8 10 MIN.
STATUS LED
