2 — INSTALLATION SPECIFICATIONS AND WIRING
Curtis Model 1351 – December 2018
Return to TOC
pg. 6
THE 35-PIN AMPSEAL CONNECTIONS
All logic and low power connections are through a single 35-pin AMPSEAL connector integrated into
the cover utilizing gold-plated pins. e matching receptacle’s wire silos come sealed by a membrane.
Pierced the membrane by inserting the individually terminated wires. To maintain the IP65 rating,
use the proper wire gauge and insulation thickness. Seal any non-used wire positions that have their
silo-diaphragm pierced with the specic seal plug.
• Figure 3 shows e AMPSEAL receptacle (plug) housing and silo numbering.
• Table 1 lists the matching vehicle harness components.
• Table 2 lists the individual 1351 System Controller inputs and outputs characterizations, by
pin number, including the associated VCL functions and diagnostic Monitor variables.

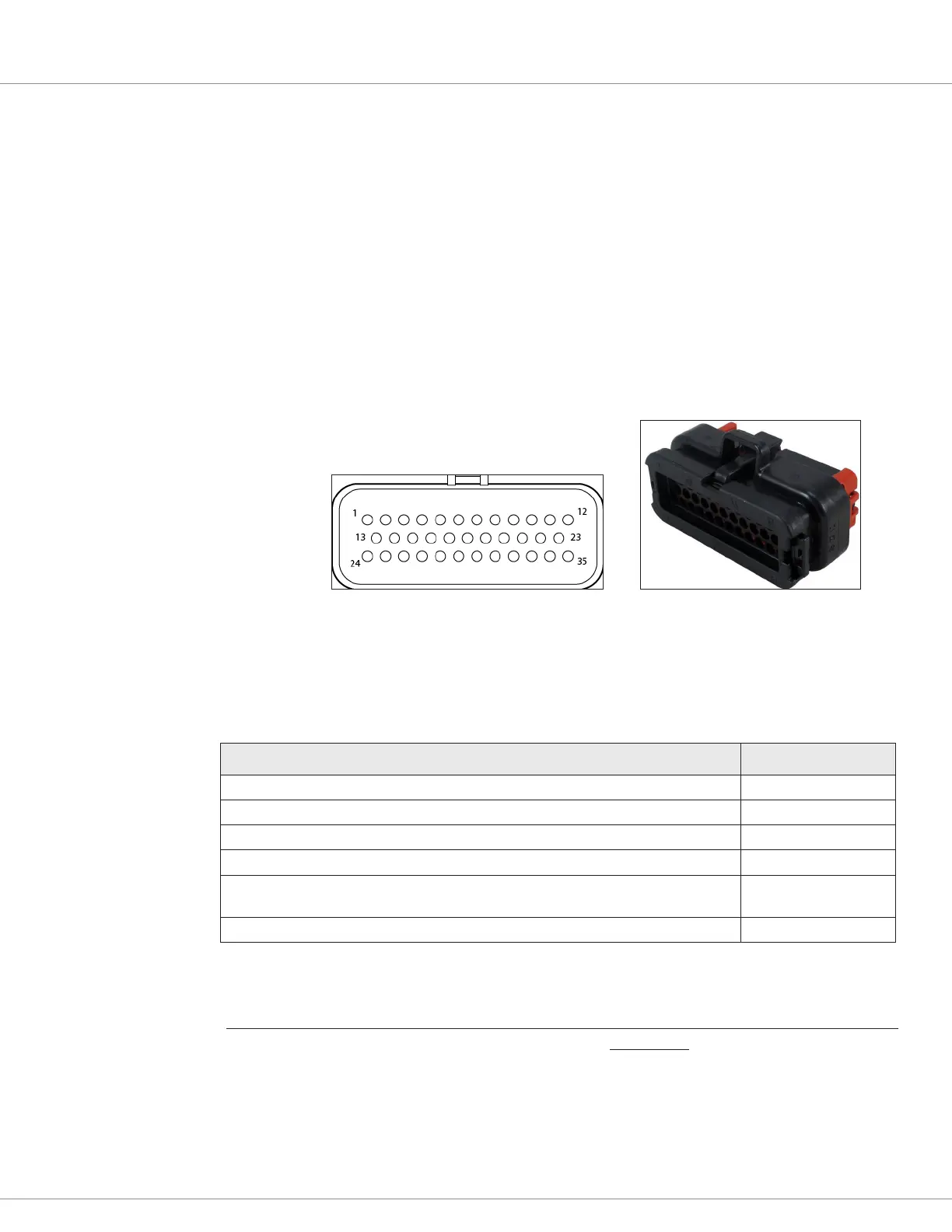

Figure 3
irty-Five pin AMPSEAL
connector
AMPSEAL 35 PIN Connector
Harness-side view
Table 1 The AMPSEAL Connector Components & Part Numbers
Matching AMPSEAL 35-pin Component * Part Number
AMPSEAL receptacle housing (the black vehicle-harness plug) 776164-1
Plug’s gold-plated socket terminals (strip form p/n) 770520
Plug’s gold-plated socket terminals (loose piece p/n) 770854-3
Silo seal plug (for non-used pin positions with a pierced membrane) 770678-1
Harness wire size (gauge)
0.5 – 1.25 mm
2
(20 – 16 AWG)
Wire diameter (overall) [i.e., uses wire with thin-wall insulation] 1.7 – 2.7 mm
*AMPSEAL components and tooling are available worldwide from multiple TE Connectivity electrical component distributors.
Reference the TE Connectivity Document: Application Specification 114-16016. http://www.te.com/commerce/
DocumentDelivery/DDEController
TE Connectivity website: http://www.te.com/usa-en/products/connectors/automotive-connectors/intersection/ampseal-
connectors.html
