5
EXCEL HR OPERATOR MANUAL
D1796, REV. D, 12/16
Connecting the System Components
Before connecting the system components, inspect the individual components, cables and electrical
connections for any dirt, debris or damage. Check all electrical cables to ensure they are not frayed or
split. Inspect the handpiece, as instructed in the Maintenance chapter of this manual.
Always turn off the system before inspecting the handpiece. Never
look
directly into the handpiece even when wearing protective
eyewear. Never look directly into the treatment beam or at scattered
light from metallic or other reflective surfaces. Doing so can cause
permanent eye damage.
Connecting the Footswitch
Plug the footswitch cable into the footswitch receptacle on the rear of the system console. If the
footswitch is not properly connected when the system is turned on,
a pop-up screen with an animated
illustration displays on the touchscreen and the system cannot be placed into READY mode.
Inserting the Remote Interlock Plug
Insert the remote interlock plug into the interlock receptacle on the rear of the system console. The
remote interlock plug must be inserted into the interlock receptacle
at all times, whether or not an
external door switch is used.
When using an external door switch, the system completely shuts
down if the treatment room door is
opened or the remote interlock plug is removed. To resume treatment, close the treatment room door or
reinsert the remote interlock plug, and restart the system using the keyswitch.

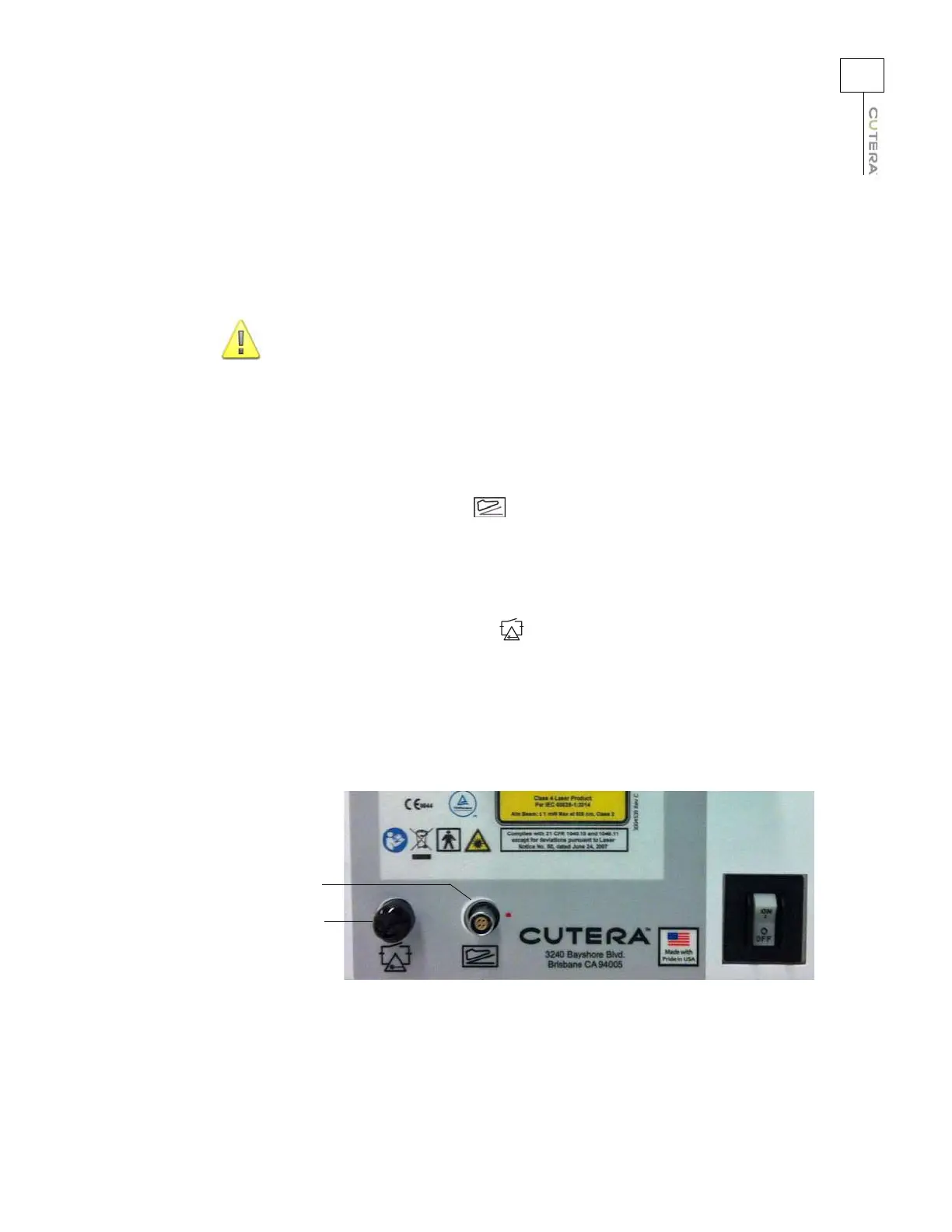

Footswitch receptacle
Interlock receptacle
WARNING
