20
EXCEL HR OPERATOR MANUAL
D1796, REV. D, 12/16
Pop-up Screens
When the system detects an abnormality during self-test or while the system is in READY mode, a pop-
up screen with the corresponding error code(s) displays on the touchscreen.

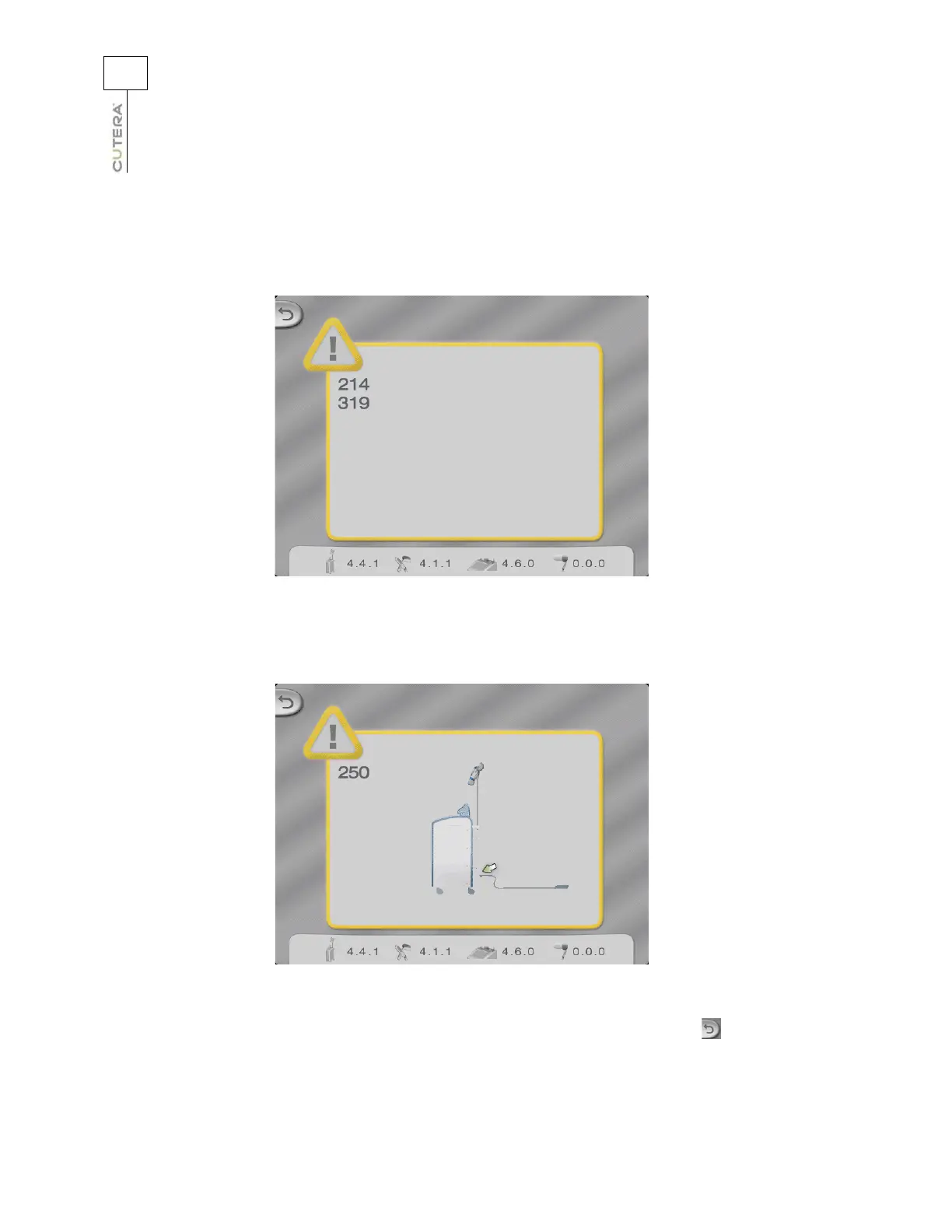

Sample Pop-up Screen with Error Codes
Depending upon the fault detected, some faults display an animated
illustration (e.g., footswitch
disconnected or water low).
“Connect Footswitch” Pop-up Screen
If the error is successfully cleared, the pop-up screen can be cleared
by touching the (back) button
in the upper left corner of the screen. If the error cannot be cleared, or if the error persists or reappears,
note
the error code(s) and contact Cutera Service (refer to Appendix C).
