Displays and Indicators
The system also includes various indicators and controls to ensure safe and accurate operation.
• Pulse counter display and reset button
The console records and displays the total number of treatment pulses
delivered since
the last button reset.
• Emission indicator
The emission indicator illuminates during treatment beam emission (i.e., when the
system is in READY mode and the footswitch is pressed).
Emission indicator
Pulse counter display
Pulse counter reset button

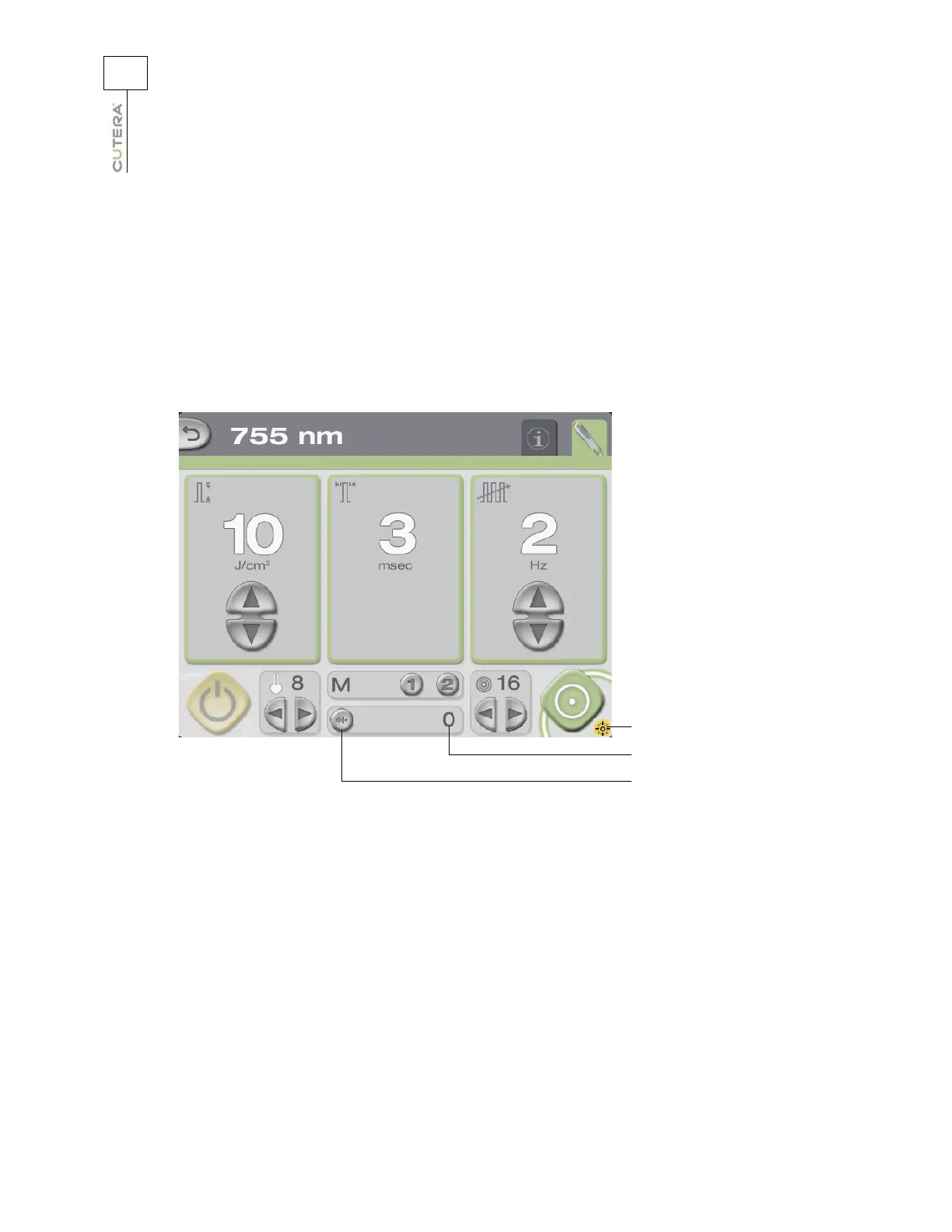

Location of Displays and Indicators on 755 nm Treatment Screen
