B-1
EXCEL HR OPERATOR MANUAL
D1796, REV. C, 10/16

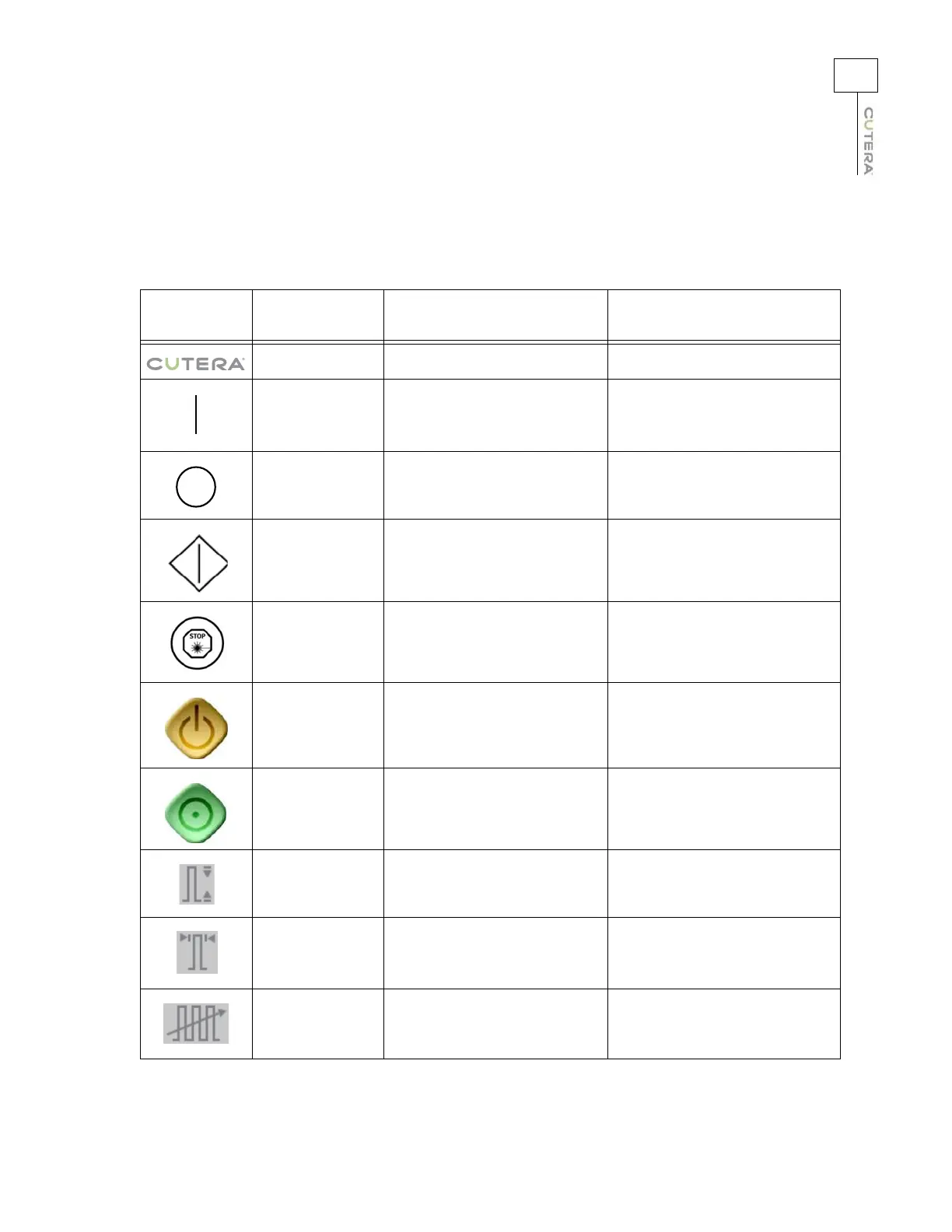

Appendix B - Symbols
This appendix describes the laser system symbols and their meanings.
Symbol
Standard
Reference
Description Location
Cutera logo Control panel
417-5007 Mains ON Rear panel (at circuit breaker) and
control panel (next to keyswitch)
417-5008 Mains OFF Rear panel (at circuit breaker) and
control panel (next to keyswitch)
417-5104 Momentary start Control panel (next to keyswitch)
DIN 18734 Emergency OFF Control panel (next to red button)
417-5266 Standby Touchscreen display
417-5264 Ready Touchscreen display
Cutera-defined
Fluence (J/cm
2
)
Touchscreen display
Cutera-defined Pulse width (ms) Touchscreen display
Cutera-defined Repetition rate (Hz) Touchscreen display
