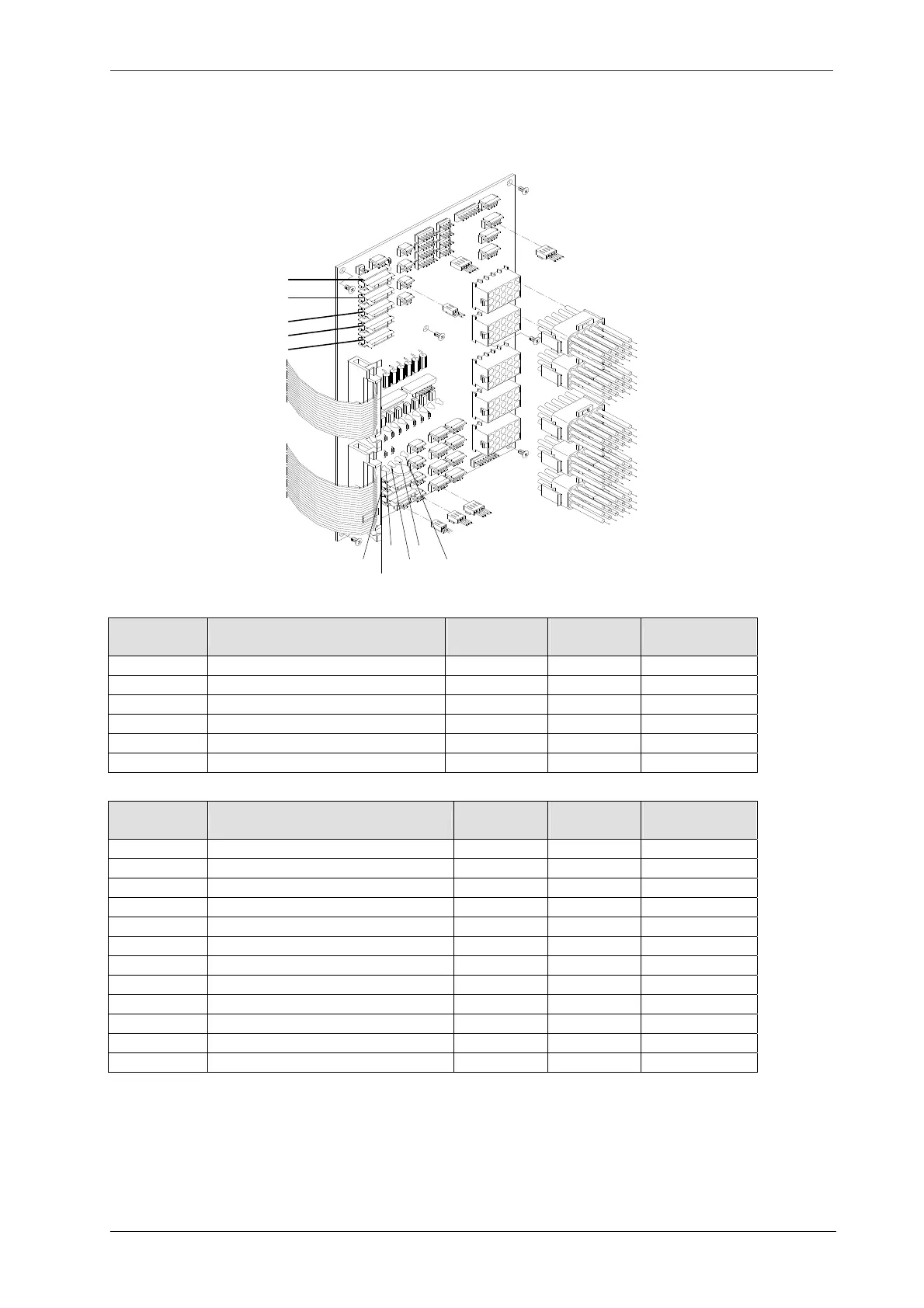

Interface Board Fuse and Indicators
Item Fuse Function
Working
Condition
Trouble
Indicator
Fuse Size
F1 (STEP B) Spare – for future use off lit 4Amp(20mm)
F2 (STEP A) Fuse for Labeling Head off lit 4Amp(20mm)
F3 STEP CLAP Spare – for future use off lit 4Amp(20mm)
F4 EDC24V Fuse for DC24V off lit 4Amp(20mm)
F6 ACIN Fuse for Main Power Input lit off 6Amp(20mm)
F7 ACOUT Fuse for Main Power Output lit off 6Amp(20mm)
Item Indicator Function
Power
“ON”
Working
Properly
Trouble
Indicator
D41 DC Power supply(5V) lit lit off
D42 DC Power supply(12V) lit lit off
D43 Power Board (12V) lit lit off
D40 Power Board (24V) lit lit off
D52 Spare – for future use lit flashing off
D53 Label Dispensed signal lit flashing off
D54 Spare – for future use lit lit -
D55 Spare – for future use lit lit -
D56 Printing Signal to Hot Stamp lit flashing off
D57 Spare – for future use lit lit -
D58 Spare – for future use lit lit -
D59 DC Motor Starting impulse lit run: off run: on
F1 STEP B
F2 STEP A
F3 STEP CLAP
F4 STEP H3
F5 DC 24V
F6 AC IN
F7 AC OUT
D41
D42
D43
D40
