CVC 310 - Page 45

CVC TECHNOLOGIES, INC. CVC 310 OPERATION MANUAL
7 - 8
D3
D4
D6
D7
D8
D9
D10
D11
LD4
LD10
LD11
LD5
LD12
LD6
D34
LD28
D35
LD30
LD1
LD7
LD13
LD14
LD8
LD2
LD9
LD3

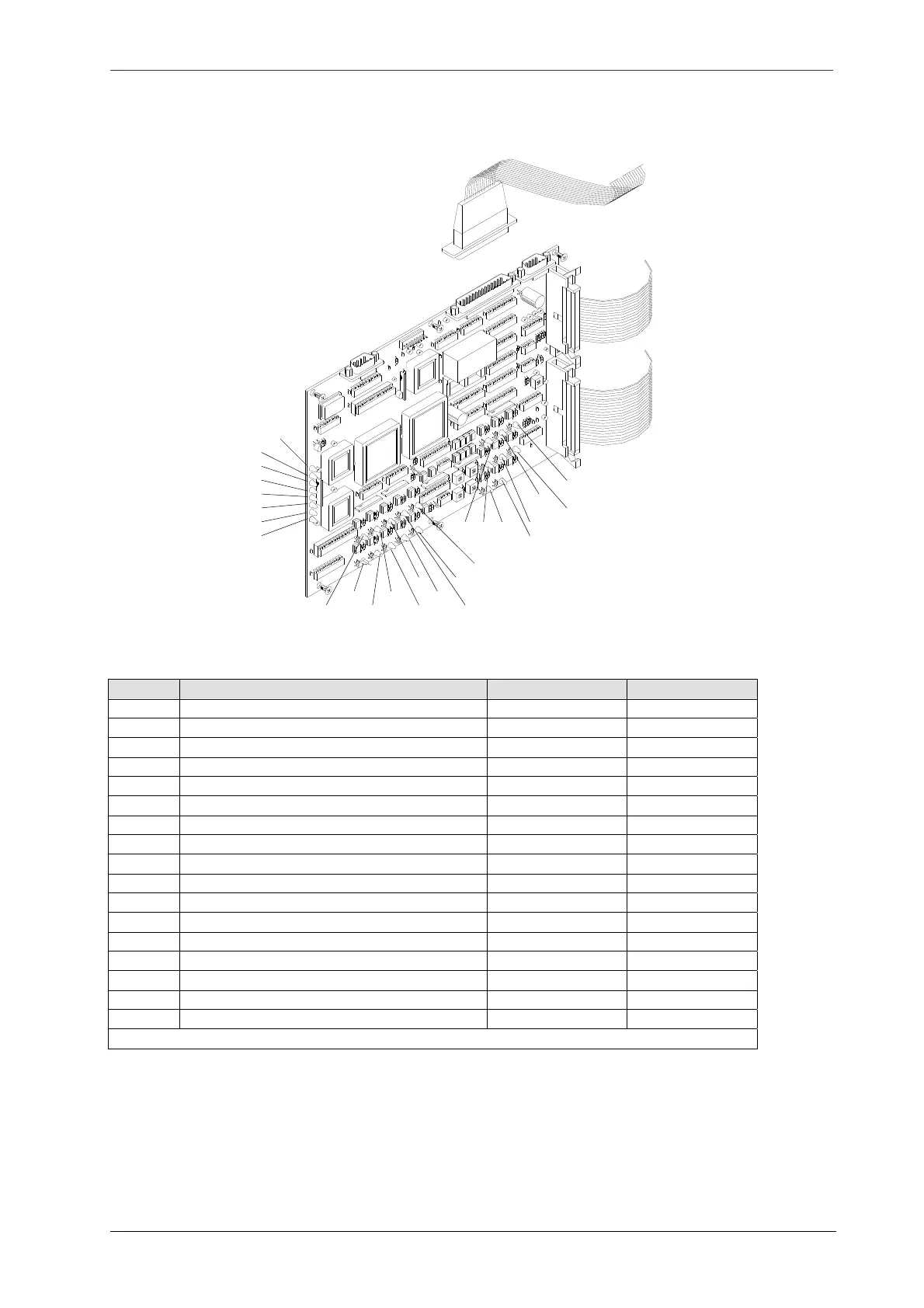

Master Board
Item Lamp Function Power “ON” On “Labeling”
D3 Labeling Head “B” (for CVC 400 only) lit off
D4 Spare – for future use off off
D6 Spare – for future use off off
D7 Spare – for future use off off
D8 Labeling Head “A”(for all models) lit off
D9 Spare – for future use off off
D10 Spare – for future use off off
LD4 Spare - for future use off off
LD5 Product Sensor lit off
LD6 Spare – for future use off off
D28 Conveyor Encoder (A) lit or off flashing
D30 - - -
LD10 Spare- for future use off off
LD11 Sensor-Push & Press Attach. off off
LD12 Spare for future use off off
D34 Conveyor Encoder (B) lit or off flashing
D35 - - -
LD1, LD2, LD3, LD7, LD8, LD9, LD13, LD14 are spares for future use.
