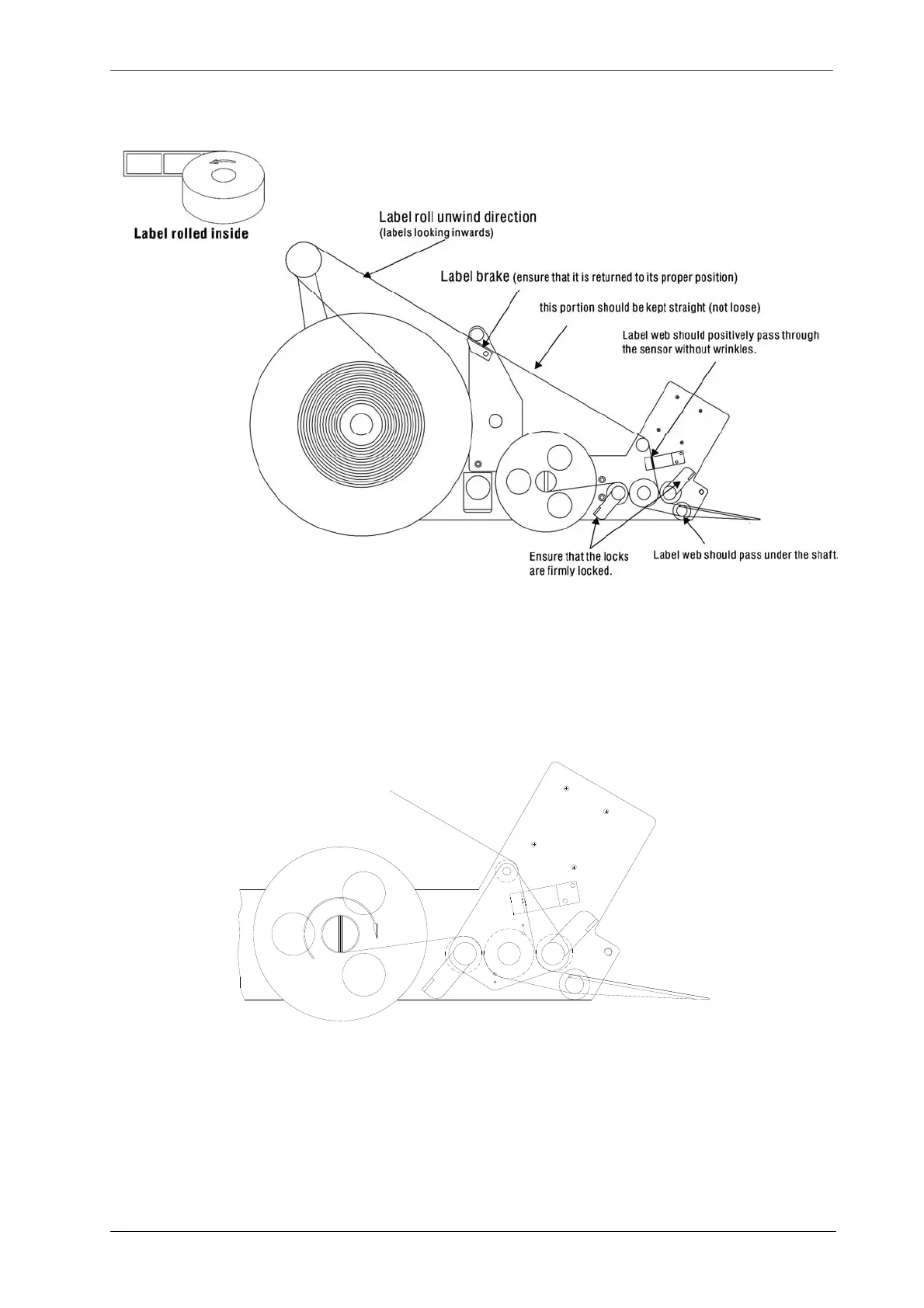

b. Label rolled inside (Fig 9.1-1b) (Copy Positions 5.6.7.8 of Label Position Chart, Fig 9.1-6).
Fig.9.1-1b
9.1.2 Rewind Spool Tension Adjustment
Use a metal clip to fasten the label web backing paper onto the rewind spool, and then manually rotate
the rewind spool one rotation in the clockwise direction to ensure a proper attachment.
Fig.9.1-2
