CVC TECHNOLOGIES, INC. CVC 310 OPERATION MANUAL
9.1.3 Label Advance Roller Lock and Rewind Roller Lock
After installing the label roll, and then to make sure both of the label advance roller lock (1) and the
rewind roller lock (2) are firmly locked (Fig 9.1-3). An improper locking will lead to an abnormal label
dispensing.
1
2
Keep the label web tensioned and straight
when locking lever.
Fig.9.1-3

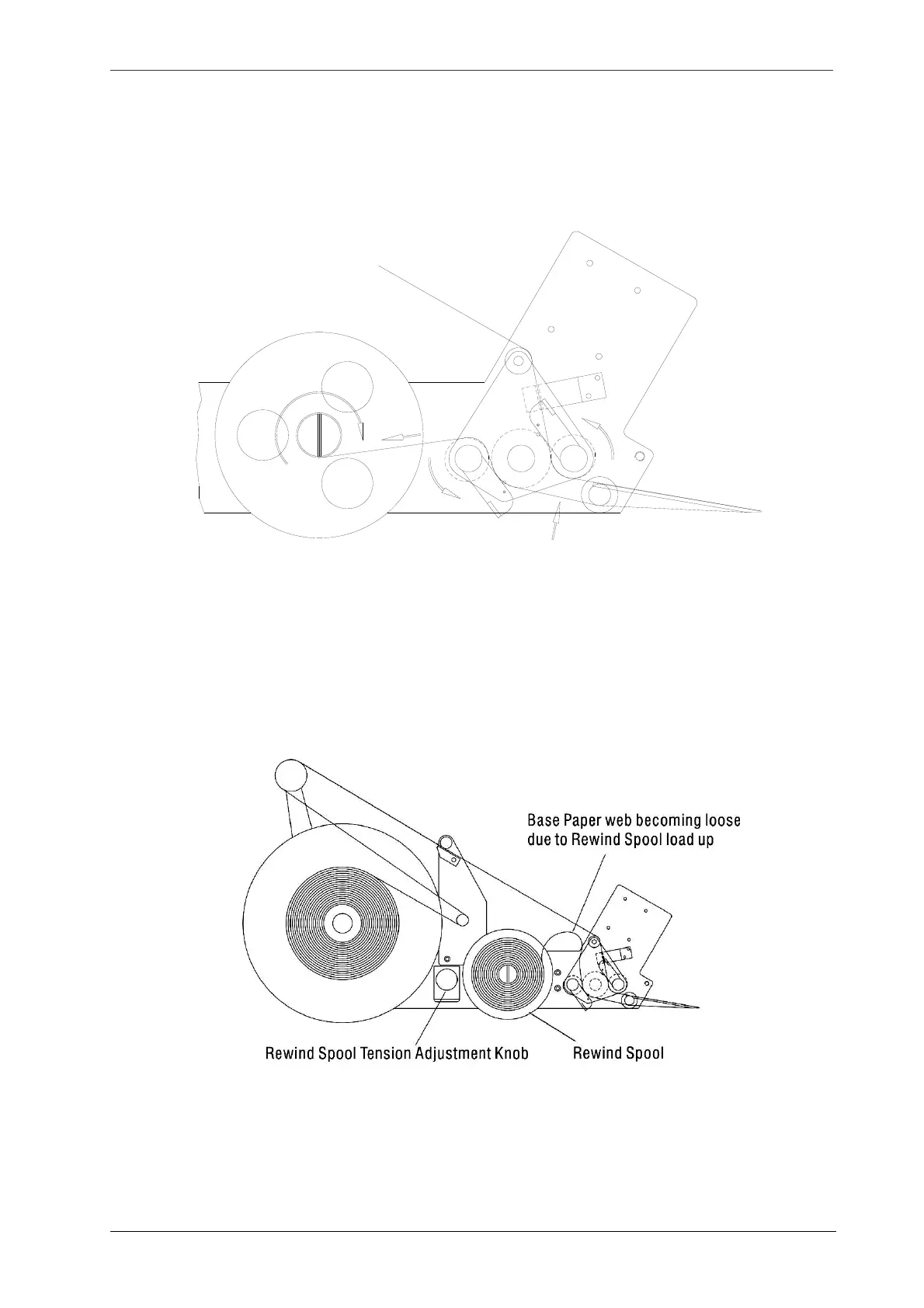

9.1.4 Rewind Spool Tension Adjustment Knob
If the web is loose during operation, it is necessary to increase the rewind spool tension with the
adjustment knob (Fig 9.1-4).
Fig.9.1-4
9 - 3
