 Sequence N 4: Face 4 and Leg 5
To introduce this bending order:
 Fill in the FACE and LEG fields as follows:
N FACE LEG CR p/d
1 1 0 __ 1/ 1
2 3 1 __ 1/ 1
3 2 1 __ 1/ 1
4 4 5 __ 1/ 1
 Press the key.
The system calculates the entire machine program (axes, functions, etc.) and
displays the sheet metal manipulations to be made before each sequence.
(See the Sheet metal manipulation diagram below).
N FACE LEG CR p/d
1 1 0 __ 1/ 1
2 3 1 __ 1/ 1 RETURN
3 2 1 __ 1/ 1
4 4 5 __ 1/ 1 SWIVEL

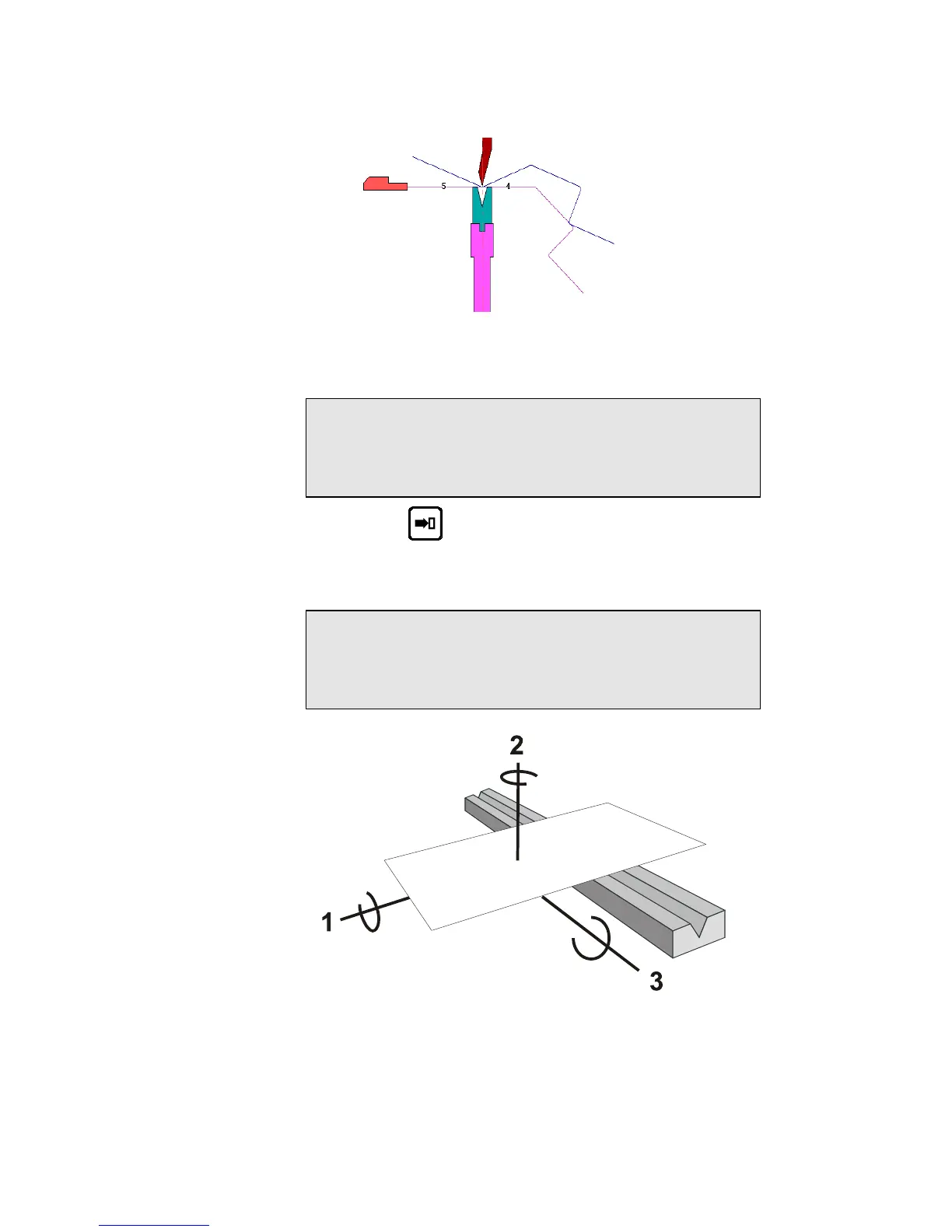

Fig. Sheet metal manipulation
1 Return
2 Swing
3 Swivel (= Swing 180° + return)
