ANNEX F: PROGRAMMING WITH L-ALPHA PAGE 49
By pressing the
key, you can consult the PRODUCT;
X;
; Y page which displays for each sequence the X and Y axes'
values (the values depend on the used material and tools).
P 1 N 1
N -X- - - -Y- CY
1 78.06 90.0° 229.90 __
2 145.51 135.0° 233.58 __ RETURN
3 58.06 90.0° 229.90 __
4 119.39 135.0° 233.58 __ SWIVEL
5 _____.__ ___._° ___.__ 0
6 _____.__ ___._° ___.__ __
7 …………
Example b
Here is an other bending order.

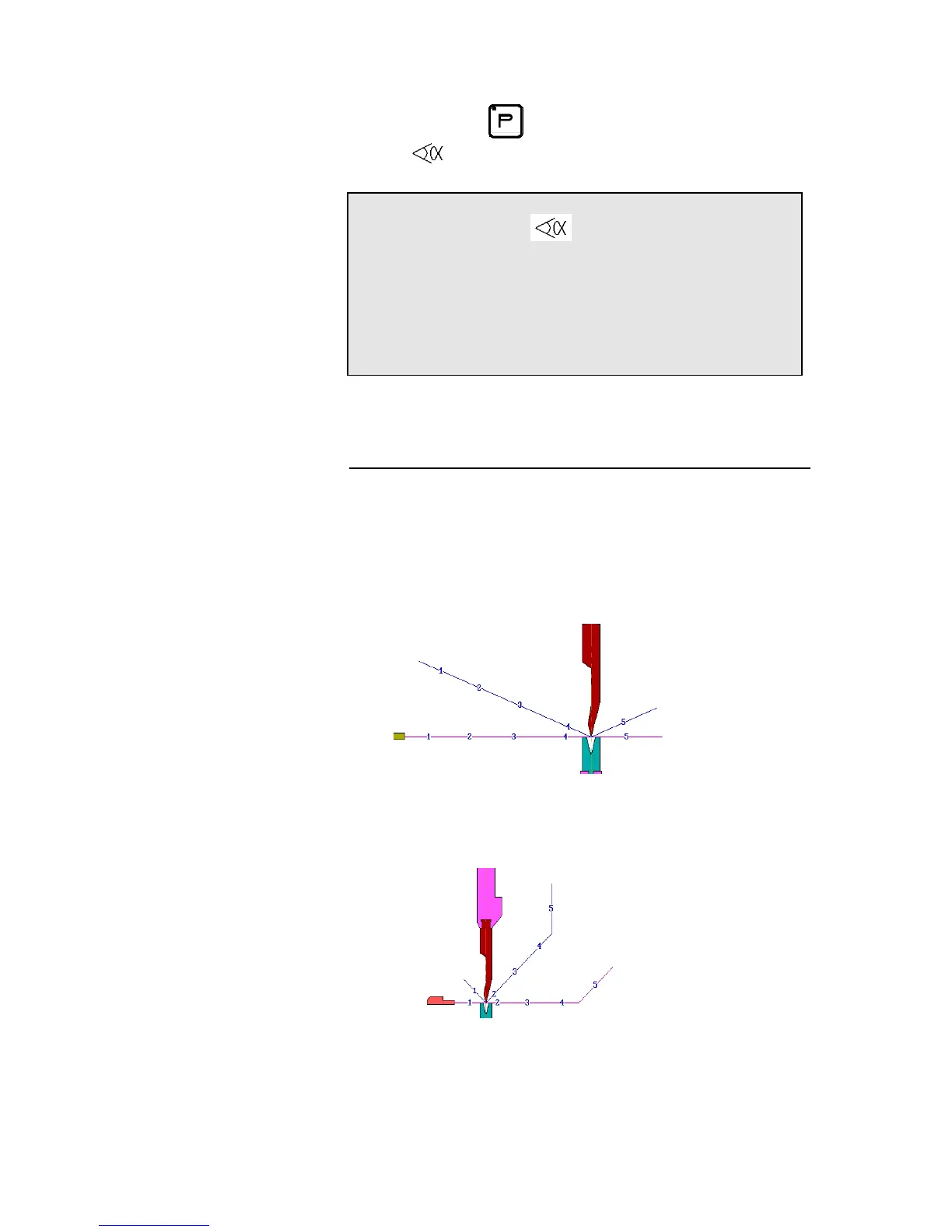

For this new bending order, the following illustrations show each sequence
before and after bending.
Sequence N1: Face 4 and Leg 0
Sequence N2: Face 1 and Leg 0
