ANNEX I: PRINT OF THE CURRENT SCREEN
PAGE 87

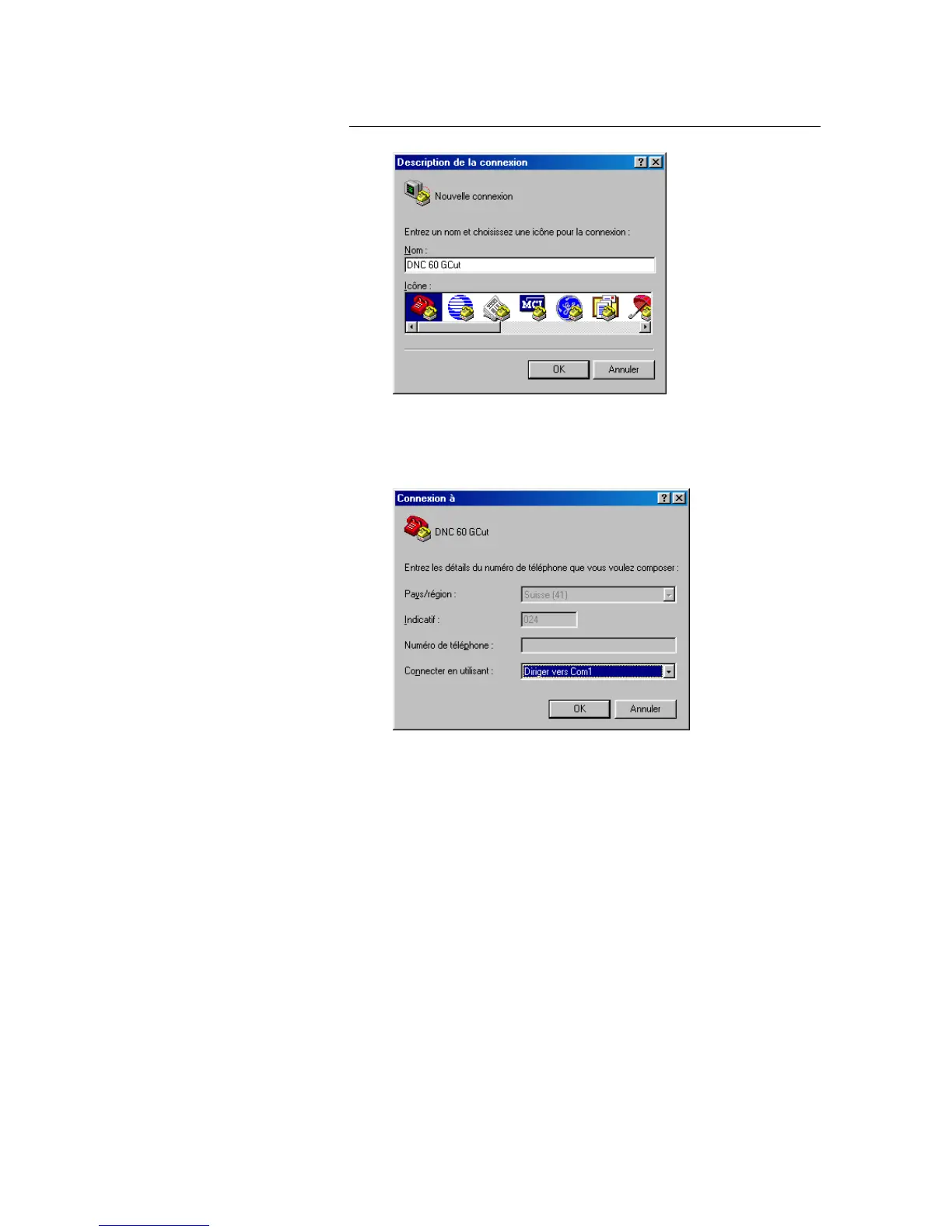

Configuration of the HyperTerminal
•
Enter a name for the file which will contain the parameter setting for
this numerical comm
and and choose an icon. You will call up this file
every time y
ou connect to the num
erical comm
and without having t
o
reset the Hyper Terminal param
eters.
•
Connect via a serial port.
