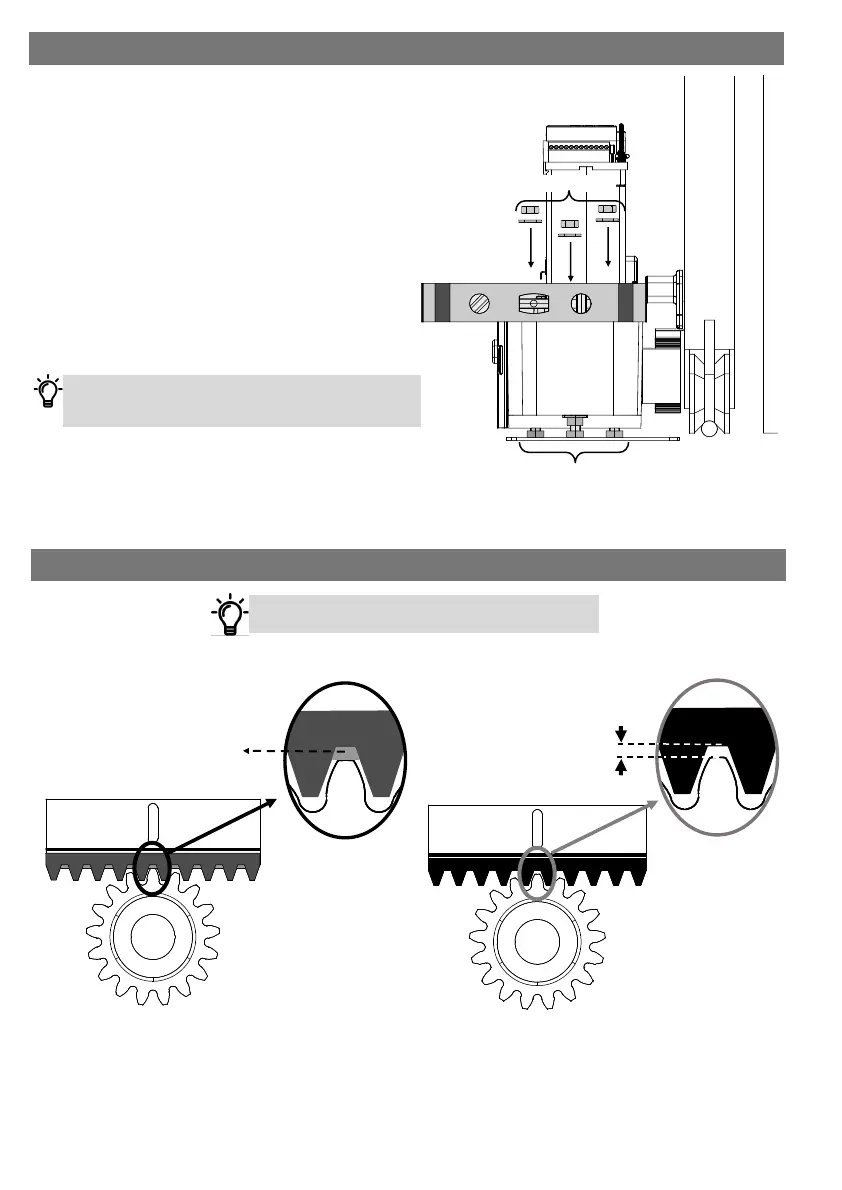

DACE RT25/50 - Mounting the Rack on the Gate

12
1. Raise the adjusng nuts ~ 5mm before mounng the
operator to allow for ne height adjustment at a later
me.
2. Mount the operator on the foundaon plate.
3. Place a Spirit Level on top of the operator base while
fastening the three securing nuts and washers ensuring
that the operator is level.
4. Manually move the gate fully open and closed very
slowly to ensure that the gate does not collide with
the operator in any way.
5. Be sure to remove any cement/debris around the pinion
gear.
Mount the operator above the ood level or, if this is
not possible, build a small protecve wall structure
in front of the operator to divert the water ow.
SIDE VIEW
Adjusng Nuts
Operator
base
SECURE OPERATOR TO THE FOUNDATION PLATE
MOUNTING THE RACK ON THE GATE
Spacing between the Rack and the Pinion
DACE Grey Nylon Rack
This rack has a 2mm ‘built in spacer’
and therefore the mounted rack
should rest on the pinion.
All Other Nylon Rack
There must be a 2mm clearance
between the mounted rack and
the pinion
2mm
2mm Built
in Spacer
Connues……...
Spirit Level
Securing Nuts
