DACE RT25/50 - Two Synchronised Operators Connected to One Set of Safety Beams

28
MAX. LOAD
300mA
WARNING!!!
ONLY CONNECT BEAMS
RECEIVER GND TO TRITEK
COM-GND
RECEIVER SAFETY BEAM (A)
WARNING!!!
ONLY CONNECT +BATT
TO ONE MOTOR AS
SHOWN
OPERATOR CONTROL BOARD NO. 1
OPERATOR CONTROL BOARD NO. 2

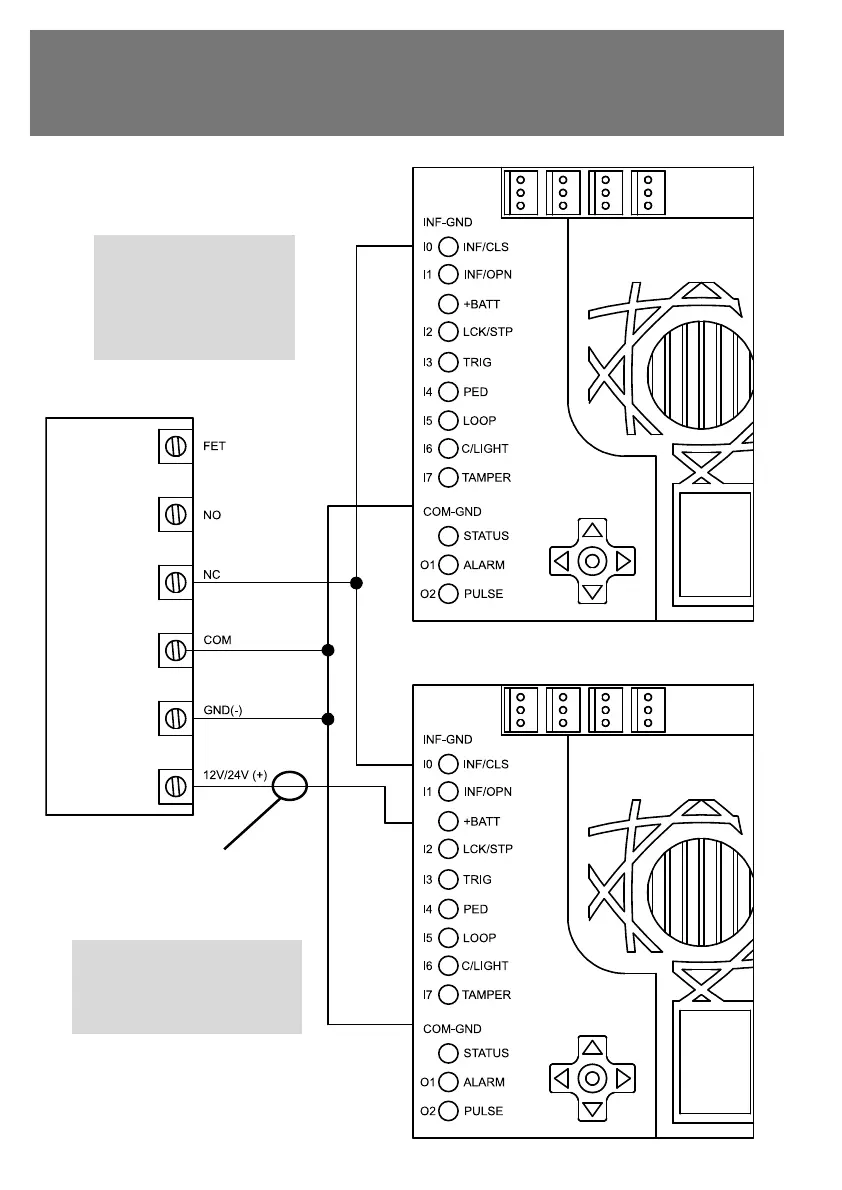

TWO SYNCHRONISED OPERATORS CONNECTED TO ONE SET OF
SAFETY BEAMS (USING BEAM RELAY OUTPUT)
