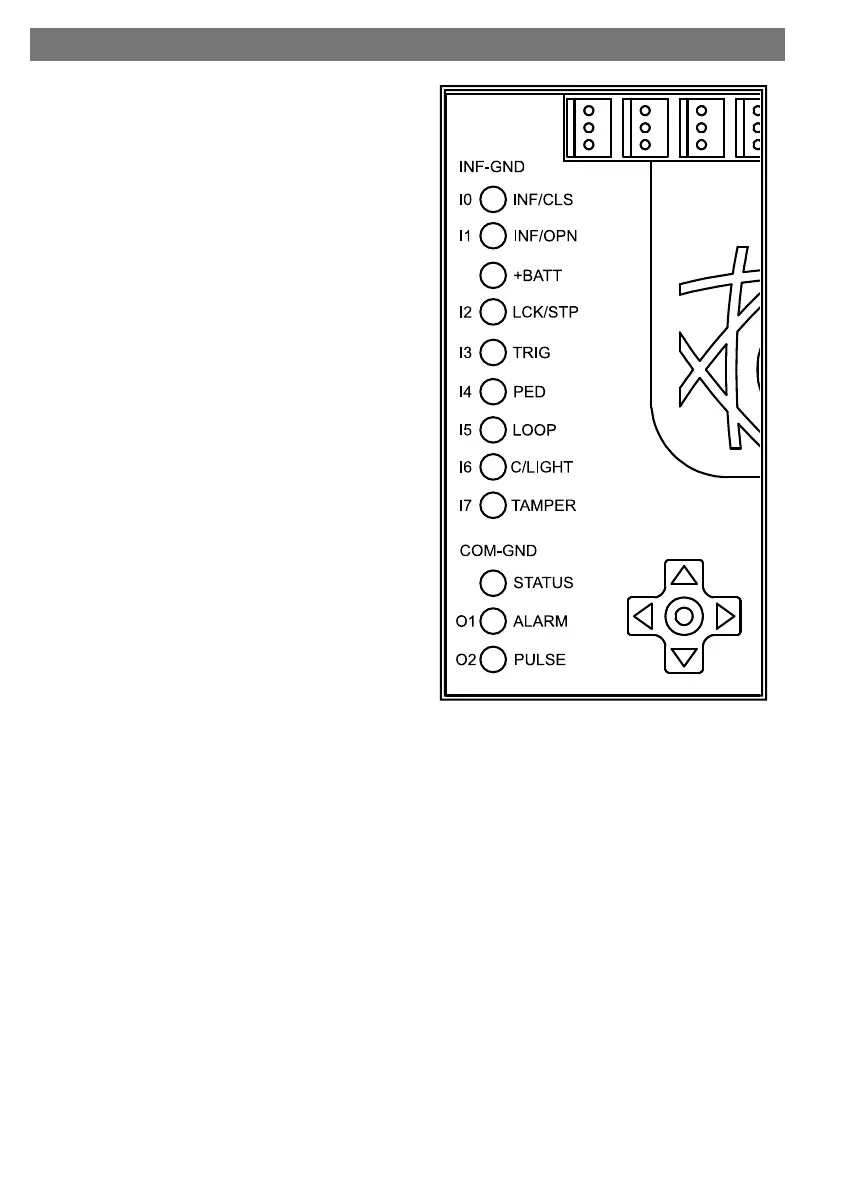

DACE RT25/50 - Overview of Low Power Inputs & Outputs

16
 INF-GND: this is a dedicated ground, used to connect
certain brands of safety beams that have the capacity of
performing a self test funcon, such as the DuraOpcs
Wireless Beams.
 INF/CLS: connect to the safety beam relay or FET output
to prevent the gate from CLOSING on a object (collision
prevenon)
 INF/OPN: connect to the safety beam relay or FET output
to prevent the gate from OPENING on an object (collision
prevenon)
 +BATT: this output is used to power up all auxiliary devic-
es. It is capable of sourcing a maximum of 300mA. CAUTION
- ensure that any equipment that is connected to this
output is capable of handling the baery voltage. When
changing from 12V to 24V baery, this output voltage will
be the same as the baery voltage.
 LCK/STP: used to acvate and deacvate Holiday Lockout
via a keypad, keyswitch or receiver.
 TRIG: connect a keypad, keyswitch, receiver or intercom
buon to this input to allow for FULL opening of the gate.
Explore the LCD menus to adjust the many dierent op-
ons available.
 PED: connect a keypad, keyswitch, receiver or intercom
buon to this input to allow for PARTIAL opening of the
gate. Explore the LCD menus to adjust to the many dier-
ent opons available.
 LOOP: this input is typically used in a business complex
where a vehicle drives over a Ground Loop to trigger the
gate open. This input can be made inacve through the
Time Manager feature.
 C/LIGHT: the Courtesy Light input can be switched on
with a keypad, receiver or a N/O( normally open) push buon. It is used to switch on lighng through the relay
module (SA001 - OPTIONAL). Explore the LCD menus to adjust the many dierent opons available.
 TAMPER: to alert any tampering, the Ulma operator has a receptacle to t an oponal Microswitch that can
be connected to the Tamper & Ground inputs. This will trigger the alarm output if lid tampering is detected.
 COM-GND: connect all ground wiring from auxiliary equipment to this input.
 STATUS: t an external LED in a convenient place to indicate when the gate is closed, open or in moon.
 ALARM: this is an output that can be connected to a wired transmier to trigger the house alarm or a relay
module that drives a siren. It will be triggered if any of the security funcons are breached. Explore the LCD
Security menus to adjust the many dierent opons available.
 PULSE: a very useful output that will trigger every me the gate is operated. It is typically used to trigger exter-
nal devices such as a buzzer, garden beams bypass or even to synchronise two gates.
OVERVIEW OF LOW POWER INPUTS & OUTPUTS
