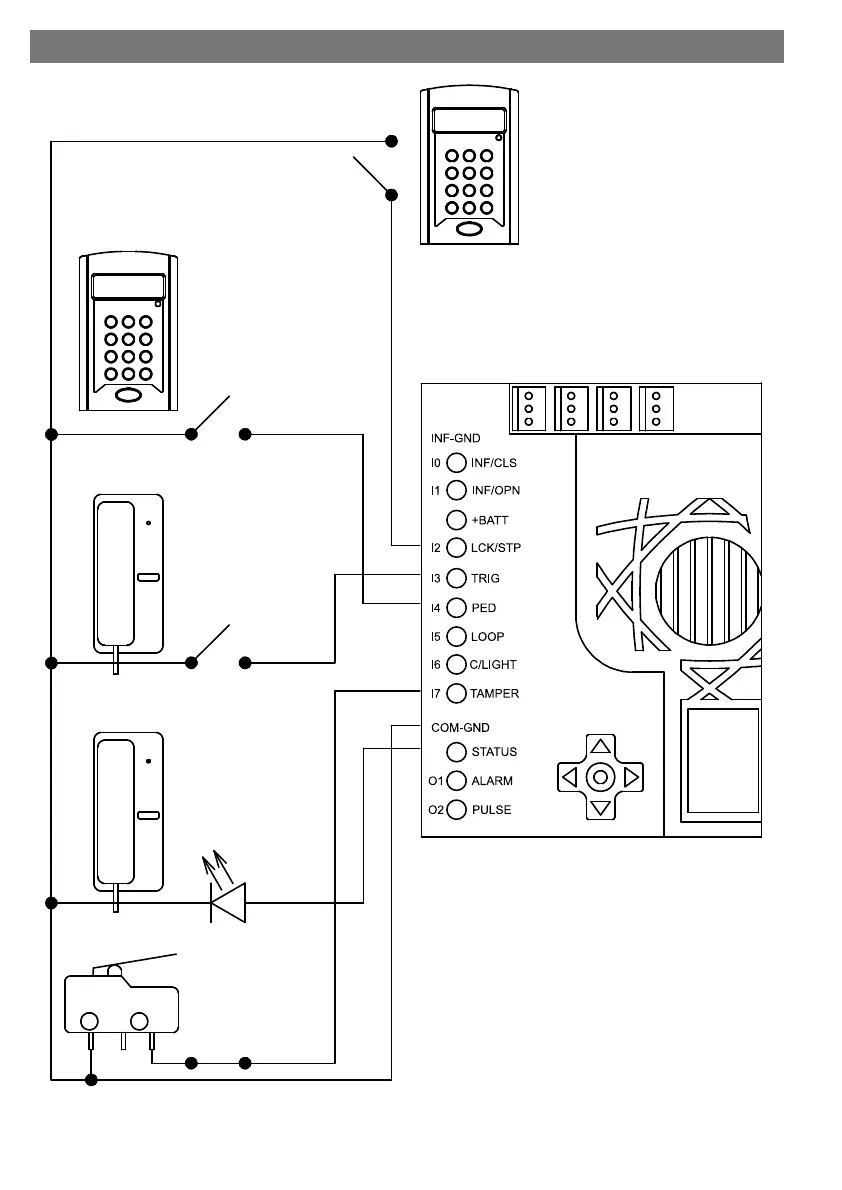

DACE RT25/50 - Connecting Common External Devices

24
HOLIDAY LOCK OUT
(Keypad, Receiver,
Keyswitch)
N/O
(Normally Open)
N/O
(Normally Open)
N/O
(Normally Open)
N/C
(Normally Closed)
Tamper Switch is
CLOSED when the
lid is removed
PEDESTRIAN OPENING
(Keypad, Receiver,
Keyswitch)
FULL OPEN
(Intercom)
STATUS LED
(Intercom)
TAMPER SWITCH
CONNECTING COMMON EXTERNAL DEVICES
