Daewoo Novus M2SEF - Air Suspension Seat; Adjustment of the Seat; Height and Tilt Adjustment Lever; Back Angle Adjustment Lever

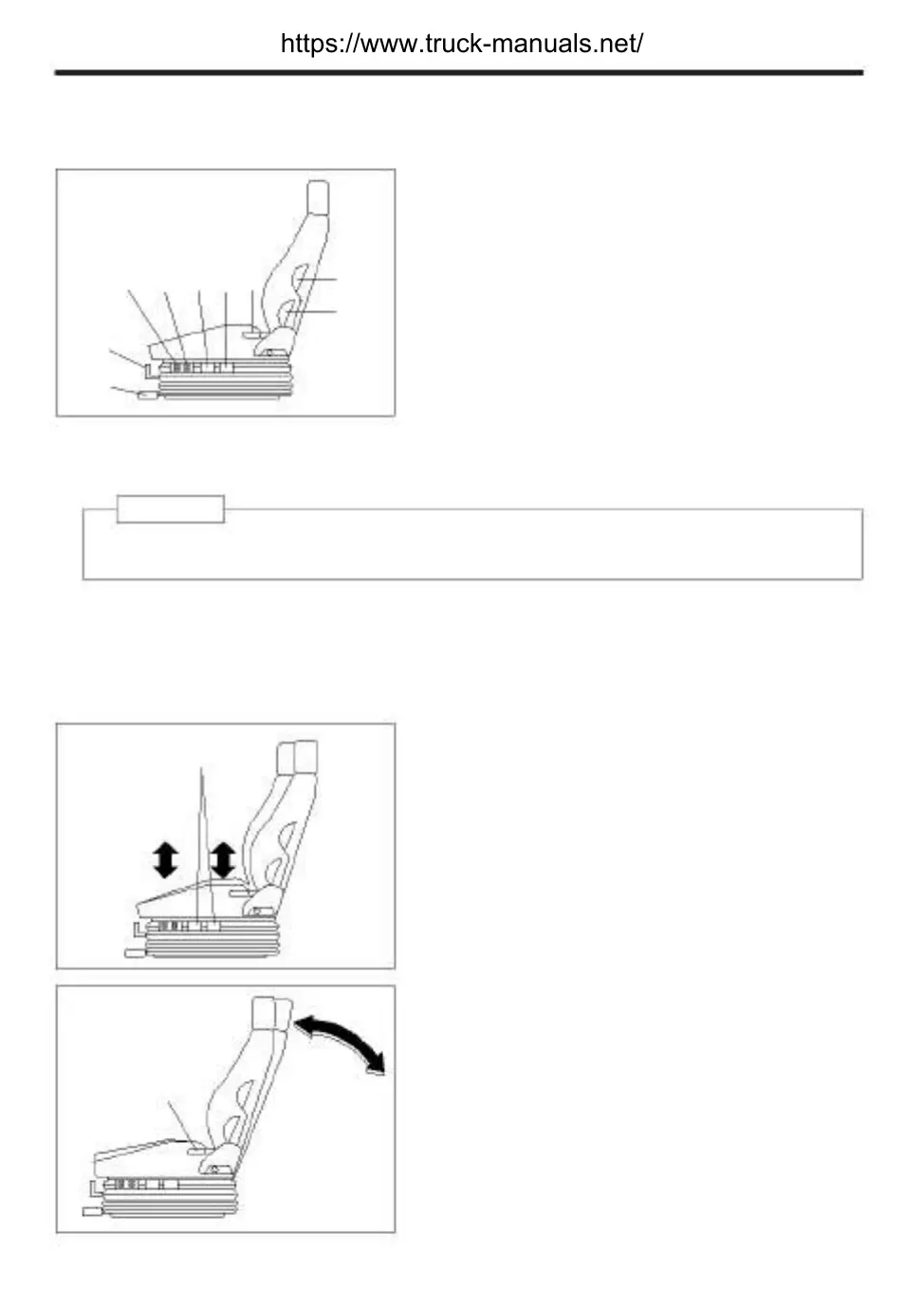

2. AIR SUSPENSION SEAT(option)
1.
2.
3.
4.
5-121 MISCELLANEOUS CONTROLS AND OPTIONS
Seat lock lever
Slide adjustment lever
Lumbar support adjustment buttons(or lever)
Lumbar support adjustment buttons(or lever)
1
2
3
4
5
67
9
8
MTF0150
5.
6.
7.
8.
9.
Height and tilt adjustment lever(forward)
Height and tilt adjustment lever(backward)
Back angle adjustment lever
Lumbar support air pack(lower)
Lumbar support air pack(upper)
Adjustment of the seat
*
1. Seat lock lever: Use it when you need to secure the seat.
2. Slide adjustment lever: This lever is used for moving the seat forward or backward.
Caution
If the lever 3, 4, 5, or 6 is manipulated after the seat lock lever has been locked, the seat lock lever is put under
overload. To release it, depress the brake pedal to release air from the air tank, then manipulate the seat lock lever.
3, 4. Lumbar support adjustment buttons: These buttons are used for properly adjusting the seat to
your posture.
Manipulating of the buttons 3: Use the upper button when supplying air for the air pack 8, and
use the lower button when releasing air from it.
Manipulating of the buttons 4: Use the upper button when supplying air for the air pack 9, and
use the lower button when releasing air from it.
5, 6. Height and tilt adjustment lever(5: forward, 6:
Height and tilt
adjustment lever
backward)
Lifting up of the lever will adjust the seat as
shown; pulling down of the lever will bring it back
5 6 to its original position.
MTF0160
7. Back angle adjustment lever
This lever is used for adjusting the seat back to
obtain the desired back angle.
Back angle
adjustment lever
MTF0170
