5-148 MISCELLANEOUS CONTROLS AND OPTIONS

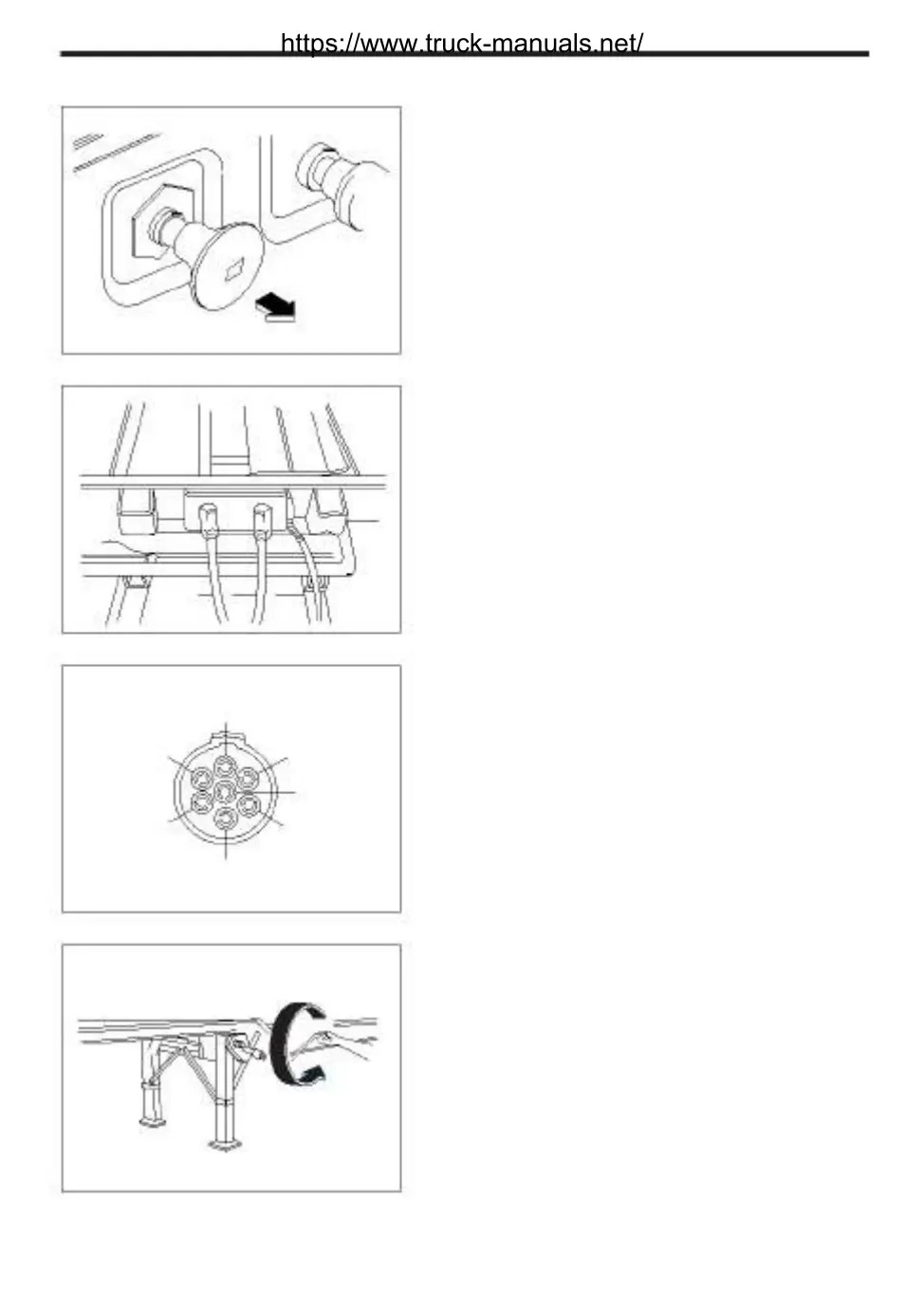

3. Pull the parking brake valve of the tractor
before connecting the air hoses.
Pull the parking brake valve of the trac-
*
tor, and the trailer will be subjected to
braking force when connecting the air
hoses.
RLE AE ES
MTA0290
4. Be sure to connect the air hoses of the same
color.
a. Blue: Service brake line
b. Red: Emergency brake line
c. Jumper cable: Harness
If air leaks is found from the connecting
a
b
c
MTF0460
*
sections after connecting the air hoses,
do again the connecting operation.
a
5. Jumper cable(Harness)
a. White: Earth b.
Black: Spare
c. Yellow: Turn signal lamp(left side)
g
f
e
b
d
c
MTF0470
MTF0480
d. Red: Stop lamp
e. Green: Turn signal lamp(right side)
f . Brown: Tail/license plate lamp
g. Blue: Back up lamp
6. Turn the lag gear crank handle anti-clock-
wise to insert support leg(in the case that
the trailer is not of a mechanical type).
