5-122 MISCELLANEOUS CONTROLS AND OPTIONS

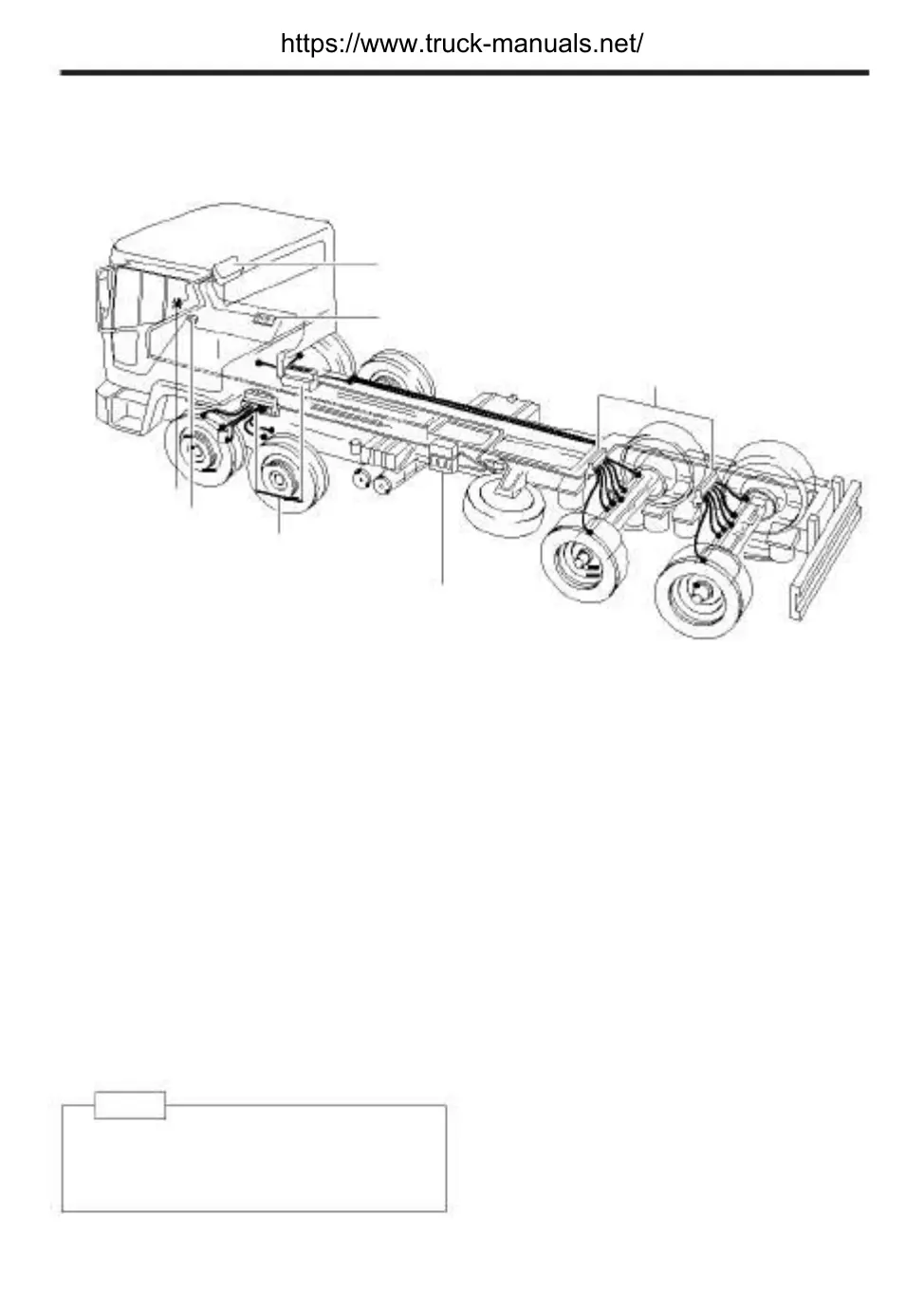

3. AUTO GREASER(option)
1
2
3
6
5
3
4
1. Control unit
2. Fuse box
3.Distributor
4. Gear pump unit
5. Starter switch
6.Indicator lamp
Basic rules of operation
•
Control unit
MTF0180
•
•
Gear pump unit
This unit keeps operating for 154 seconds at
pressure of 37.5 bar and supply oil for the
bypass through the main line.
- Interval of oil supply: 0.5~11 hours
- Manual operation can be performed. But
do not re-operate it within 5 minutes after
each operation.
Distributor
This receives grease from the gear pump and
feeds the grease to individual oil fillers at
pressure of 5 bar after the gear pump stops
working.
- The size of nipple depends on oil fill capac-
ity. (0.1, 0.2, 0.4, 0.6cc)
Note
When any trouble is met with the automatic oil
distribution system, do not hesitate to contact your
nearest workshop or service center of the
manufacturer(Vogel).
•
•
This is an electronic device designed to de-
tect the internal part of the system for its func-
tions and troubles and to control its opera-
tion. Care should be taken to prevent the
entry of water or moisture. When the key is
set to the "ON" position, the pump starts its
operation and the indicator lamp is on for 3
seconds. If the indicator lamp would not go
out 3 seconds after the key is set to "ON", or
it is turned on while in operation, it means that
the system has been in trouble.
Pressure switch
This is installed to the bypass located
farthestfrom the pump. When the residual
pressure
rating inside the grease line is within 252.5
bar, the indicator lamp comes on. (It can
detect oil leakage from the pump and grease
line.)
Grease replenishment intervals
Specifications of grease: NLGI GRADE
000,00
- The oil reservoire should be filled with
fresh grease up to the MAX line every 2
months.
