Daewoo Novus M2SEF - Zf Transmission; Construction and Power Flow Diagram

5-127 MISCELLANEOUS CONTROLS AND OPTIONS
5. ZF TRANSMISSION

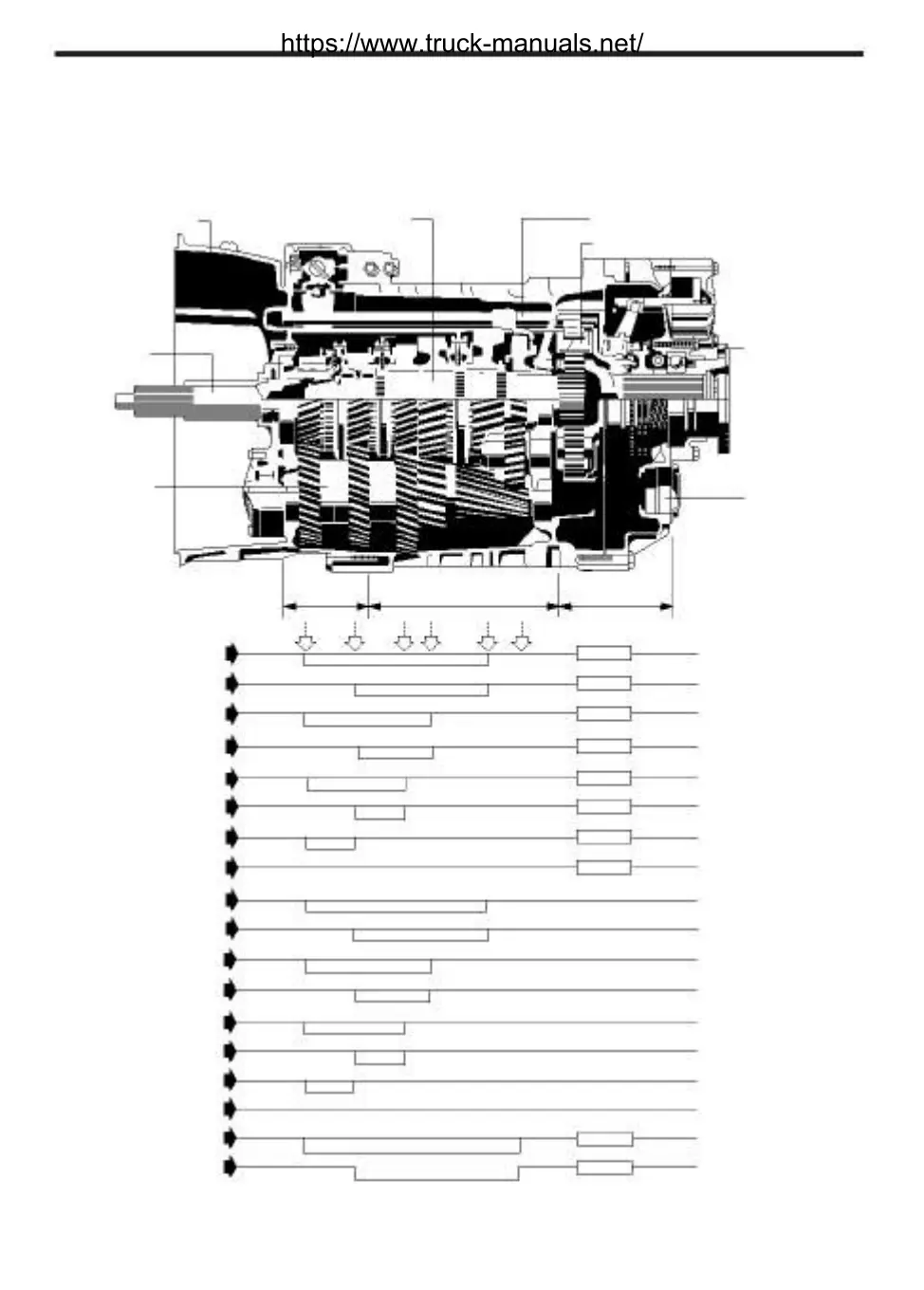

1) Construction and power flow diagram
Clutch housing Main shaft Selector fork
Planetary gears for range
change group
Input shaft Output shaft
Lay shaft
P.T.O.
Splitter 4-speed section with Range
group reverse gear change group
H
1st gear
L
H
2nd gear
L
H
3rd gear
L
H
4th gear
L
H
5th gear
L
H
6th gear
L
H
7th gear
L
H
8th gear
L
H
Reverse gear
L
MTF0280
