2. OPERATION OF CAB TILT
MTA1181
1-5 HOW TO HANDLE THE VEHICLE

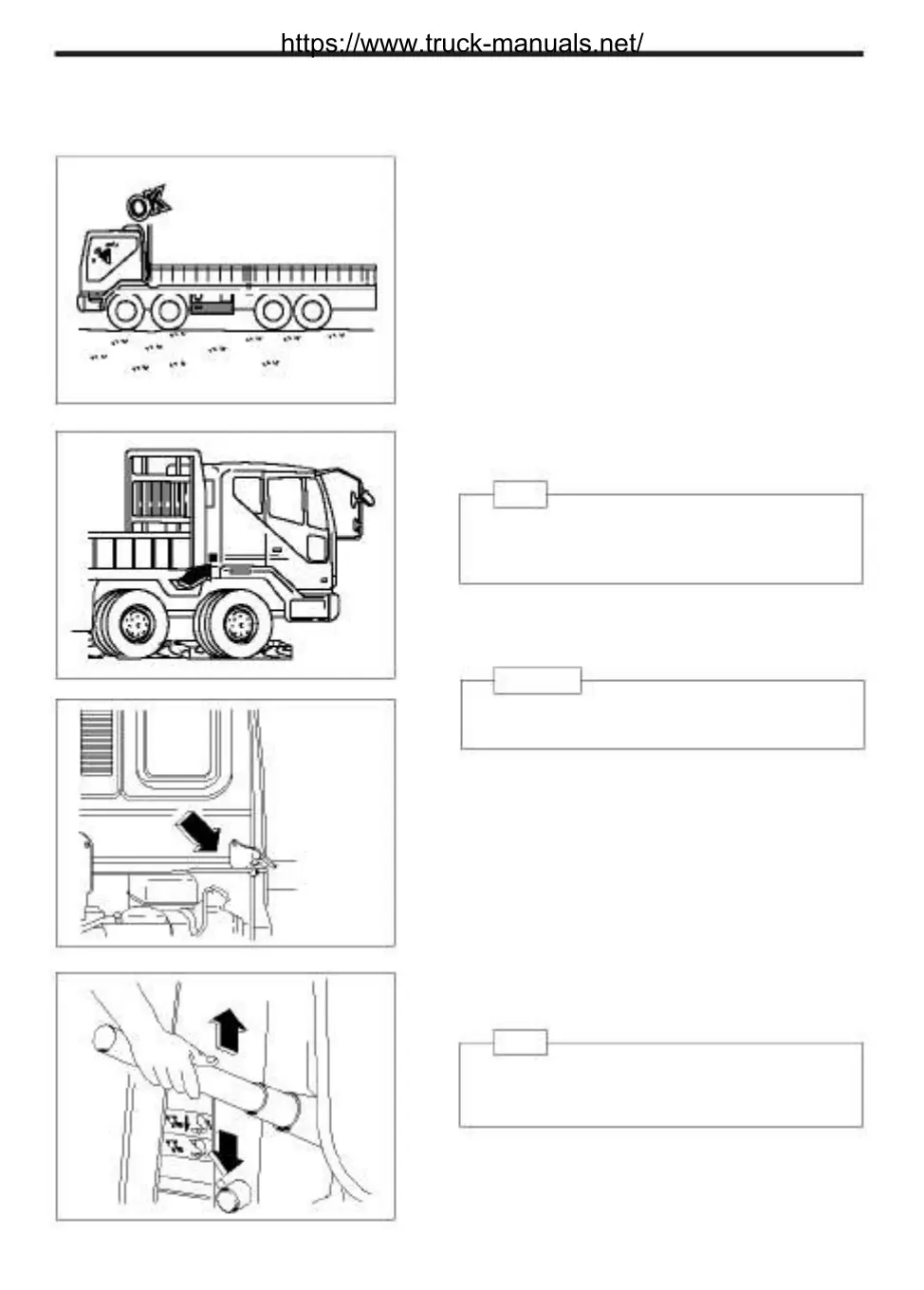

1) Preparation for cab tilting
(1) Place the vehicle on level ground and ensure
that there is a sufficient space in front of and
above the cab. And then, position starter switch
"ON".
(2) Set the parking brake firmly.
(3) Set the gearshift lever to neutral position.
(4) Keep interior of the cab free from fragile articles.
Close the doors securely.
(5) All the wheels should be choked.
(6) Re-check if there is any person in the cab.
(7) Open the cab according to the following instruc-
tions.
Note
Read thoroughly "CAB TILT OPERATING INS-
TRUCTIONS" affixed at the rear right-hand side of
the cab before manipulating it.
• Recommended cab tilt oil
Specifications : EQUIVIS ZS15(manufactured
by ISU)
MTA1191
Caution
Be sure to use recommended cab tilt oil replenish-
ment.
2) How to lift the cab
(1) Pull forward lock lever located at the lower right-
hand side of the rear of the cab while lifting the
hook
lock lever
MTA1260
hook to release lock.(Except for the vehicle that
the hydraulic cab lock option system is applied)
(2) Turn the direction change lever installed onto
the pump located at the rear lower right-hand
side of the cab to set it to "U" position.
(3) If you insert cab tilt lever into pump socket and
move it up and down, the cab will ascend.
Note
Although hydraulic pump does not work at the first
time, continue the manifulation as above, then the
cap will be tilted.
MTA1250
