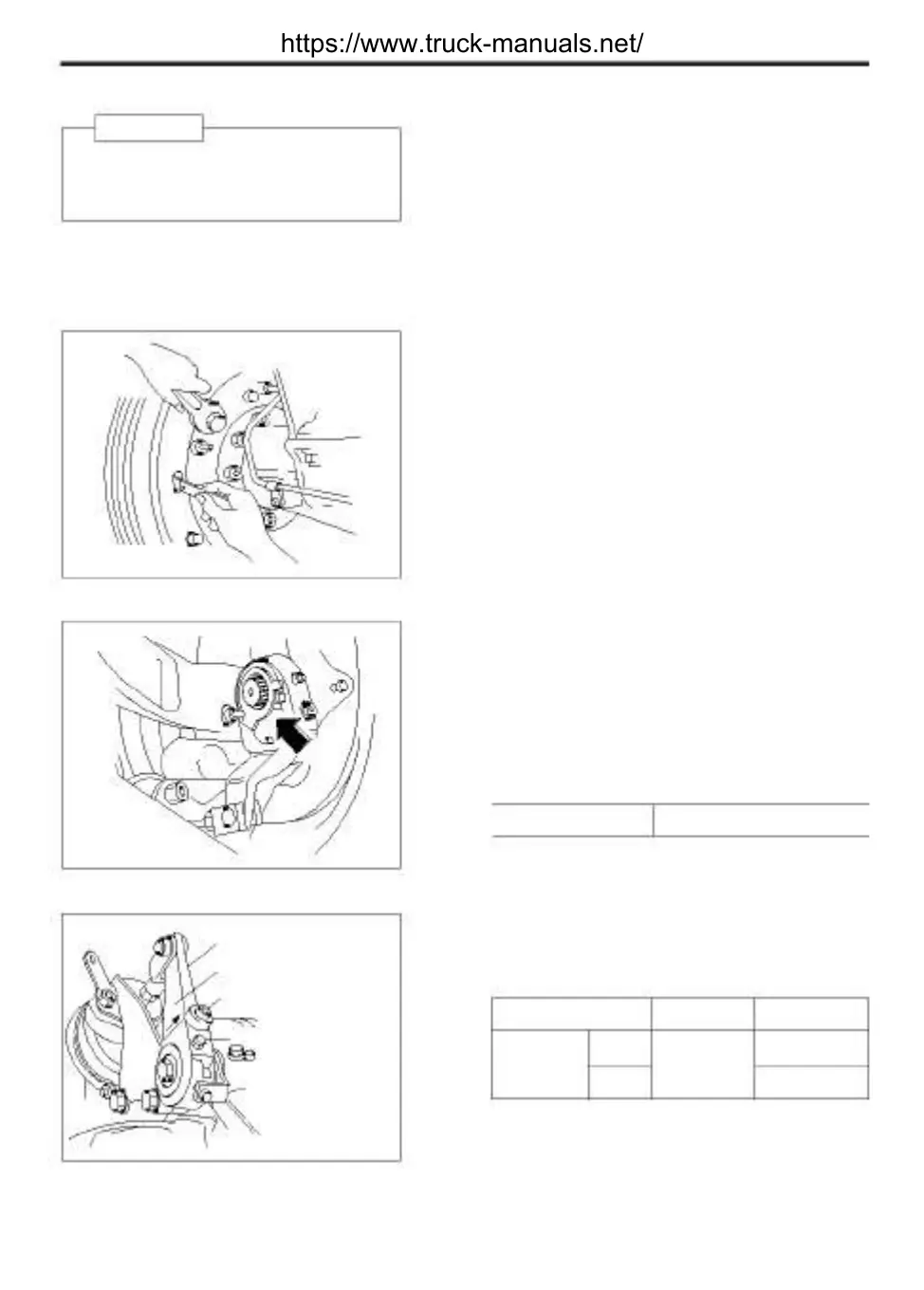

3-85 INSPECTION AND MAINTENANCE
Caution
Frequently check the check hole of back
plate for the amount of brake lining abra-
sion.
MTC0320
16) Adjustment and control of brake
The use of brake system with excessive brake
lining clearance is dangerous as the brake per-
formance decreases with an increase in the lin-
ing clearance.
The brake lining clearance should be checked and
adjusted regularly(every 40,000km).
(1) Inspection of brake lining wear
1. Check the brake linings for wear through the
check hole.
2. If the section of the brake linings becomes
semicircular, it indicates excessive wear
beyond the limit. Frequently check and re-
place them, and contact your nearest
Daewoo dealer, if necessary.
(2) Adjustment of brake lining clearance
• Full air type
Insert a 0.3mm feeler gauge into the lining
clearance through the check hole and ad-
just with the slack adjuster connected to the
power chamber or spring chamber, so that
the feeler gauge fits snugly into the clear-
ance.
Lining clearance 0.3mm
MTC0330
1
2
3
1. Slack adjuster
unit
2. Carving a seal
of arrow
(3) Auto lining clearance adjustment device
Auto lining clearance adjuster is designed to au-
tomatically adjust brake lining clearance.
4
3. Adjustment
screw
4. Greasing point
5. Anchor bracket
Lining
Item
Front
All vehicles 24 ton dump
0.5~1mm
0.6~0.9mm
7
6
5
6. Locking screw
control arm
7. Brake chamber
MTC0340
Clearance Rear 0.3~0.6mm
