5-129 MISCELLANEOUS CONTROLS AND OPTIONS

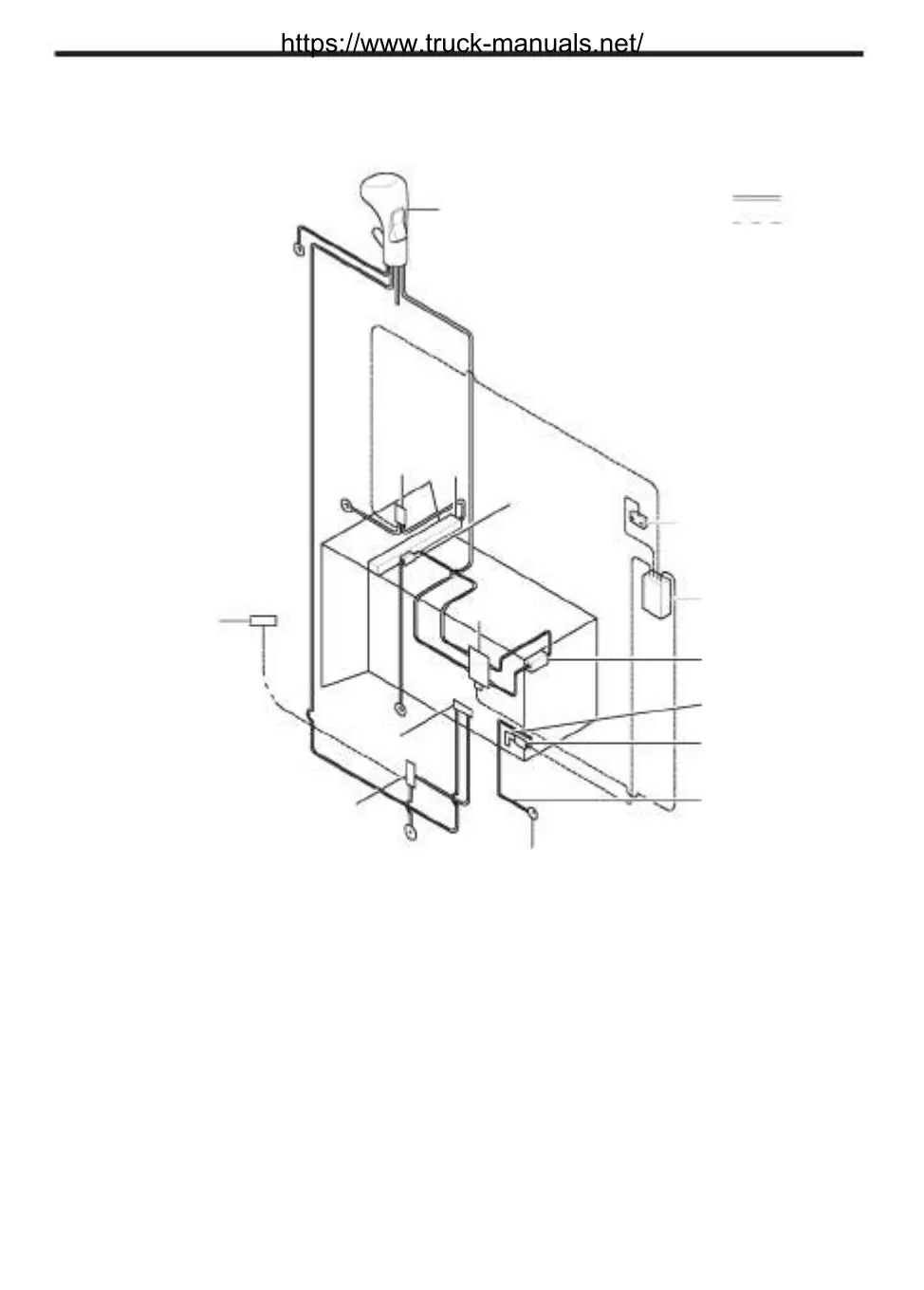

3) Connection diagram for pneumatic control(ZF 16S-221)
: Air line
Main air
1
: Harness
Range
Splitter
12
5
4
11
14
13
2
Air tank
3
15
10
6
7
8
9
1. Knob
2. Splitter group relay valve
3. 4/2 way valve
4. Cut-off valve
5. Shift housing
6. Intergated shift cylinder for range-change group
7. Speed L-joint
8. Speed limiter
9. Speed meter cable
10. ECU
11. Battery
12. 3/2 way valve
13. Magnetic valve
14. Clutch pedal
15. Tacho meter
MTF0291
