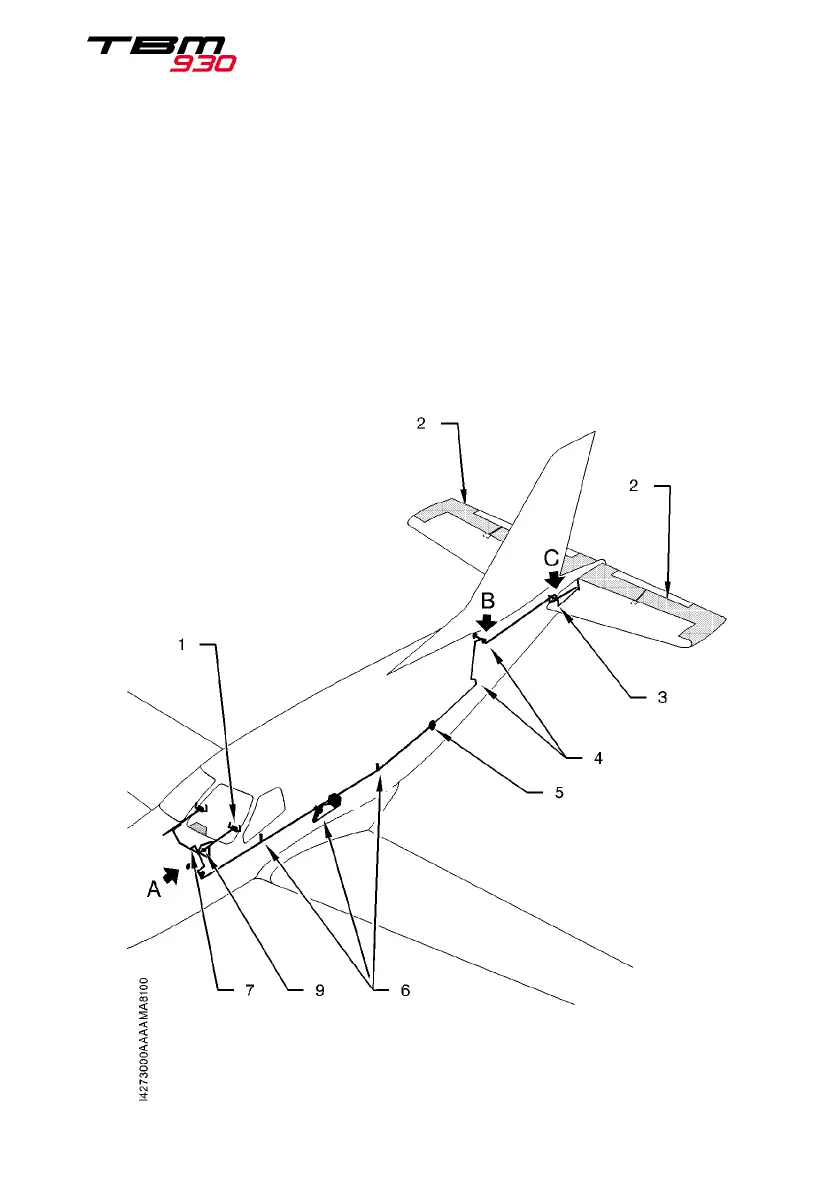

Figure 7.4.3 (1/2) - Elevator
1)
Control
wheel
assembly
2) Elevators
3) Lever assembly, fuselage rear part
4) Elevator bellcrank
5) Rod with presseal connection
6) Lever assembly under floor
7) Pedestal assembly
8) Actuator
9) Stick shaker
