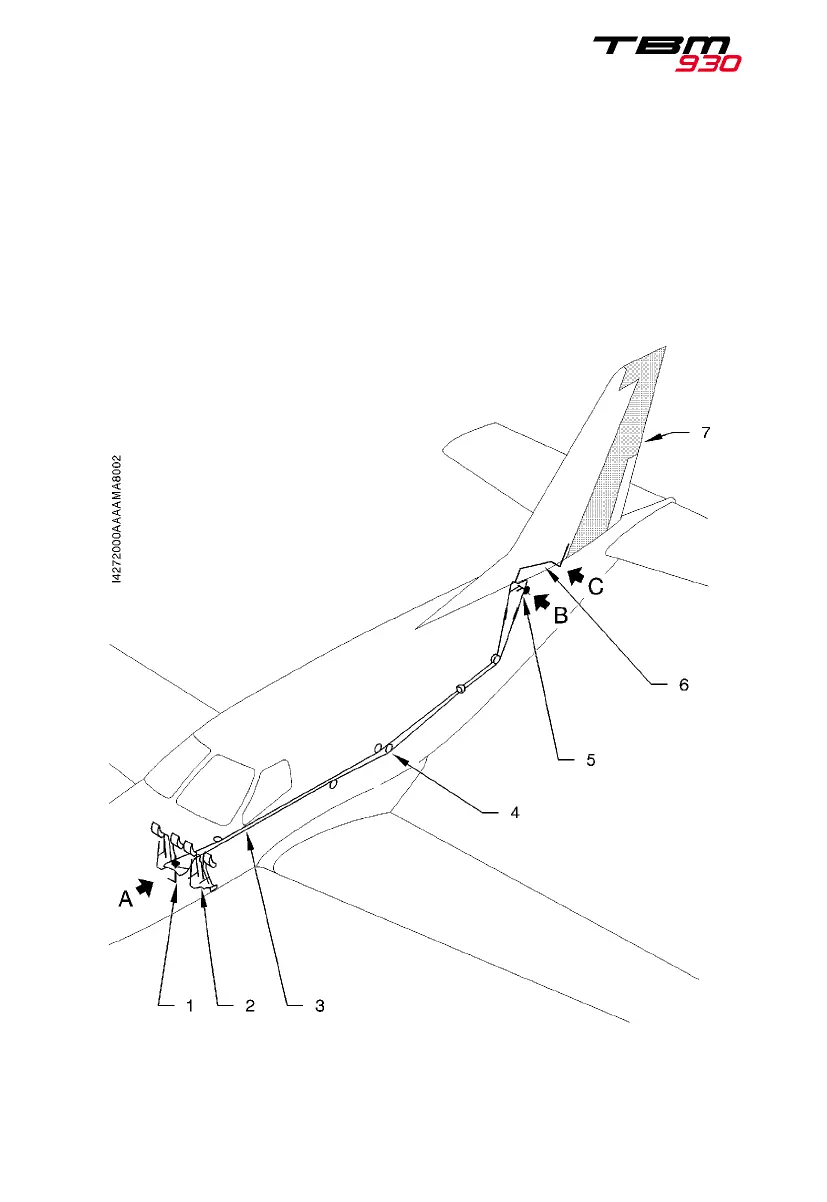

Figure 7.4.5 (1/2) - Rudder
1)
Roll
/
rudder
combination
bellcrank
installation
2) Rudder pedals assembly
3) Control cables
4) Pulleys
5) Rudder lever assembly
6) Rod
7) Rudder
8) Nose gear steering rod
