Daher TBM 930 - Page 599

To Next Page

To Previous Page

Pilot's Operating Handbook

Section 7

Description

Edition 1 - January 15, 2018

Rev. 4

Page 7.8.19

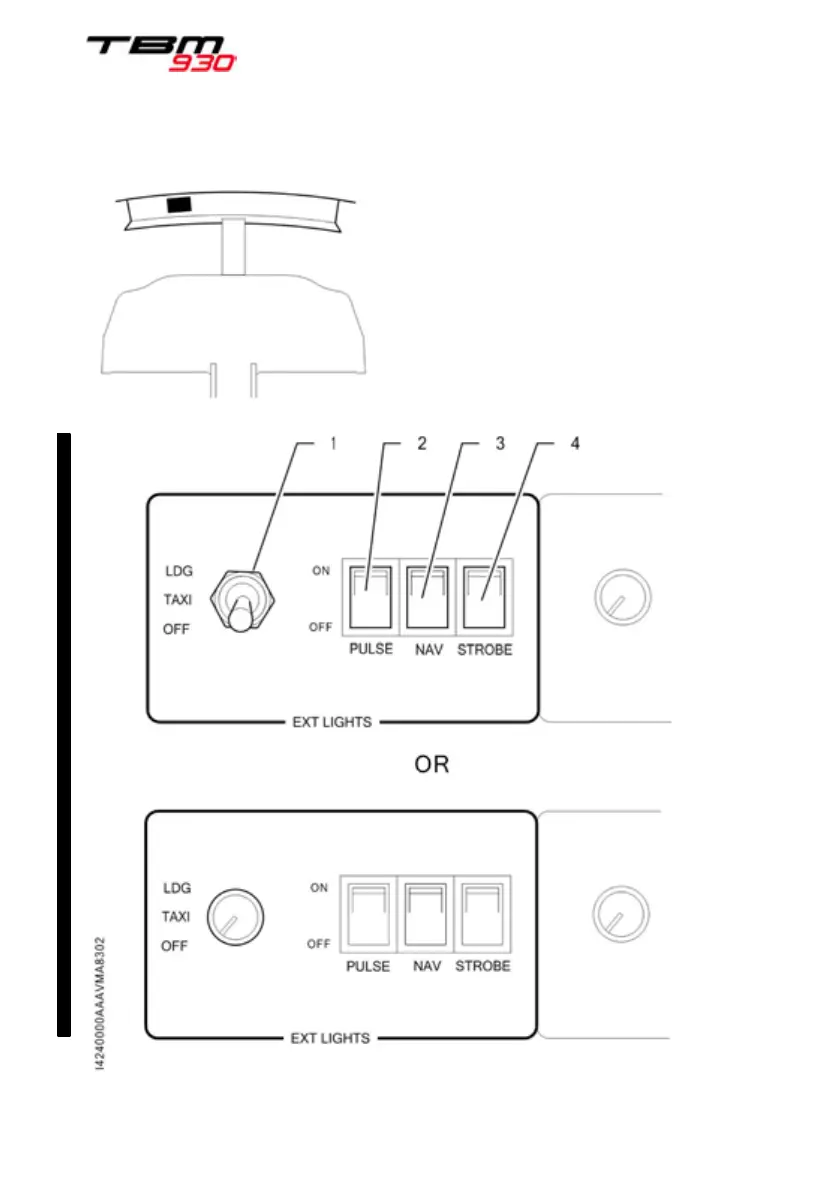

Figure 7.8.6 - External lighting controls

Taxi

and

landing

light

switch

2) Pulselite system switch

3) Navigation lights switch

4) Strobe lights switch

PIM - DO NOT USE FOR FLIGHT OPERATIONS
