Pilot's Operating Handbook
Section 7
Description
Edition 1 - January 15, 2018
Rev. 5
Page 7.9.11
Air temperature
exp
ectations
Cabin panel selectionCockpit panel selection
Cockpit
area
Warm
Cabin
area
Warm
Results

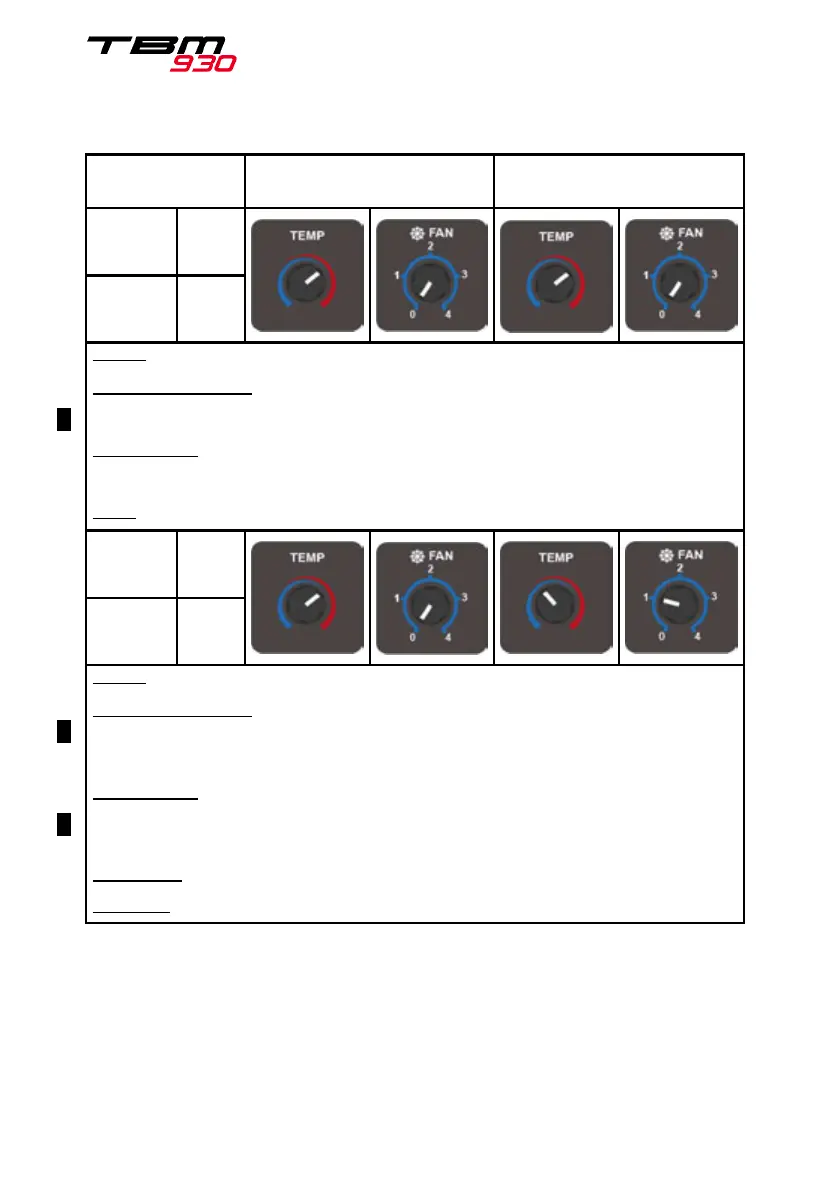

Mixed Bleed Air Circuit :
Warm air is distributed to both the cockpit and cabin equally due to equal temperature demand.
Cold Air Circuit
:
Not active, as no TEMP selector is set in the blue arc.
FANS select 0. Selecting a FAN speed will reduce cabin air temperature.
Cockpit
area
Warm
Cabin
area
Cool
Results
Mixed Bleed Air Circuit :
Warm air is distributed to both the cockpit and cabin. More warm air is directed to the cockpit due
to the greater temperature demand.
Cold Air Circuit :
The cabin TEMP selector is set in the blue arc, resulting in the cabin air conditioning system
supplying the cabin area.
Cockpit FAN : select 0.
Cabin FAN : select 1 or more to circulate the cooled air.
