Daher TBM 930 - Page 628

To Next Page

To Previous Page

Pilot's Operating Handbook

Section 7

Description

Edition 1 - January 15, 2018

Rev. 5

Page 7.10.4

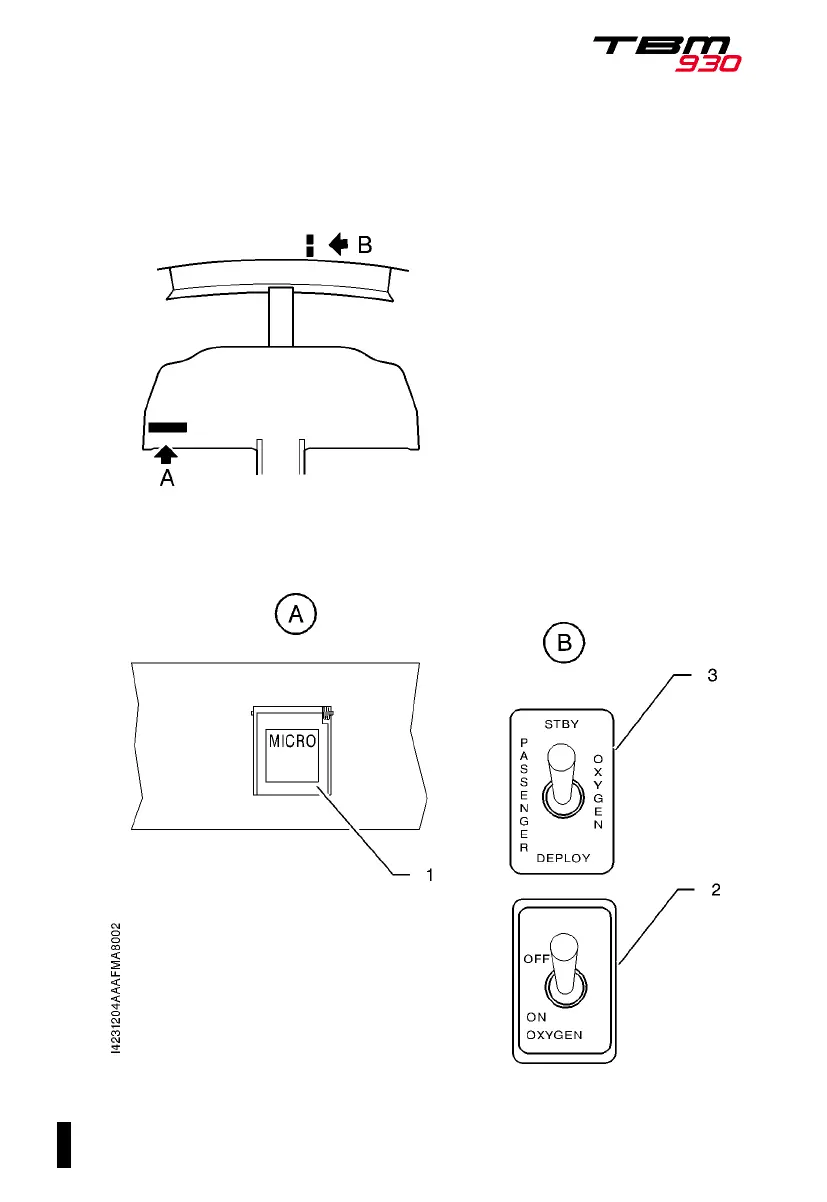

Figure 7.10.1 - Emergency oxygen system

MICRO/MASK

switch

2) OXYGEN switch

3) PASSENGER OXYGEN switch

PIM - DO NOT USE FOR FLIGHT OPERATIONS
