Pilot's Operating Handbook

Supplement 63

Lavatory compartment

Edition 1 - November 16, 2016

Rev. 2

Page 9.63.4

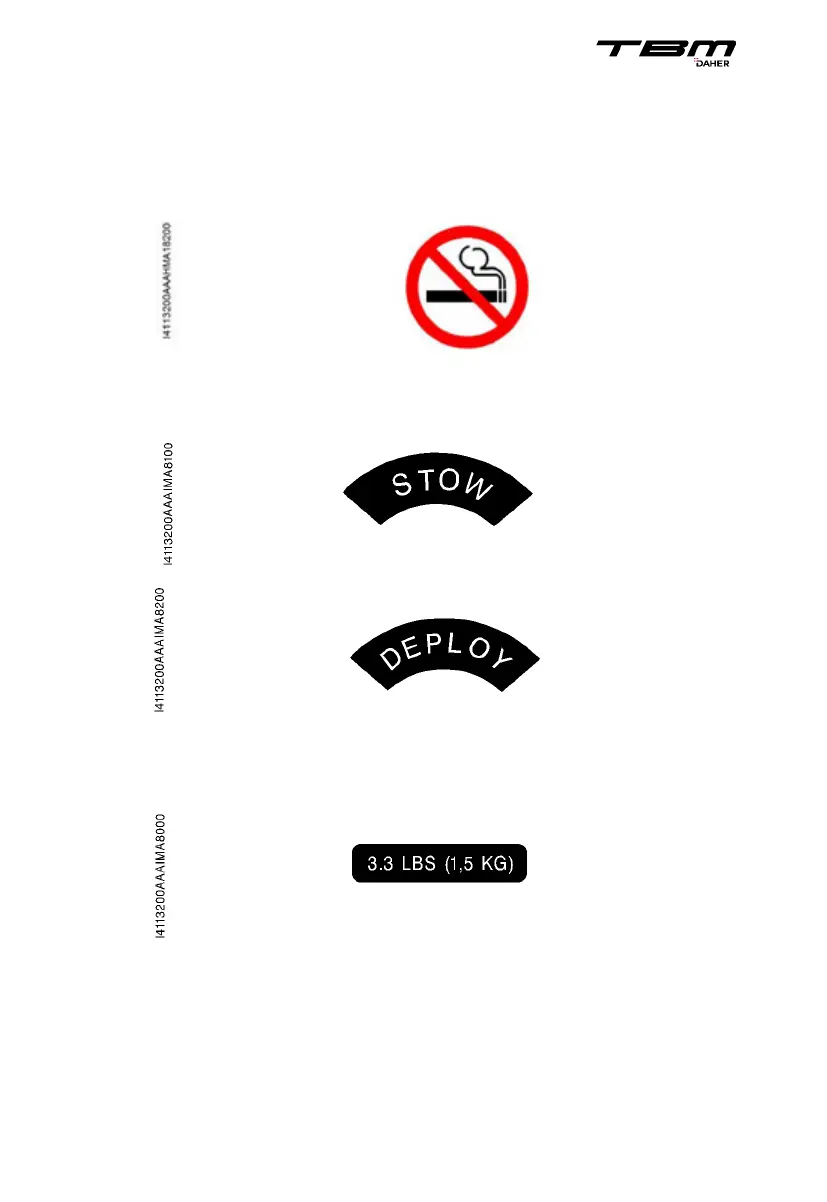

Inner face of toilet cover

Front face of lavatory compartment, near opening/closing switches

On the magazine rack

PIM - DO NOT USE FOR FLIGHT OPERATIONS
