Dahua XVR5116HS User Manual

303

IPC Time Sync: You can input an interval here to synchronize the DVR time and IPC
time.

Navigation bar: Check the box here, system displays the navigation bar on the
interface.

Mouse sensitivity: You can set double click speed via dragging the slide bard. You
can Click Default button to restore default setup.

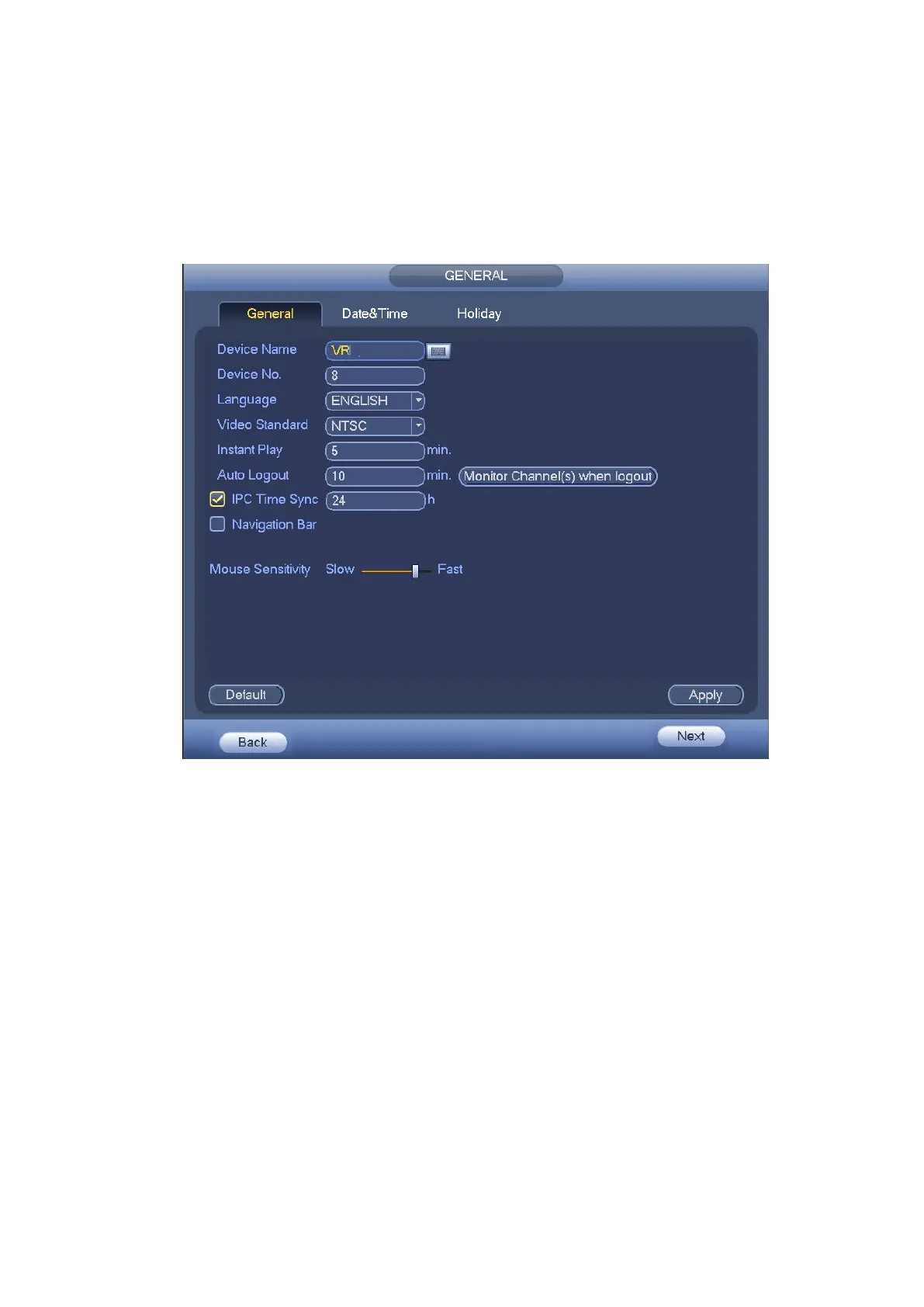

Figure 4- 14
Step 3 Click Apply or Save to complete setup.
4.1.4.1.2Date and Time
Step 1 Click Date and Time tab.
Enter date and time interface. See Figure 4- 15.
Step 2 Set parameters.

Date format: There are three types: YYYYY-MM-DD: MM-DD-YYYYY or
DD-MM-YYYY.

Date separator: There are three denotations to separate date: dot, beeline and
solidus.

DST: Here you can set DST time and date. Here you can set start time and end time
by setting corresponding week setup or by setting corresponding date setup.

NTP: It is to set NTP server information. Check the NTP box to enable this function.

Host IP: Input the server IP that installed the NTP server.

Manual update: Click it, you can sync DVR time with the NTP server manually.

Dahua XVR5116HS Specifications

General

USB Interface	2 USB 2.0 ports
Power Supply	DC 12V/2A
Video Output	1 HDMI, 1 VGA
Operating System	Embedded Linux
Video Compression	H.264+/H.264
Analog Camera Input	16 channel, BNC
IP Camera Input	Up to 16 channels
Audio In/Out	1/1, RCA
Display Resolution	1920 × 1080, 1280 × 1024, 1280 × 720
Network Interface	1 RJ-45 Port (10/100 Mbps)
HDD	1 SATA port, up to 6 TB
Dimensions	260 mm × 238 mm × 48 mm (W × D × H)
Smart Functions	SMD Plus
VGA Output	1920 × 1080, 1280 × 1024, 1280 × 720
Operating Temperature	-10°C to +55°C
Operating Humidity	10%–90% (RH), non-condensing
