Dahua XVR5116HS User Manual

304

Port: System supports TCP transmission only. The port value is 123.

Interval: It is to set the sync time interval between the DVR and the NTP server. The
value ranges from 0 to 65535 minutes.

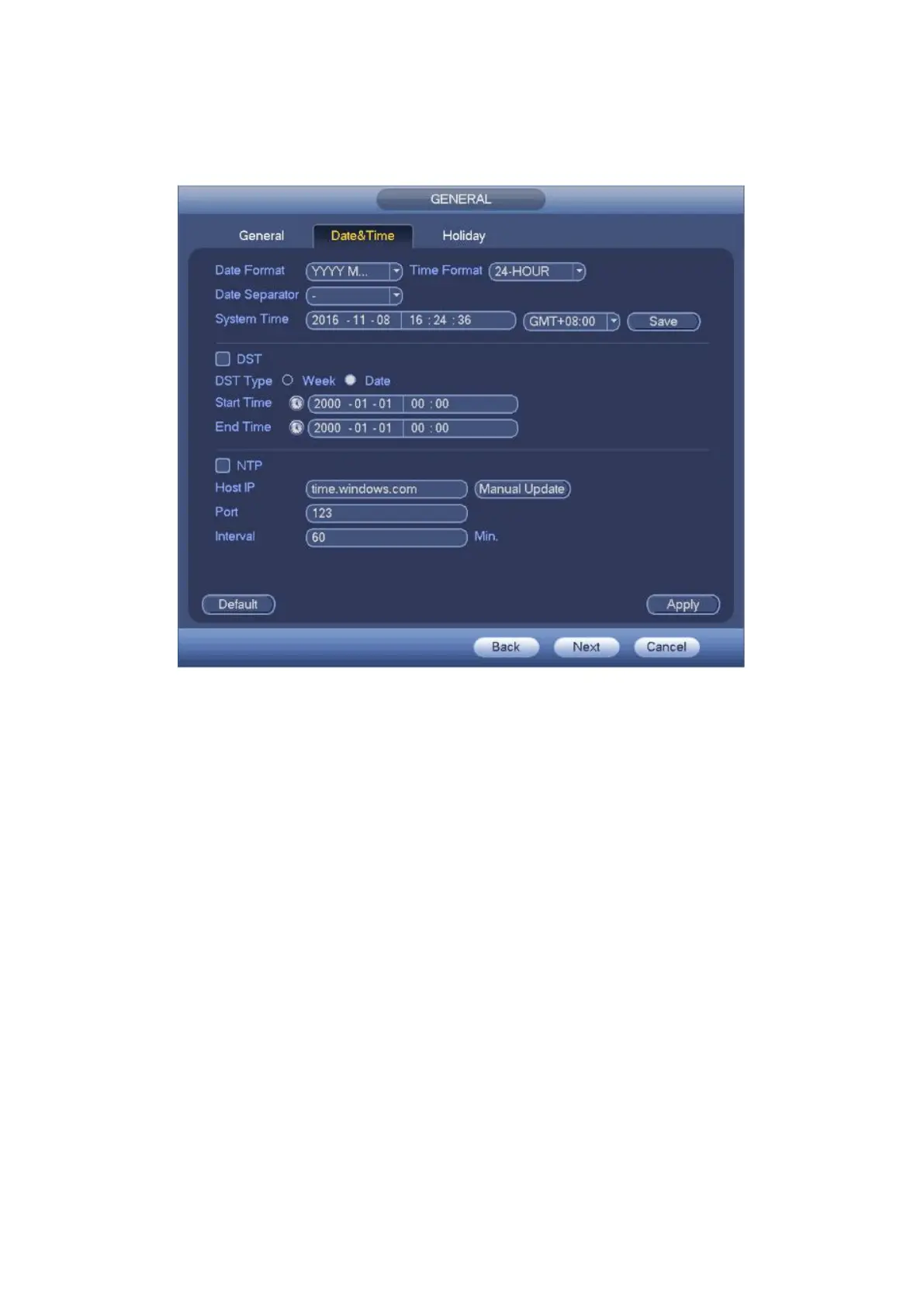

Figure 4- 15
Step 3 Click Apply or Save to complete setup.
4.1.4.1.3Holiday
Step 1 Click Holiday tab.
Enter holiday interface. See Figure 4- 16.

Dahua XVR5116HS Specifications

General

USB Interface	2 USB 2.0 ports
Power Supply	DC 12V/2A
Video Output	1 HDMI, 1 VGA
Operating System	Embedded Linux
Video Compression	H.264+/H.264
Analog Camera Input	16 channel, BNC
IP Camera Input	Up to 16 channels
Audio In/Out	1/1, RCA
Display Resolution	1920 × 1080, 1280 × 1024, 1280 × 720
Network Interface	1 RJ-45 Port (10/100 Mbps)
HDD	1 SATA port, up to 6 TB
Dimensions	260 mm × 238 mm × 48 mm (W × D × H)
Smart Functions	SMD Plus
VGA Output	1920 × 1080, 1280 × 1024, 1280 × 720
Operating Temperature	-10°C to +55°C
Operating Humidity	10%–90% (RH), non-condensing
