Dahua XVR5116HS User Manual

339

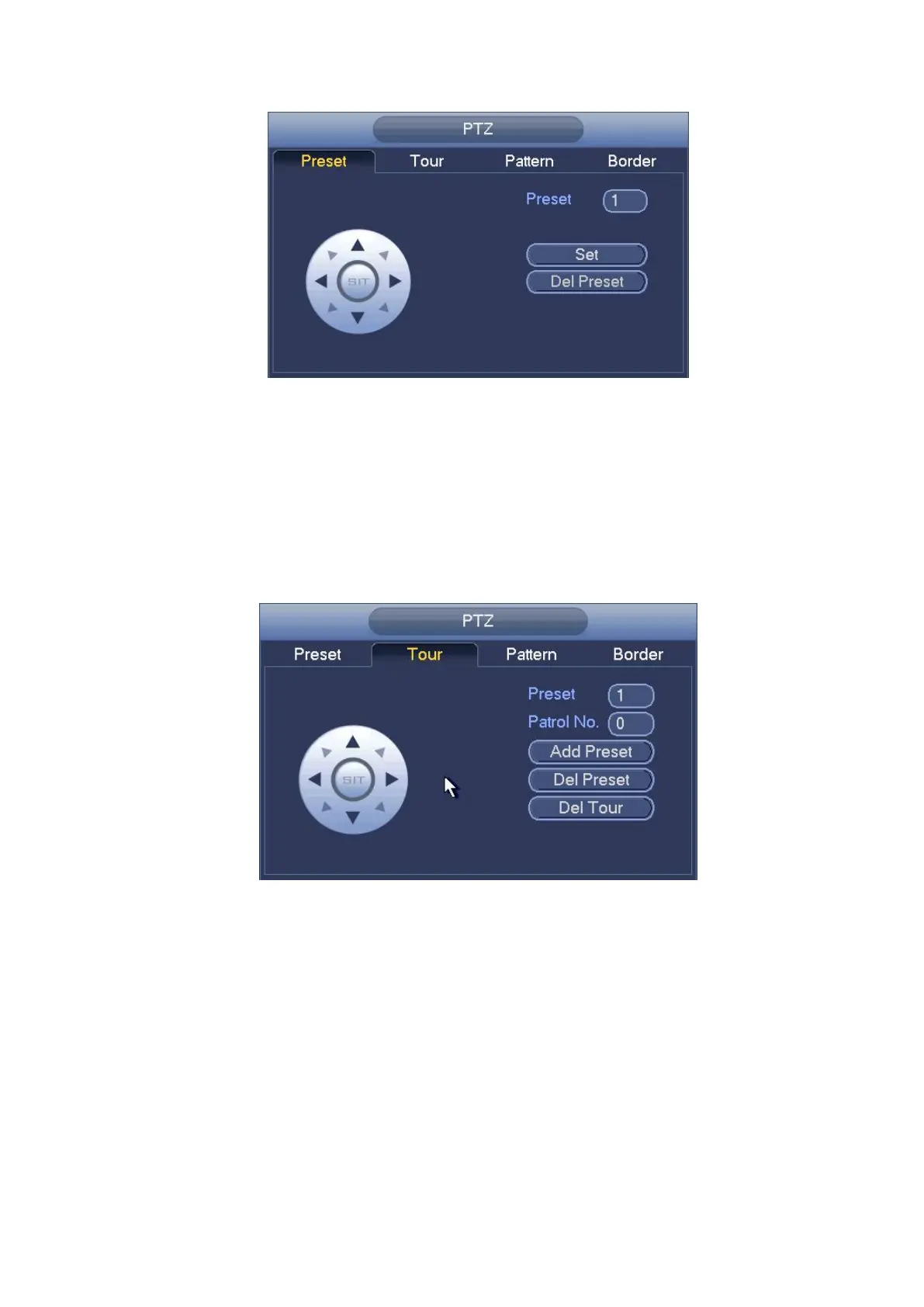

Figure 4- 58
Tour Setup
In Figure 4- 57, click tour button.
Input tour value and preset No. Click Add preset button to add current preset to the tour.
See Figure 4- 59.
Tips
Repeat the above steps to add more presets to the tour. Click Del preset button to remove
it from the tour. Please note some protocols do not support delete preset function.
Figure 4- 59
Pattern Setup
In Figure 4- 57, click Pattern button and input pattern number.
Click Begin button to start direction operation. Or you can go back to Figure 4- 54 to
operate zoom/focus/iris/direction operation.
In Figure 4- 57, click End button.

Dahua XVR5116HS Specifications

General

USB Interface	2 USB 2.0 ports
Power Supply	DC 12V/2A
Video Output	1 HDMI, 1 VGA
Operating System	Embedded Linux
Video Compression	H.264+/H.264
Analog Camera Input	16 channel, BNC
IP Camera Input	Up to 16 channels
Audio In/Out	1/1, RCA
Display Resolution	1920 × 1080, 1280 × 1024, 1280 × 720
Network Interface	1 RJ-45 Port (10/100 Mbps)
HDD	1 SATA port, up to 6 TB
Dimensions	260 mm × 238 mm × 48 mm (W × D × H)
Smart Functions	SMD Plus
VGA Output	1920 × 1080, 1280 × 1024, 1280 × 720
Operating Temperature	-10°C to +55°C
Operating Humidity	10%–90% (RH), non-condensing
