Dahua XVR5116HS User Manual

398

UPnP on/off: Turn on or off the UPnP function of the device.

Status: When the UPnP is offline, it shows as “Unknown”. When the UPnP works it
shows “Success”

Router LAN IP: It is the router IP in the LAN.

WAN IP: It is the router IP in the WAN.

Port Mapping list: The port mapping list here is the one to one relationship with the
router’s port mapping setting.

List:
 Service name:Defined by user.
 Protocol: Protocol type
 Internal port:Port that has been mapped in the router.
 External port:Port that has been mapped locally.

Default: UPnP default port setting is the HTTP, TCP and UDP of the DVR.

Add to the list: Click it to add the mapping relationship.

Delete: Click it to remove one mapping item.
Double click one item; you can change the corresponding mapping information. See
Figure 4- 128.
Important:
When you are setting the router external port, please use 1024~5000 port. Do not
use well-known port 1~255 and the system port 256~1023 to avoid conflict.
For the TCP and UDP, please make sure the internal port and external port are the
same to guarantee the proper data transmission.

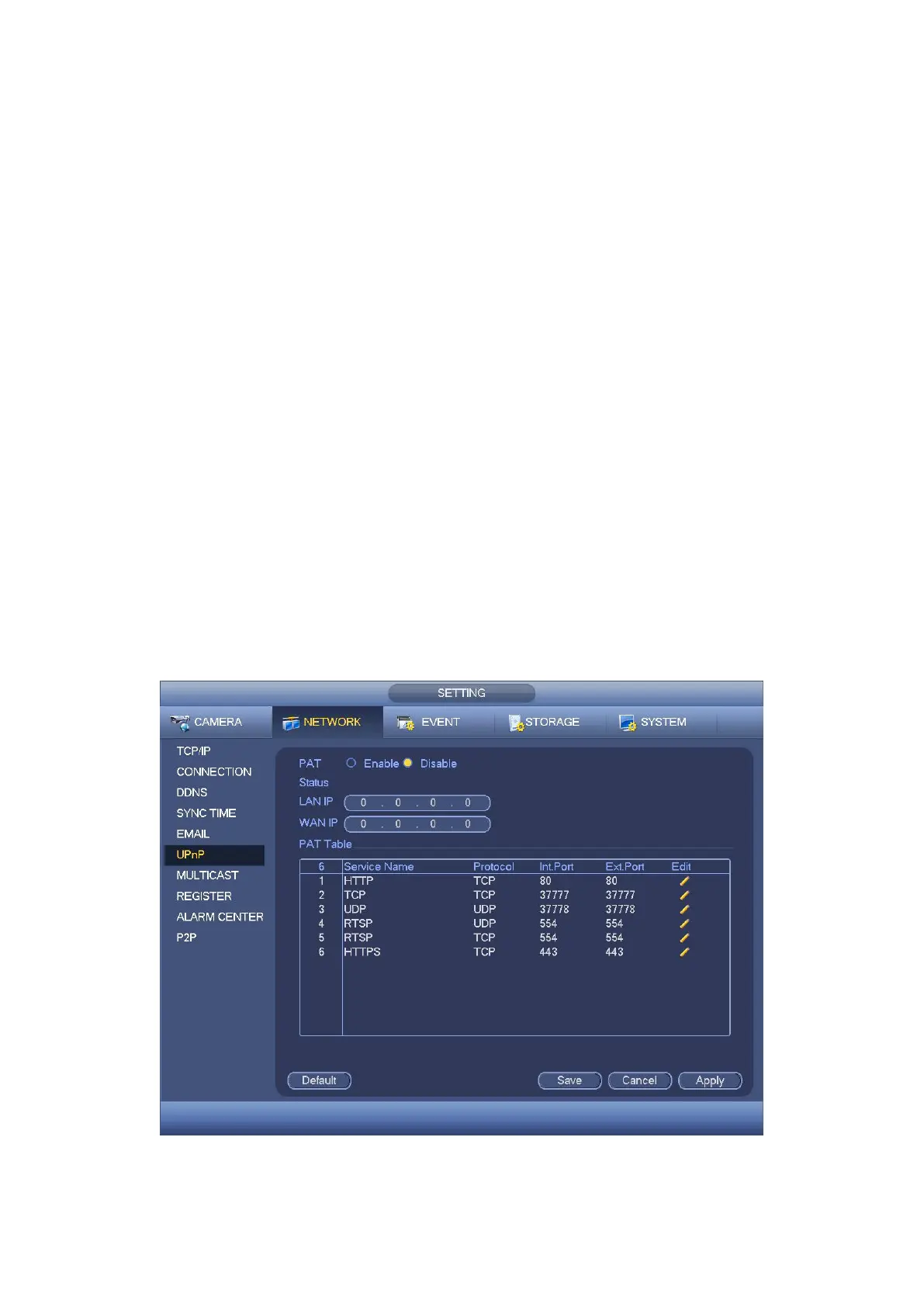

Figure 4- 127

Dahua XVR5116HS Specifications

General

USB Interface	2 USB 2.0 ports
Power Supply	DC 12V/2A
Video Output	1 HDMI, 1 VGA
Operating System	Embedded Linux
Video Compression	H.264+/H.264
Analog Camera Input	16 channel, BNC
IP Camera Input	Up to 16 channels
Audio In/Out	1/1, RCA
Display Resolution	1920 × 1080, 1280 × 1024, 1280 × 720
Network Interface	1 RJ-45 Port (10/100 Mbps)
HDD	1 SATA port, up to 6 TB
Dimensions	260 mm × 238 mm × 48 mm (W × D × H)
Smart Functions	SMD Plus
VGA Output	1920 × 1080, 1280 × 1024, 1280 × 720
Operating Temperature	-10°C to +55°C
Operating Humidity	10%–90% (RH), non-condensing
