Dahua XVR5116HS User Manual

399

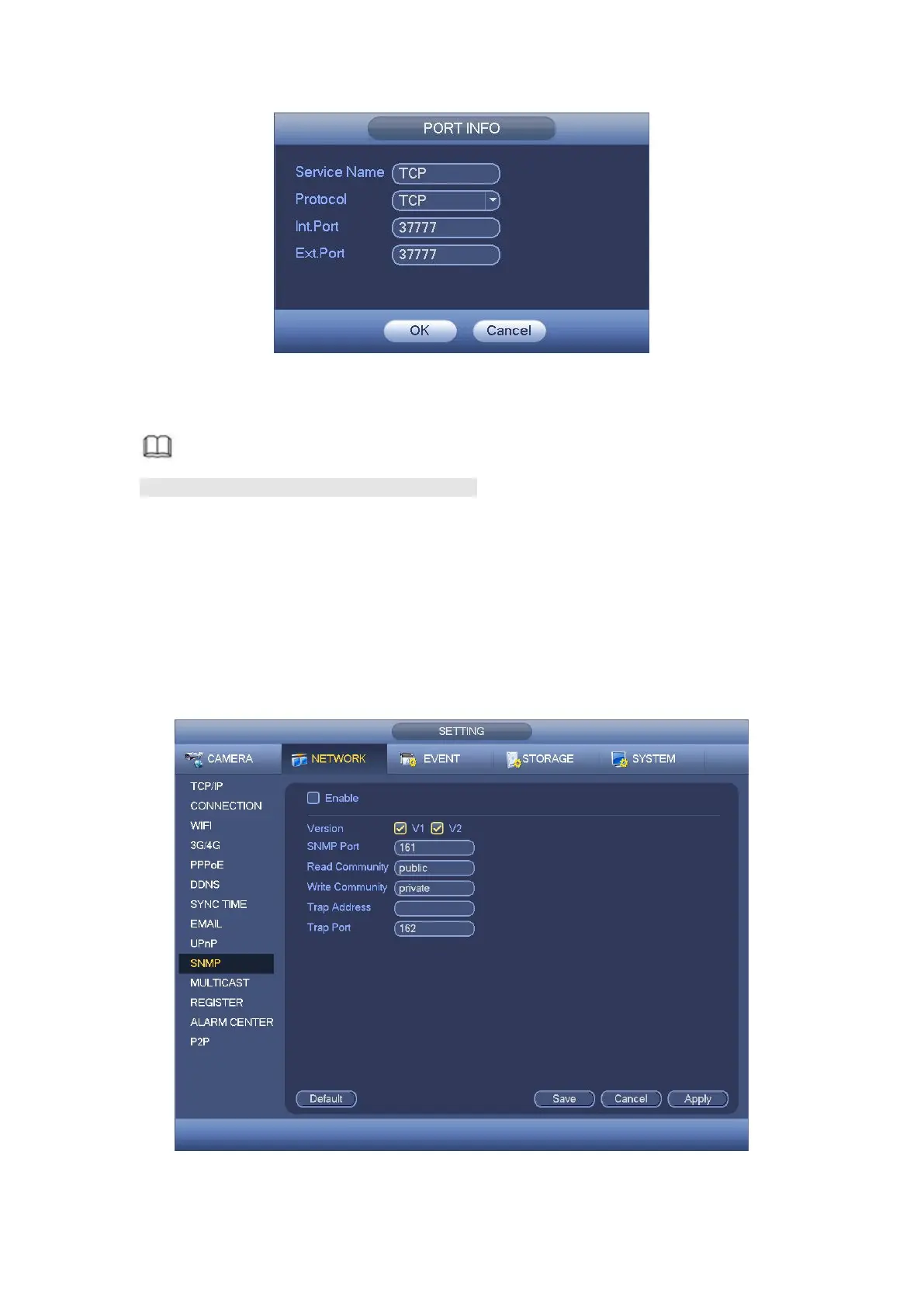

Figure 4- 128
4.9.2.10 SNMP
Note
This function is for some series products only.
SNMP is an abbreviation of Simple Network Management Protocol. It provides the basic
network management frame of the network management system. The SNMP widely used
in many environments. It is used in many network device, software and system.
Preparation

Install corresponding software tool such as MIB Builder and MG-SOFT MIB Browser.

Contact technical engineer to get two MIB files of the current version.
Step 1 From main menu->Setting->Network->SNMP.
Enter SNMP interface. See Figure 4- 129.
Figure 4- 129

Dahua XVR5116HS Specifications

General

USB Interface	2 USB 2.0 ports
Power Supply	DC 12V/2A
Video Output	1 HDMI, 1 VGA
Operating System	Embedded Linux
Video Compression	H.264+/H.264
Analog Camera Input	16 channel, BNC
IP Camera Input	Up to 16 channels
Audio In/Out	1/1, RCA
Display Resolution	1920 × 1080, 1280 × 1024, 1280 × 720
Network Interface	1 RJ-45 Port (10/100 Mbps)
HDD	1 SATA port, up to 6 TB
Dimensions	260 mm × 238 mm × 48 mm (W × D × H)
Smart Functions	SMD Plus
VGA Output	1920 × 1080, 1280 × 1024, 1280 × 720
Operating Temperature	-10°C to +55°C
Operating Humidity	10%–90% (RH), non-condensing
