Dahua XVR5116HS User Manual

446

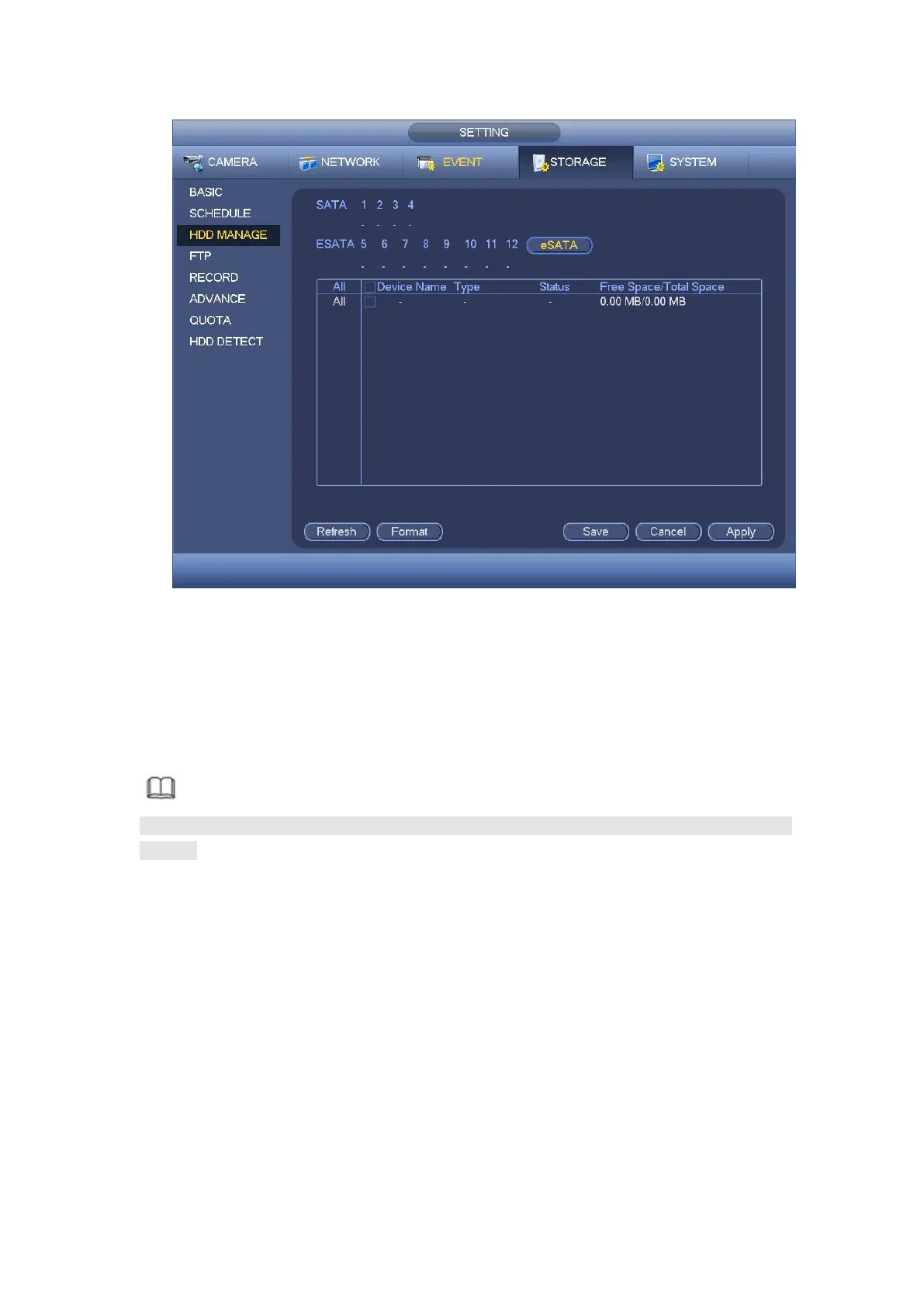

Figure 4- 183
4.9.4.3 FTP
It is to backup record file or image to the FTP to storage or view.
Before the operation, please download or purchase the FTP service tool and install on the
PC.
Note
For the FTP user, please set FTP folder write right, otherwise system cannot upload the
image.
Step 1 From main menu->Setting->Storage->FTP, enter FTP interface. See Figure
4-184.
Step 2 Set parameters.
Here you can input FTP server address, port and remote directory. When remote directory
is null, system automatically create folders according to the IP, time and channel.

Host IP: The host IP you have installed the FTP server.

Host port: The default setup is 21.

User name/Password: The account for you to access the FTP server.

Remote directory: The folder you created under the root path of the FTP according to
the corresponding rule.
 If there is no remote directory, system can auto create different directories
according to the IP, time and channel.
 If there is remote directory, system can create corresponding folder under the

Dahua XVR5116HS Specifications

General

USB Interface	2 USB 2.0 ports
Power Supply	DC 12V/2A
Video Output	1 HDMI, 1 VGA
Operating System	Embedded Linux
Video Compression	H.264+/H.264
Analog Camera Input	16 channel, BNC
IP Camera Input	Up to 16 channels
Audio In/Out	1/1, RCA
Display Resolution	1920 × 1080, 1280 × 1024, 1280 × 720
Network Interface	1 RJ-45 Port (10/100 Mbps)
HDD	1 SATA port, up to 6 TB
Dimensions	260 mm × 238 mm × 48 mm (W × D × H)
Smart Functions	SMD Plus
VGA Output	1920 × 1080, 1280 × 1024, 1280 × 720
Operating Temperature	-10°C to +55°C
Operating Humidity	10%–90% (RH), non-condensing
